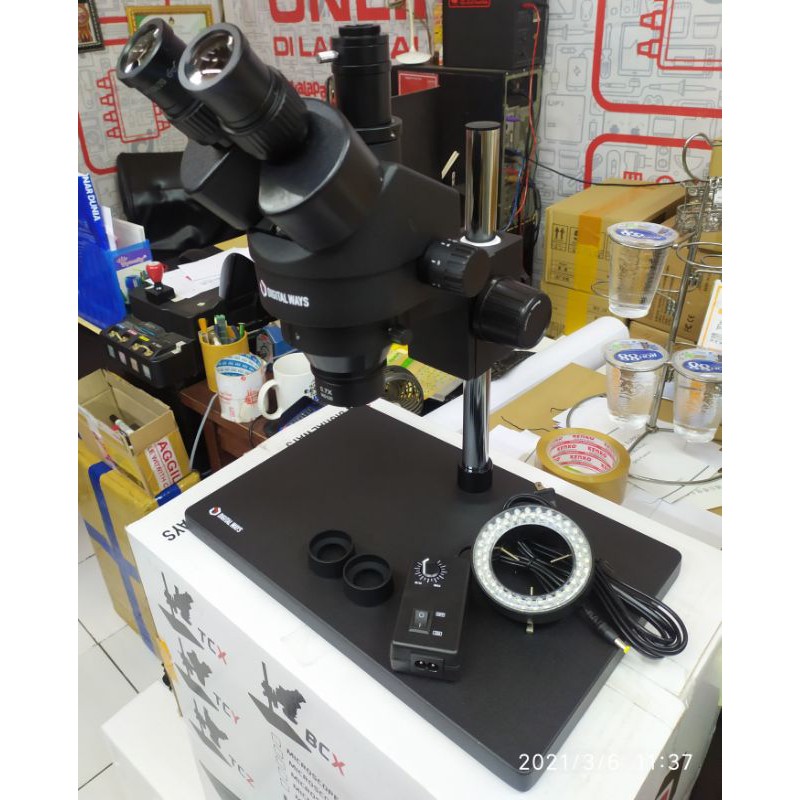

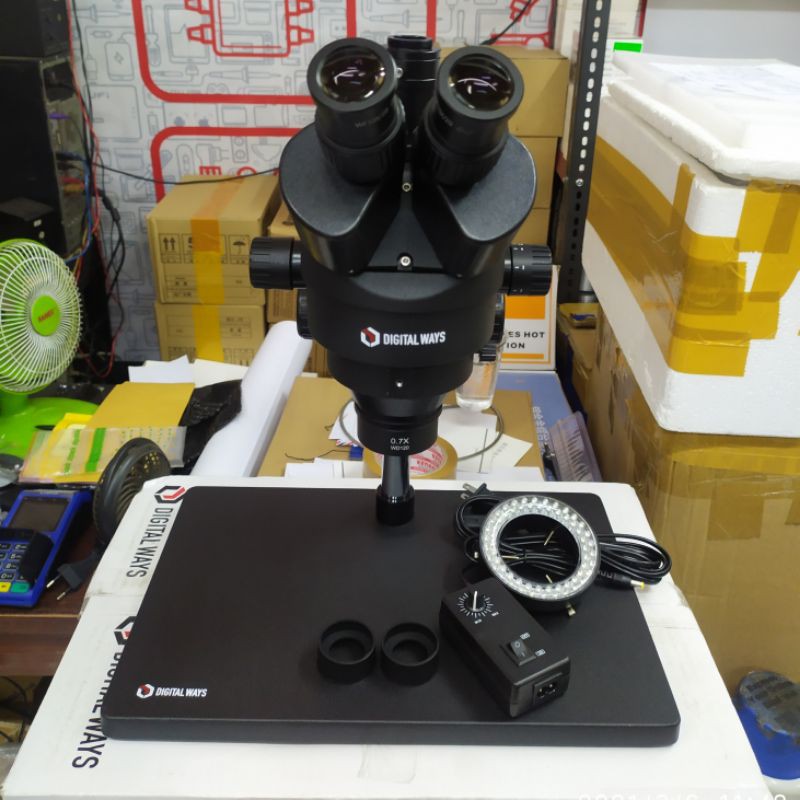

MICROSCOPE TRINOCULER / DIGITAL WAYS DW-TCX BLACK EDITION

Detail MICROSCOPE TRINOCULER / DIGITAL WAYS DW-TCX BLACK EDITION

Pembesaran lebih besar (hingga 8X-50X) dan gambar lebih jernih..
Jadi makin enak untuk service karena jarak yang dibutuhkan lebih jauh, jadi tangan akan lebih leluasa bergerak..
Fitur lampu yang sudah built-in akan memudahkan pemasangan.

*Silahkan di check untuk Fitur lengkapnya disini
*Feature:*
* Magnification: Standard configuration: 8X-50X, optional eyepiece and auxiliary objective to expand 4X-300X, continuous zoom.
* Eyepiece: standard configuration: 10X/22mm, large field of view flat field eyepiece, adjustable reading and reading
* Optional eyepiece: 10X/22mm, 15X/16mm, 20X/12mm, 30X/8mm
* Observation head: 45° tilt, 360° rotation, the distance adjustment range is 52-75mm, and the bilateral visibility is plus or minus 5. Hinged binocular or trinocular.
* Objective lens: 0.8X-5.0X continuous zoom, objective lens zoom ratio 6.3:1 to ensure image surface parfocality
* Auxiliary objective: optional 0.5X, 2.0X
* Base: 270*360mm
* Lighting: reflected light, transmitted light LED
* Trinocular interface: with CTV, can be connected to ordinary cameras, digital cameras, industrial cameras, CCD

*Specification:*
* Head: 360 degree rotatable 45 degree inclined binocular

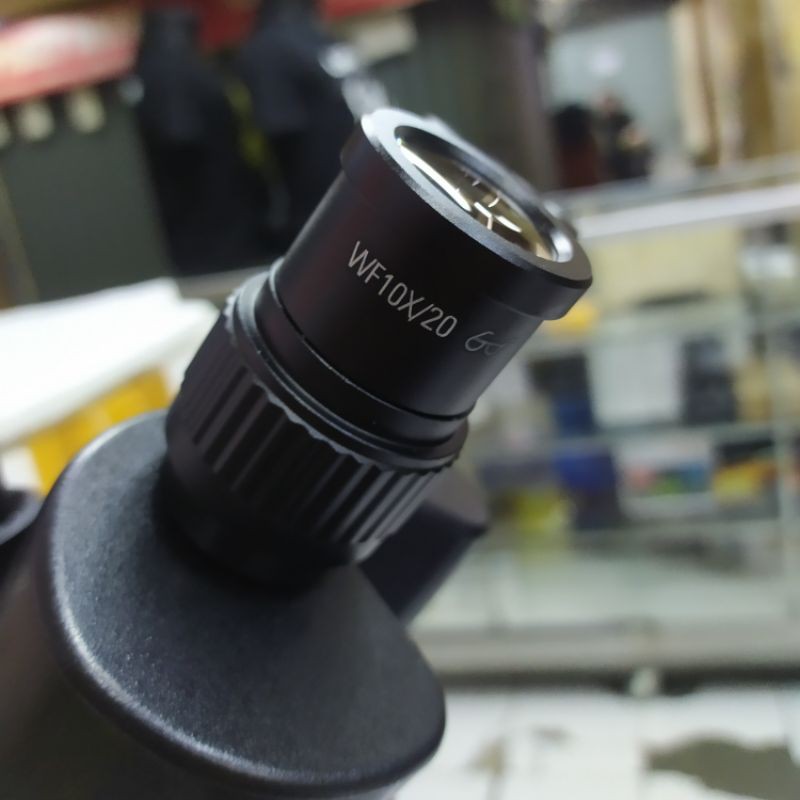

* Eyepieces: 30mm super widefield high-eyepoint WF10X/20MM
* Objective Zoom Range: 0.7X-4.5X, using the Barlow lenses
* Working Distance: 4" (100mm)
* Diopter Adjustment: +/- 6dp
* Interpupillary Distance: 2-3/16" - 2-15/16"(55-75mm)
* Round Plate: 3-3/4" (95mm) in diameter
* Stand: 13" x 7-7/9" x 15.75" (280 x 220 x 300mm)
* Illumination: 58-LED Ring Light
* Power Input: 110-240V, 50-60HZ, Automatic Switching
* Accessories: Paired eye-caps
