Microphone Sound Sensor Sensitivity Sound Detection Module For Arduino

Elektronik > Perangkat Audio & Speaker > Mikrofon & Aksesoris > Microphone Sound Sensor Sensitivity Sound Detection Module For Arduino
Tersedia
Periksa harganya...
Lihat tempat menjual
Toko:arduinounoLihat semua produk Audio oleh arduinouno
  • Pengiriman Ekspres
  • Barang yang diperiksa
  • Bayar di tempat berlaku
  • Kualitas, Prestise
  • Pengembalian produk
  • Dukung pembuatan faktur
DeskripsiSpesifikasi

Detail Microphone Sound Sensor Sensitivity Sound Detection Module For Arduino

1. Size:45mm*20mm*10mm(length*width*height)

2. Main chip:LM393, Electret condenser microphone.

3. Working voltage:DC 3.3-5V



Features:
1. signal output indication

2. single channel signal output.

3. the output effective signal is low level.

4. when there is sound,outputs low level and the signal light

5. can be used for Acoustic control light , give sound and light alarm working with Photosensitive sensor ,and sound control,sound detect.

6. Circuit board output switch quantity.

Gambar produk

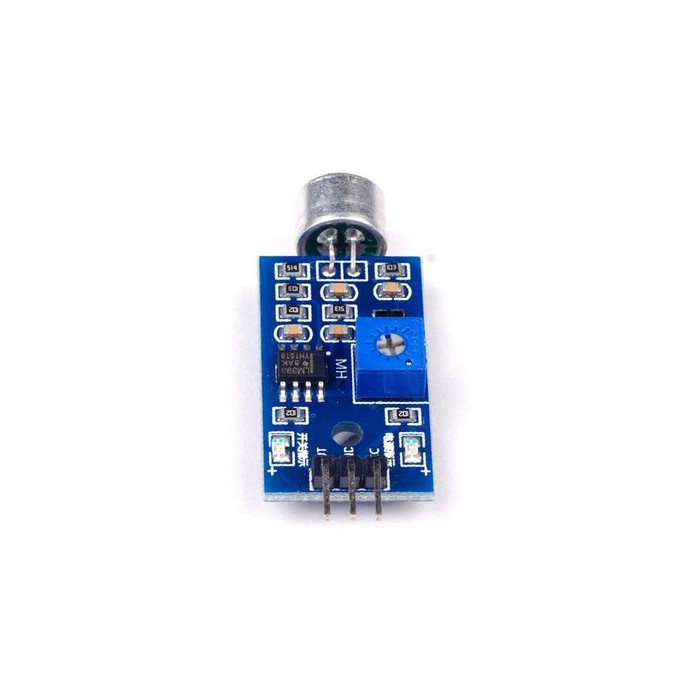

Microphone Sound Sensor Sensitivity Sound Detection Module For Arduino

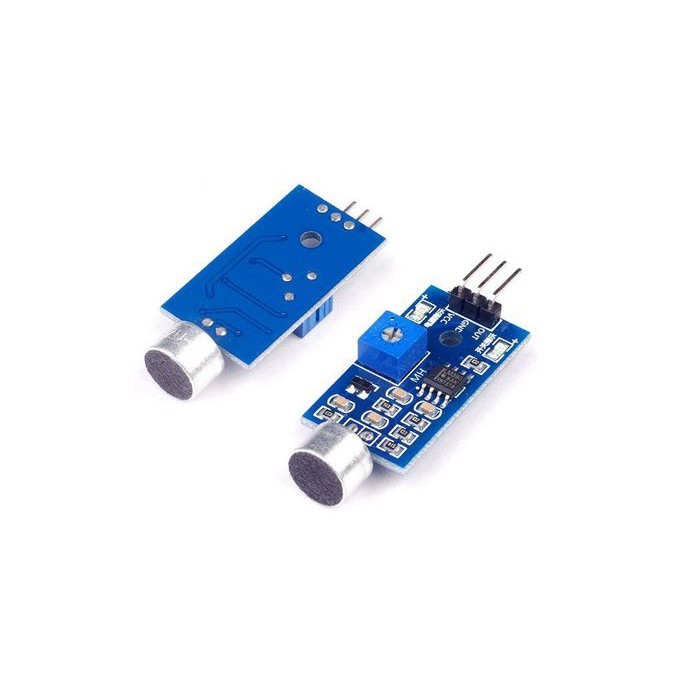

Microphone Sound Sensor Sensitivity Sound Detection Module For Arduino

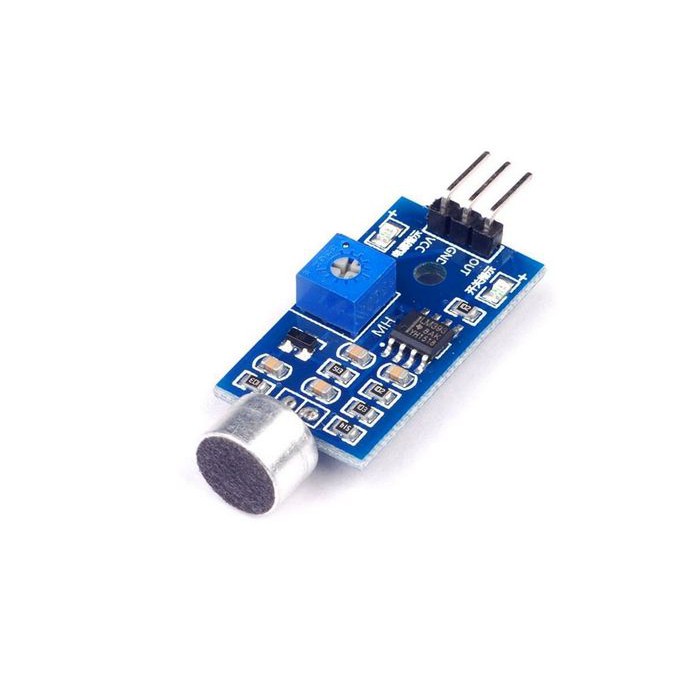

Microphone Sound Sensor Sensitivity Sound Detection Module For Arduino
