MICROPHONE MIC WIRELESS MIKROPON MIK TANPA KABEL SOUNDCREST SCU-78 ORIGINAL ORI BAGUS TERLARIS TERBAIK GARANSI

Detail MICROPHONE MIC WIRELESS MIKROPON MIK TANPA KABEL SOUNDCREST SCU-78 ORIGINAL ORI BAGUS TERLARIS TERBAIK GARANSI

MICROPHONE MIC WIRELESS MIKROPON MIK TANPA KABEL SOUNDCREST SCU-78 ORIGINAL ORI BAGUS TERLARIS TERBAIK GARANSI

SPESIFIKASI
MEREK - SOUNDCREST
TIPE - SCU-78


RECEIVER
CARRIER WAVE FREQUENCY RANGE - UHF 500 - 950 MHz
OSCILLATION MODE - PHASE LOCKED LOOP CONTROLLED
CARRIER WAVE STABILITY - 10 PPM
SENSITIVITY - -105 dB @ SINAD - 12dB
S/N RATIO ? > 105dB
THD - <0.5% @ 1KHz
IMAGE REJECTION - 85 dB TYPICAL
SPOURIOUS REJECTION - 75 dB TYPICAL
WORKING DISTANCE - 200 FEET / 75 METER
SQUELCH CONTROL - DUAL SQUELCH CIRCUIT
AF OUTPUT IMPEDANCE - 2.2KΩ
MAX OUTPUT LEVEL
- BALANCE - 0 - 400 MV
- UNBALANCE - 0-200 MV
DISPLAY - LCD
POWER SUPPLY - EXTERNAL DC POWER SUPPLY 500mA / 600mA 12-18 VDC
OUTPUT CONNECTOR - 2 x XLR BALANCE SOCKET, UNBALANCE TRs 6.36 SOCKET
DIMENSI - PANJANG 410 MM / TINGGI 43 MM / LEBAR 170 MM
BERAT - 1.34 KG

TRANSMITTER
RF OUTPUT POWER - 30mW
SUPORIOUS EMISSION : <40dB (WITH CARRIER)
DISPLAY - LCD
BATTERY VOLTAGE - 1.5V x 2
BATTERY LIFE - 8 HOURS
HOUSING CONSTRUCTION - METAL

BODYPACK
RF OUTPUT POWER - 30mW
SUPUROUS EMISSION : <40dB (WITH CARRIER)
BAATTERY VOLTAGE - 15V x 2
BATTERY LIFE - 8 HOURS

KELENGKAPAN PRODUK
MICROPHONE WIRELESS SOUNDCREST - 2 PCS
RECEIVER WIRELESS SOUNDCREST - 1 PCS
AC POWER ADAPTER RECEIVER - 1 PCS
KABEL JACK AKAI TO JACK AKAI - 1 PCS
BATERAI A2 - 4 PCS
BUKU PETUNJUK - 1 PCS
KARTU GARANSI - 1 PCS


PASTIKAN PRODUK ORIGINAL SOUNDCREST DILENGKAPI 1 TAHUN TANPA TAMBAHAN BIAYA APAPUN HANYA DI RUDY PERDANA ELECTRONIC

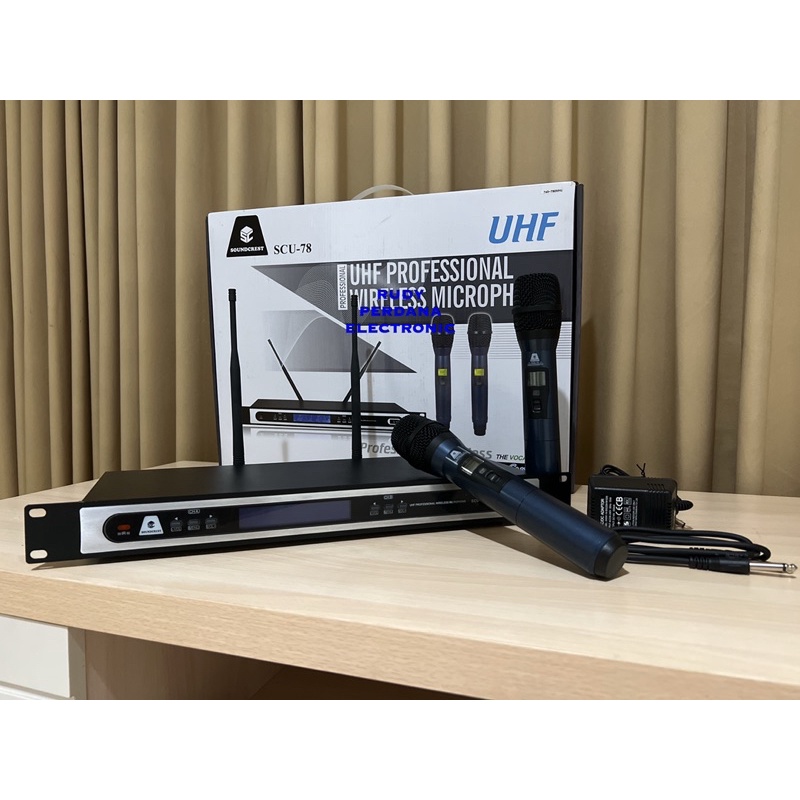

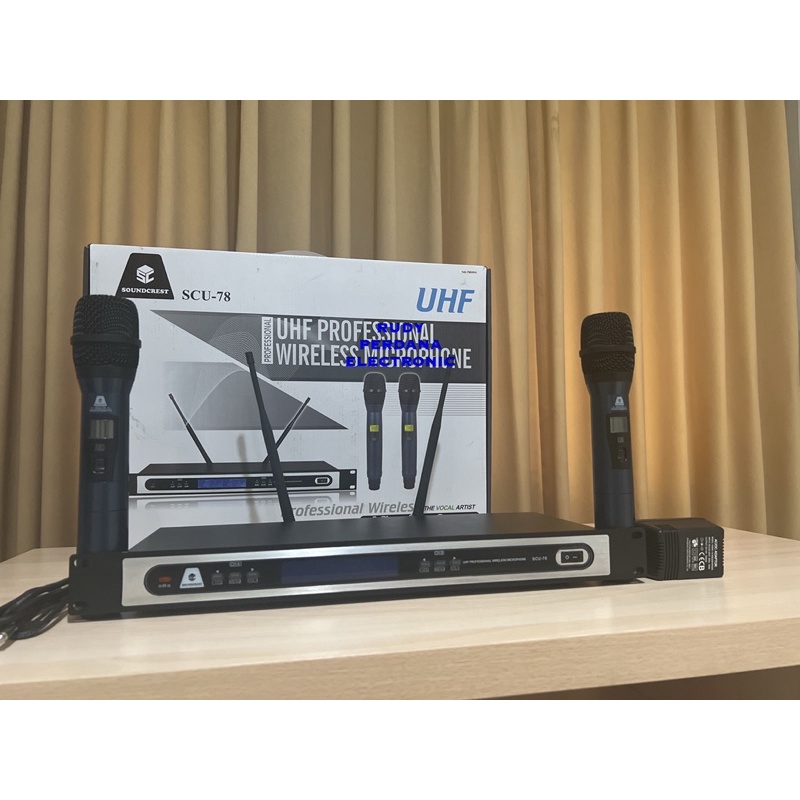

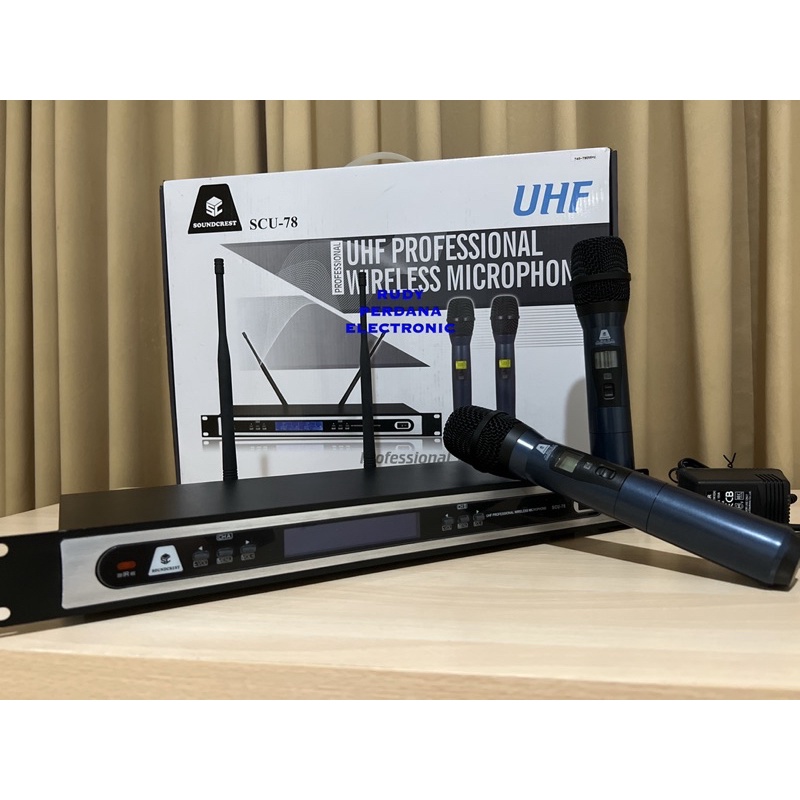

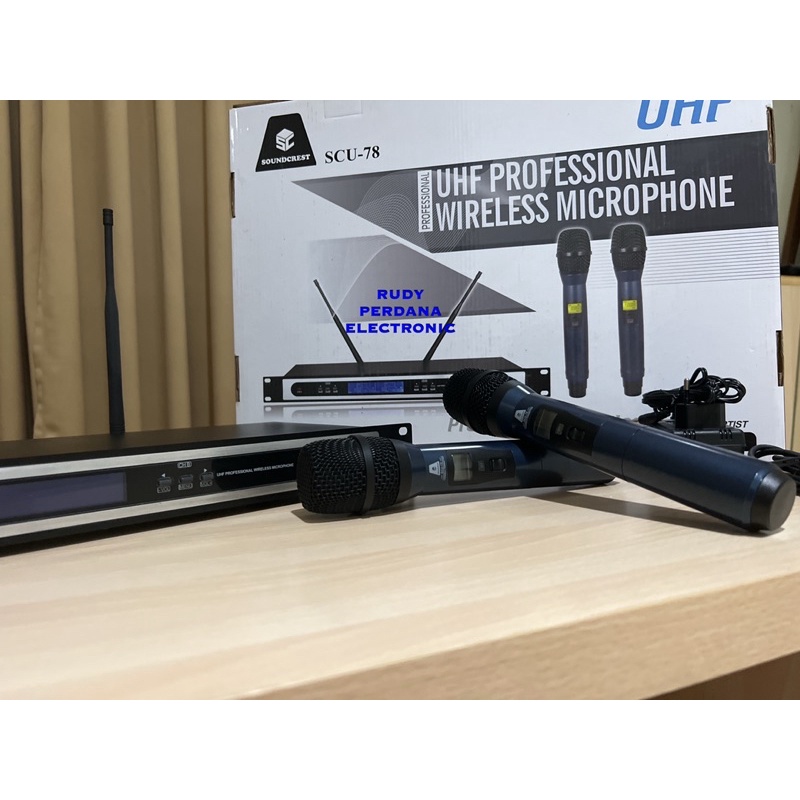

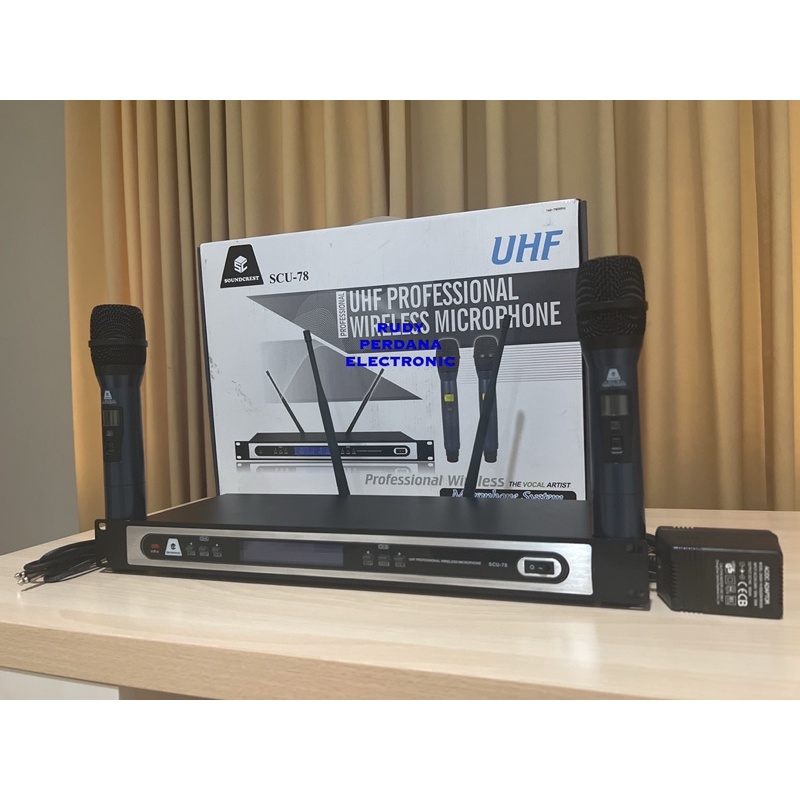

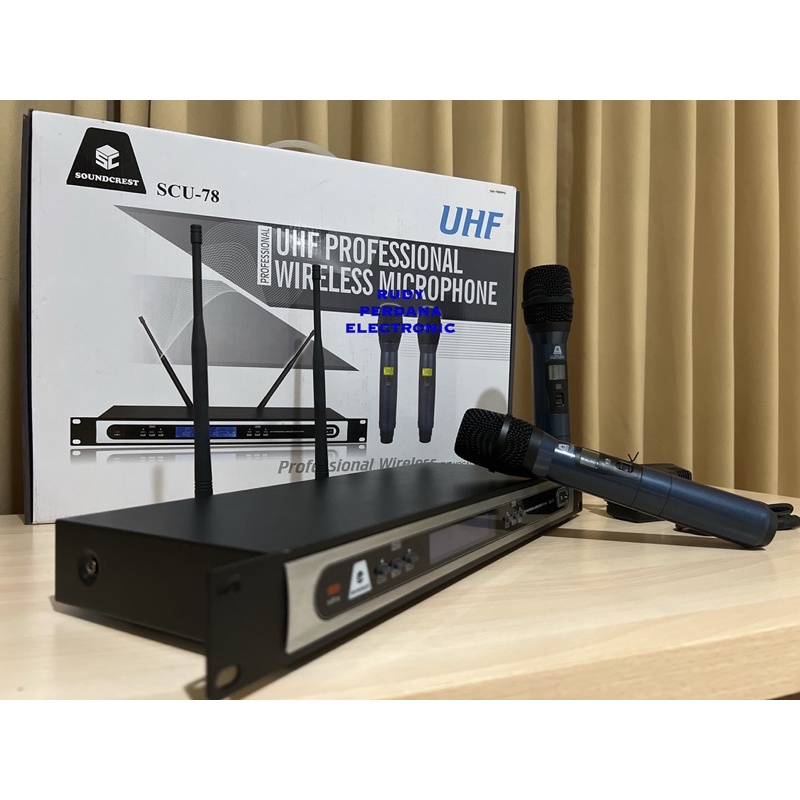

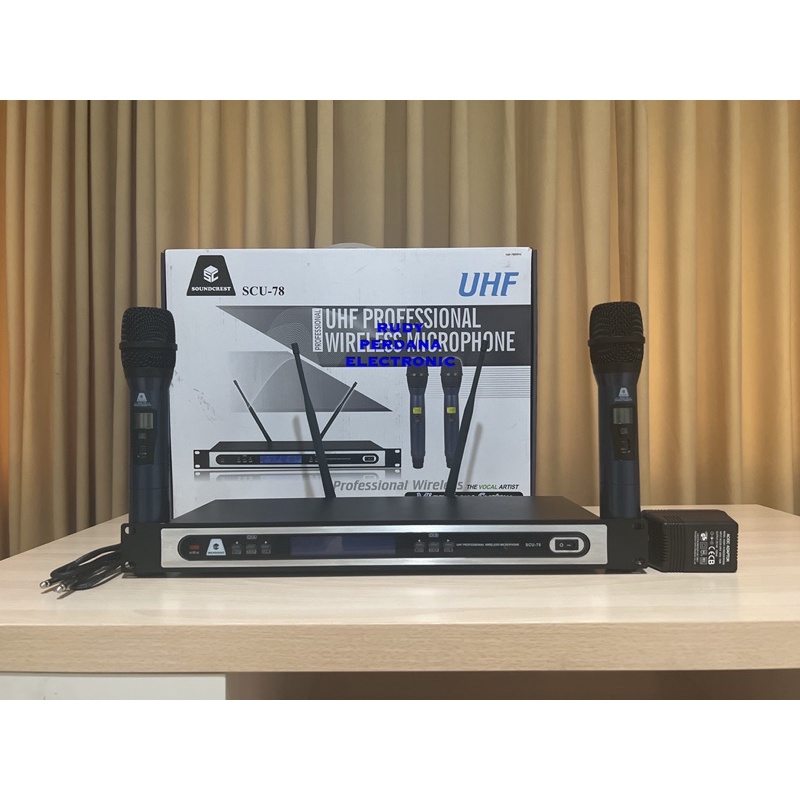

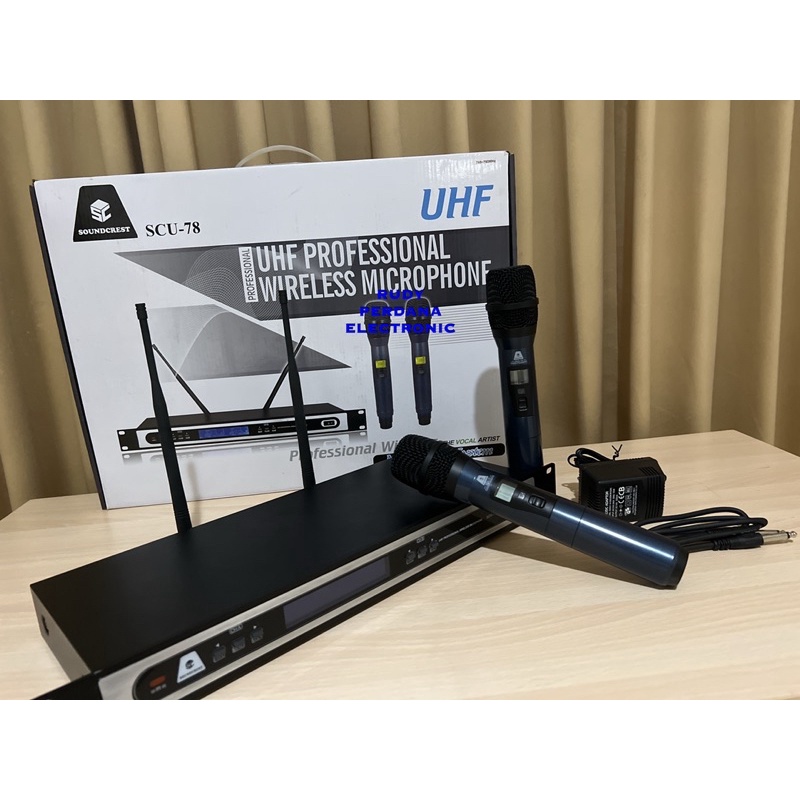

Gambar produk
