Microphone Meja Wireless DUSENBERG CONFER 2 + Bisa Ubah freguency

Detail Microphone Meja Wireless DUSENBERG CONFER 2 + Bisa Ubah freguency

Confer 2+ plus
*1 reciver UHF Ptl freguency
*2 mic Conference podiom
*2 antena digital
*4 baterai A2
*4 busa microphone
Kartu garansi resmi
Buku panduan
Garansi resmi 2 tahun

8. Product parameters and comprehensive performance indicators
8.1 Receiver parameters
Shock mode: quartz crystal oscillation
Frequency range: UHF700MHz-790MHZ
UHF800MHZ-890MHz VHF200MHz-270MHZ
Frequency stability: +0.001%
Modulation: FM
Signal to noise ratio:> 105dB
Pro frequency interference ratio:> 80dB
Distortion: <0.5 %@1KHz
Sensitivity: 10dBuV @ S /N = 12dB Power supply: DC: 12V-17V
Audio output: independent 0-400mV
Mix 0-300mV
Power: two channels 1W
Four channel 4W
Eight channel 4W
8.3 General parameters
8.2 Transmitter parameters
Power supply: DC2 * 1.5AA/ DC 9V
Microphone power consumption: 100mA/ 30mA
Carrier frequency: UHF700MHz-790MHz
UHF800MHZ-890MHZ
VHF200MHz-270MHZ
Maximum frequency deviation: + 25KHz
Signal to noise ratio:> 105dB
Dynamic range: > 100dB
Type: moving coil / capacitive
Polarity mode: Heart type / single point
Frequency response: 40Hz-20KHz
Microphone sensitivity: -47 + 3dB @ 1KHz
Power: <30mW
Operating frequency: UHF700MHz-790MHz UHF800MHZ-890MHZ
VHF200MH-270MHZ
Modulation: FM
Channel spacing: 500KHz
Frequency stability: + 0.001%
Frequency dynamic range: > 100B
Maximum frequency deviation: + 25KHz
Frequency response: 40Hz-20KHz
Integrated signal to noise ratio:> 105dB
Integrated distortion: <0.5 %@1KHz
Working distance: about 100m (open without interference)
Working environment temperature: -100C-50C
Djijamin Peking aman Sampai tujuan

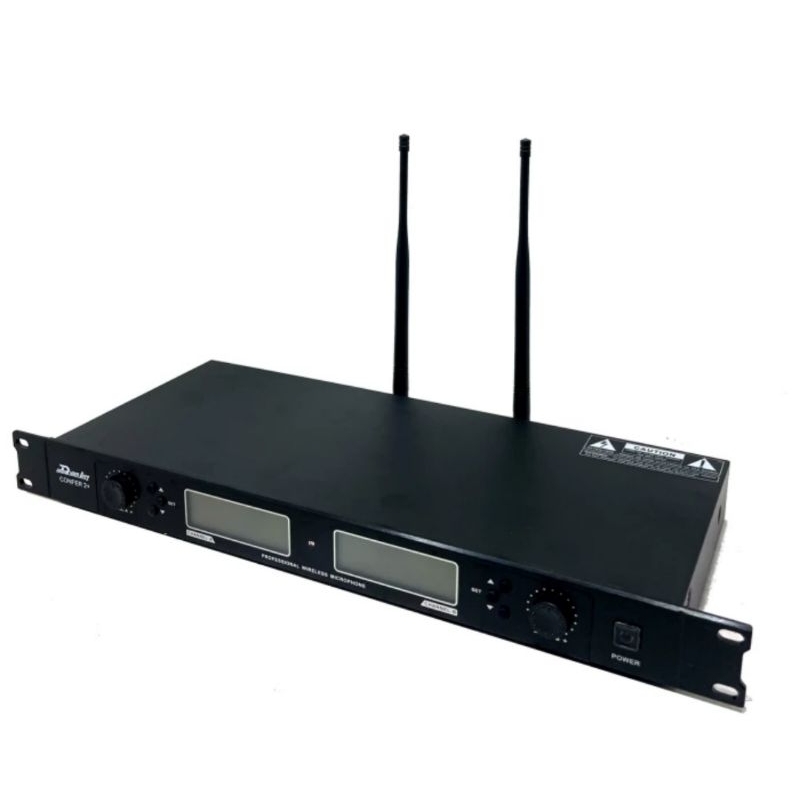

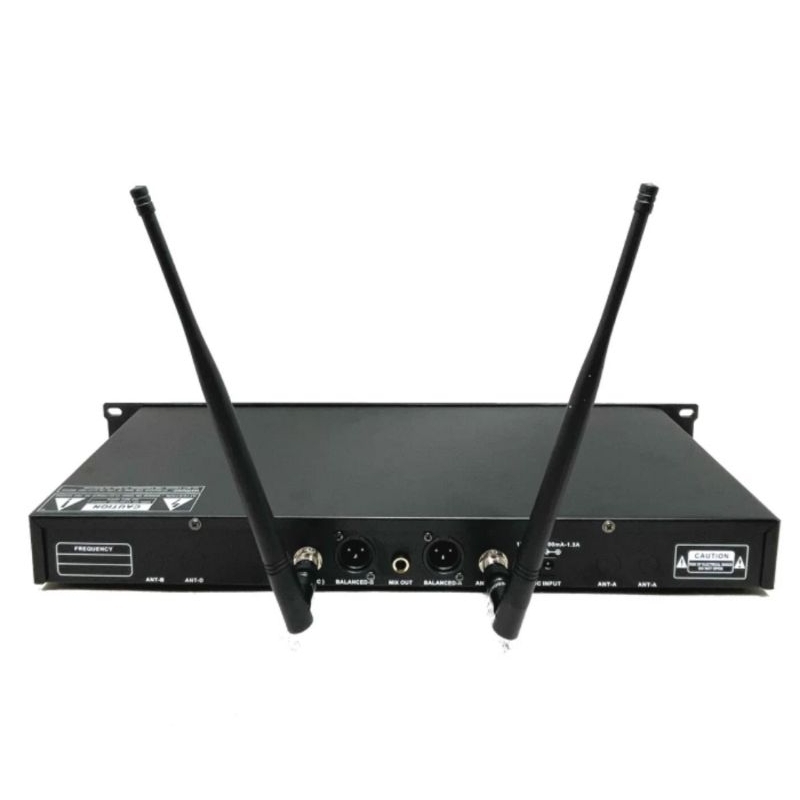

Gambar produk
