Micro SD Card Reader Writer Module For Arduino Modul Pembaca MicroSD

Detail Micro SD Card Reader Writer Module For Arduino Modul Pembaca MicroSD

Aplikasi:
data logger, file reader writer, external memorry support, sound player

Spesifikasi:
Supply voltage: 4.5V(min), 5V(typical), 5.5V(max)
Current: 0.2mA(min), 80mA(typical), 200mA(max)
Level conversion circuit board can interface: 5V or 3.3V
Card supported: Micro SD card (up to 2GB),Micro SDHC card (up to 32G)
Size: approx. 42 x 25 x 12mm
Weight: approx. 5g
Control Interface: Six pins (GND, VCC, MISO, MOSI, SCK, CS), GND to ground, VCC is power supply, MISO, MOSI, SCK is SPI bus, CS is chip selecting signal pin
3.3V voltage regulator circuit: LDO regulator output 3.3V
Level conversion circuit: signal of Micro SD card direction into 3.3V, MISO signal which controls interface direction is also converted to 3.3V. general AVR microcontroller system can read the signal;
Micro SD card connector: self-spring socket, easy to insertion and removal card

Positioning holes: 4pcs 2mm diameter M2 screws hole, good for installing positioning, to achieve inter-module combination

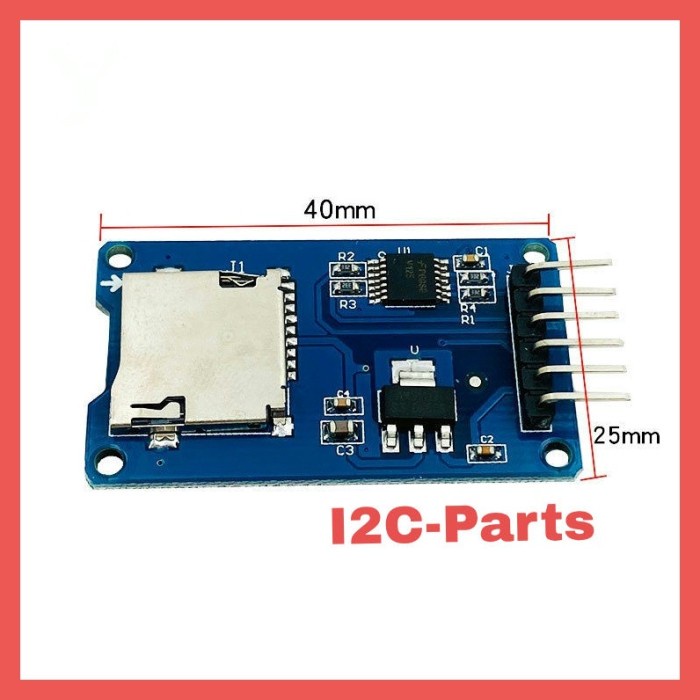

Gambar produk
