micro:bit v2 Board BBC micro:bit v2.2- card-sized microcontroller

Detail micro:bit v2 Board BBC micro:bit v2.2- card-sized microcontroller

Hi #RekanEasyWare ...
EasyWare Part#: EP000305

Note:
- Board ini merupakan versi terbaru dari micro:bit
- The difference between Micro-Bit SBC V2.2 and Micro-Bit SBC V2.0 is the difference in the USB interface driving chip and there will be a negligible influence.

Features:
- Card-sized microcontroller: (4 x 5cm) Easy to use & carry, designed for kids and beginners
- Wireless Capability: Built-in 2.4GHz micro:bit radio and BLE Bluetooth 5.0
- Rich Peripheries: Built-in buttons, MEMS microphone, speaker, touch-sensitive logo, accelerometer
- Beginner Friendly: Programmable Onboard 25 red LEDs for inter that can be used for interactions
- Completely Programmable: Support C++, MakeCode,Python,and Scratch software
- Notched Connector for easier connections

Spesifications:
- Processor: Nordic Semiconductor nRF52833
- Memory: 512KB Flash, 128KB RAM
- Interface: NXP KL27Z, 32KB RAM
- Microphone: MEMS microphone and LED indicator
- Accelerometer: ST LSM303AGR
- Speaker: On-board speaker
- Logo touch: Touch-sensitive logo
- Edge Connector: 25 pins. 4 dedicated GPIO, PWM, I2C, SPI and ext.power. 3 ring pins for connecting crocodile clips/banana plugs. Notched for easier connection
- I2C: Dedicated I2C bus for peripherals
- Wireless: 2.4GHz micro:bit Radio/BLE Bluetooth 5.0
- Power: 5V via micro-USB port, 3V via edge connector or battery pack, LED power indicator, Power off (push and hold the power button
- Current available: 200mA available for accessories
- Motion Sensor: ST LSM 303
- Software: C++, MakeCode, Python, Scratch
- Size: 5cm(w) x 4cm(h)

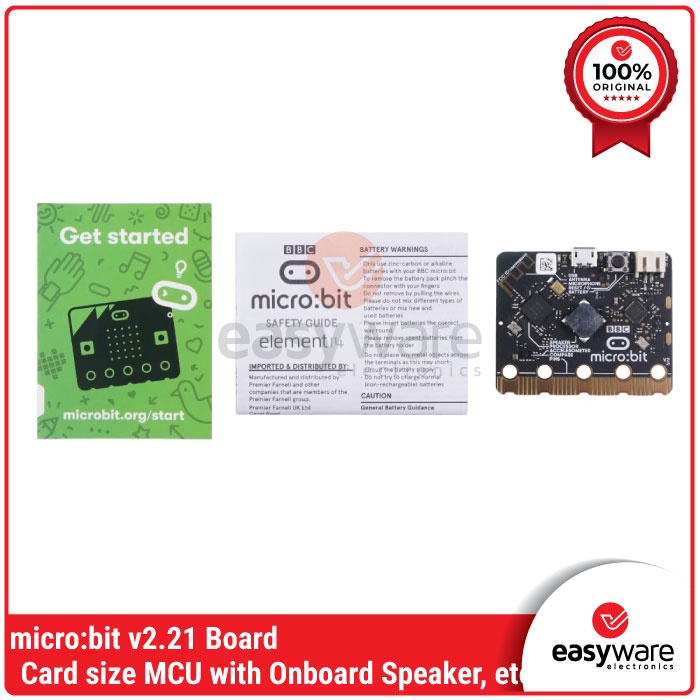

Package:
- 1x Micro:Bit V2.2- Card size MCU with Onboard Speaker, Accelerometer, MEMS microphone,2.4GHz radio/ BLE 5.0

Gambar produk
