Mic Microphone Mikrofon Wireless Shure SVX288/PG58 PG 58 Original

Detail Mic Microphone Mikrofon Wireless Shure SVX288/PG58 PG 58 Original

Mic wireless shure SVX 288 / PG 58
1bh resiever
2bh mic pegang wireless

PG58 with SVX2 Wireless Handheld Transmitter
Features
RF Level Switch between 1mW and 10mW
2 “AA” batteries
Up to 10 hours of battery life
Bottom on/off switch design
Anti-rolling ring on grille for PG28
Power and battery status LED
6 color rings for microphone identification

Tech Specs
Transmitter Type: Handheld
Dimensions: 254 mm X 51 mm diameter
RF Output Power: 1
Battery, endurance: 10 h
Weight: 270 g

Further Technical Specs
Audio Input Level: –20 dBV maximum
Input Impedance: 22 kΩ
RF Output (dependent on applicable country regulations):
HI power mode: 10 mW maximum
LO power mode: 1 mW maximum
Weight: 270 g (10.2 oz.)(without batteries)
Housing: Molded ABS
Power Requirements: 2 “AA” size alkaline or rechargeable batteries

SVX88 Dual Channel Diversity Receiver.
Features
Up to 8 selectable channels
Up to 4 compatible systems*
Antenna Switching Diversity
Adjustable Squelch Level
1/4" and XLR output
Available with Handheld and Lavalier system packages

Tech Specs
Power Supply: 12 to 18 V DC @ 220 mA, supplied by external power supply
Maximum Output Level: XLR connector into 100 kΩ load: -16 dBV, 6.35 mm (1/4”) connector into 100 kΩ load: -22 dBV mW

Further Technical Specs
Dimensions: 32 mm X 168 mm X 104.5 mm (1.26 in. x 6.625 in. x 4.2 in.)
Weight: 245 g (11.5 oz.)
Housing: Molded ABS
Audio Output Level (Ref. ±48 kHz deviation with 1 kHz tone):
XLR connector into 100 kΩ load: -16 dBV (MIC)
6.35 mm (1/4”) connector into 100 kΩ load: -22 dBV (MIC)
Output Impedance:
XLR connector: 600 Ω
6.35 mm (1/4”) connector: 600 Ω
Sensitivity: –105 dBm for 12 dB SINAD, typical
Image Rejection: >50 dBm, typical
Power Requirements: 12 to 18 V DC @ 130 mA, supplied by external power supply

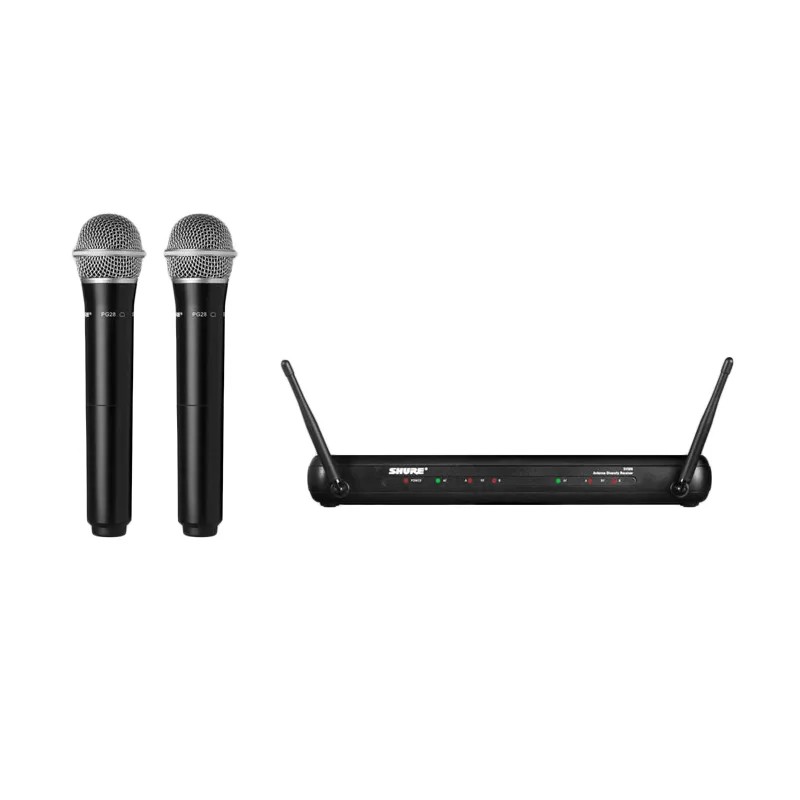

Gambar produk
