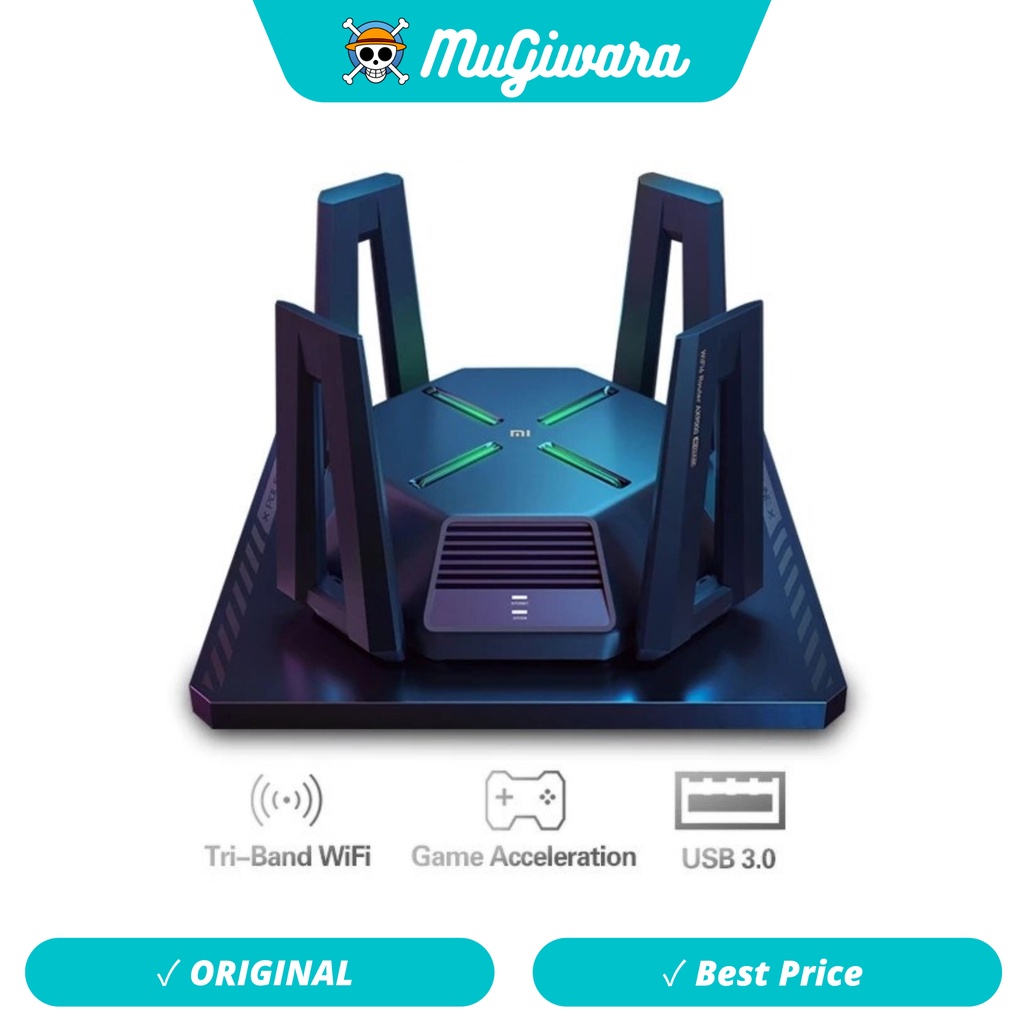

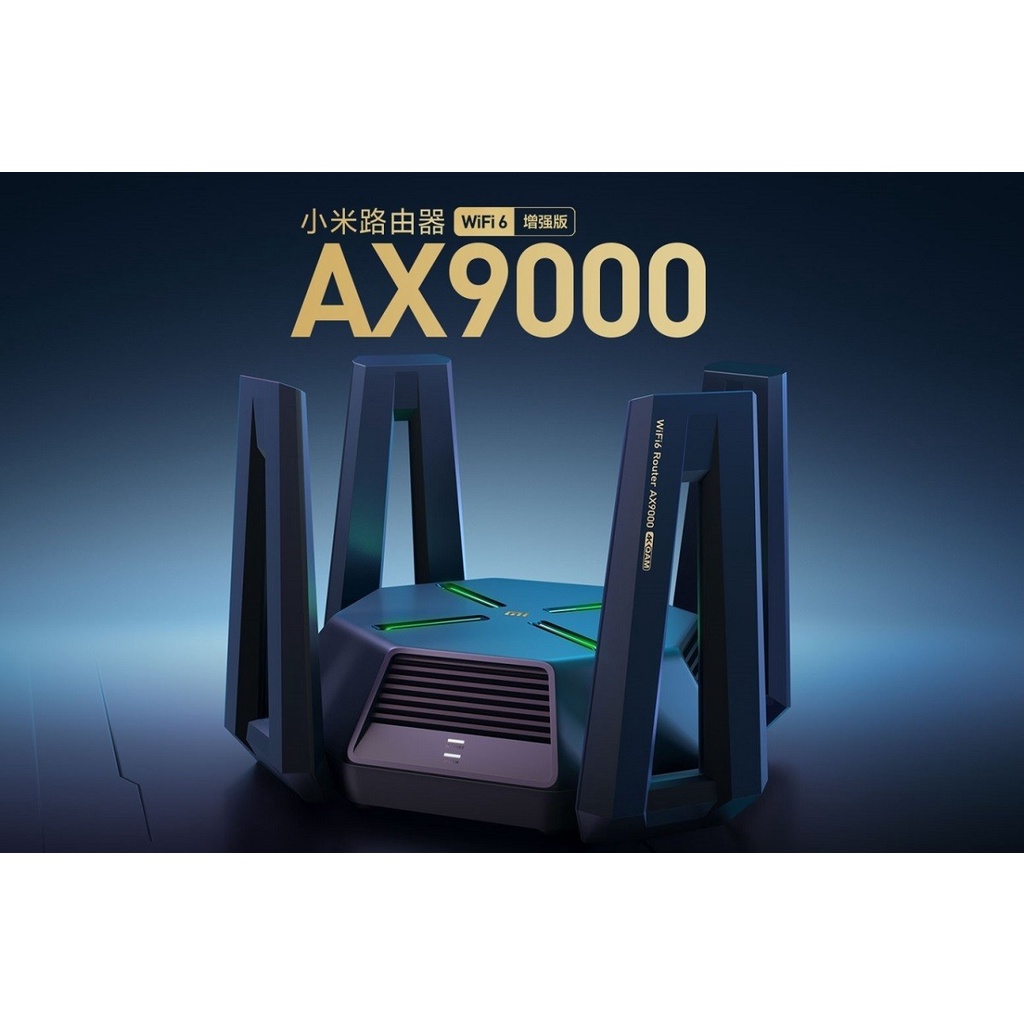

Mi Router AX9000 Built for Gamers Tri-Band Wi-Fi 6

Detail Mi Router AX9000 Built for Gamers Tri-Band Wi-Fi 6

Hardware configuration
ProcessorQualcomm® IPQ8072 quad-core A53 2.2GHz CPU
Network processing unitDual core 1.7GHz NPU
Memory1GB
2.4G Wi-Fi
4×4 (supports up to IEEE 802.11ax protocol, the theoretical maximum rate is 1148Mbps)
5GHz-1 Wi-Fi
4×4 (supports up to IEEE 802.11ax protocol, the theoretical maximum rate is 4804Mbps)
5GHz-2 Wi-Fi
4×4 (supports up to IEEE 802.11ax protocol, theoretical maximum rate is 2402Mbps)
AntennasExternal high gain antenna + internal AIoT antenna

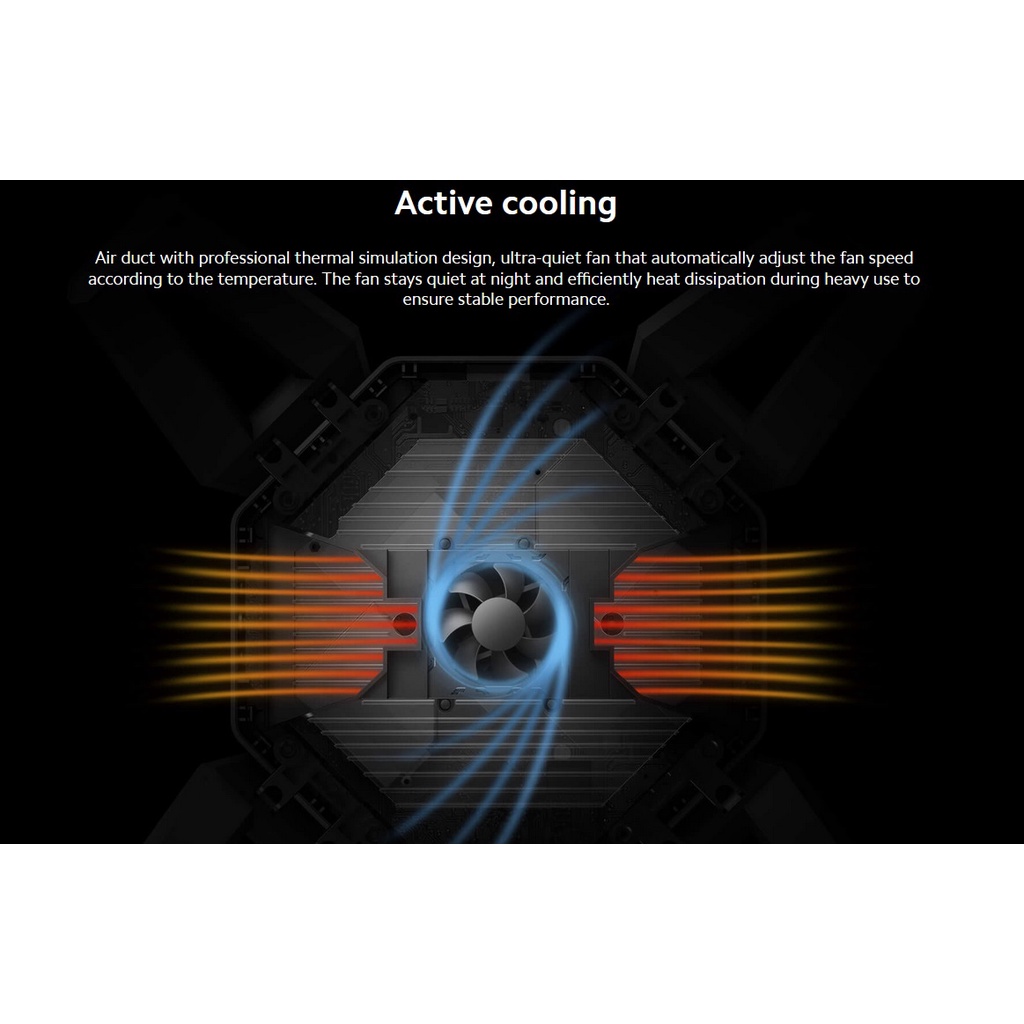

Heat dissipationActive cooling
Total ports
10/100/1000/2500Mbps adaptive WAN/LAN port (Auto MDI/MDIX) ×1
10/100/1000Mbps adaptive WAN/LAN port (Auto MDI/MDIX) ×1
10/100/1000Mbps adaptive LAN ports (Auto MDI/MDIX)" ×3
LED indicator light
8 lights, include: System indicator × 1, Internet indicator × 1, Network port × 5, Atmosphere light × 1
System reset button×1
USB 3.0 port×1
Mesh networking button×1
Power button×1
Power input port×1
Protocol standardsIEEE 802.11a/b/g/n/ac/ax，IEEE 802.3/3u/3ab
Wireless specifications
Tri-band2.4GHz, 5GHz-1 and 5GHz-2
Modulation
11b：DSSS：DBPSK(1Mbps),DQPSK(2Mbps),CCK(5.5/11Mbps)
11a/g：OFDM:BPSK(6/9Mbps),QPSK(12/18Mbps),16QAM(24/36Mbps),
64QAM(48/54Mbps)
11n：MIMO-OFDM:BPSK,QPSK,16QAM,64QAM.
Data rate：MCS0-MCS15
11ac：MIMO-OFDM:BPSK,QPSK,16QAM,64QAM,256QAM.
11ax：MIMO-OFDM:BPSK,QPSK,16QAM,64QAM,256QAM,1024QAM.
Data rates: MCS0-MCS11 (supports 4 streams).4096QAM.
Data rates: MCS12-MCS13 (supports 2 streams)
Software specifications
Operating systemMiWiFi ROM, a smart router operating system based on OpenWRT
WiFi Encryption
WPA-PSK/WPA2-PSK/WPA3-SAE encryption,
Wireless access control (black and white list), SSID hidden
Management applicationsSupports Web, Android, iOS
Working environment
Working environment temperature0-40℃
Operating humidity10%-90%RH (non-condensing)
Storage temperature-40-70℃
Storage humidity5%-90%RH (non-condensing)

Package contents
Mi Router AX9000 ×1
Instruction Manual ×1
Power adapter ×1
Network cable ×1
