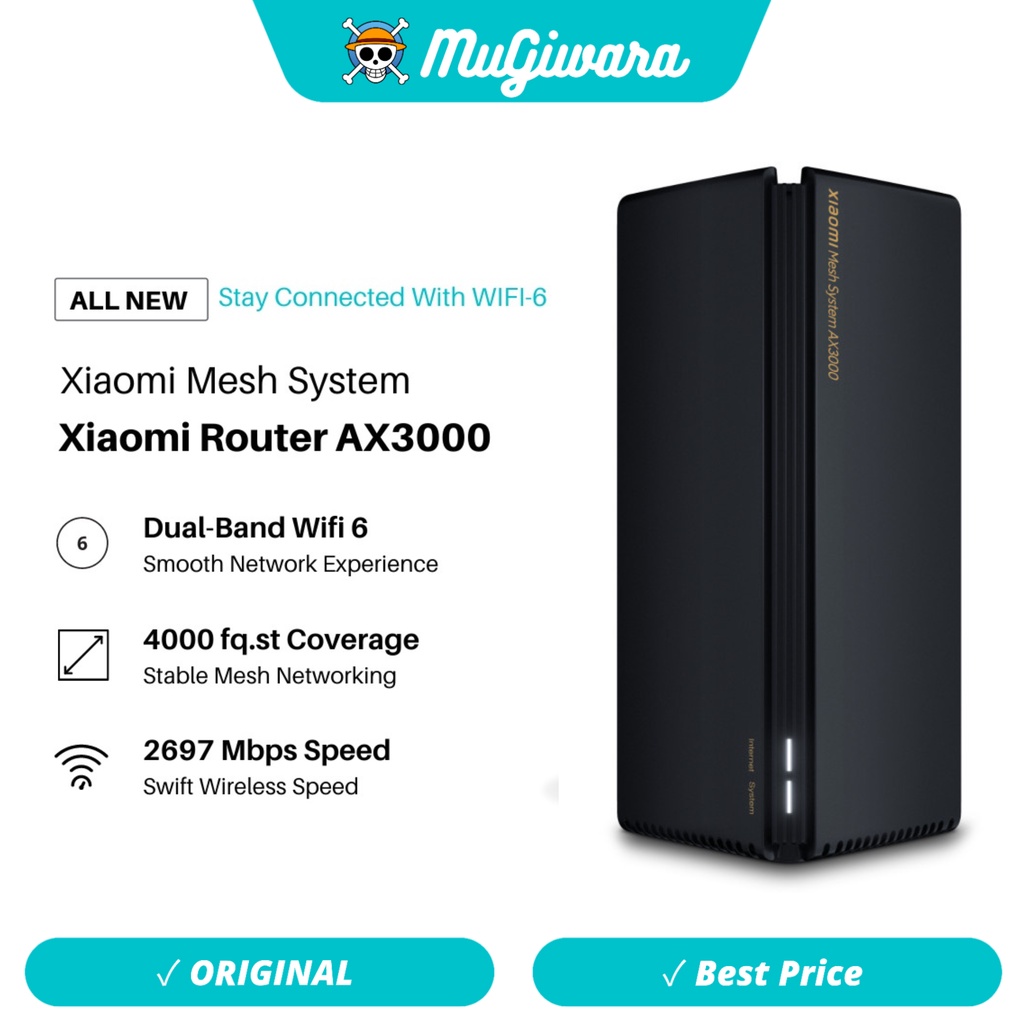

Mi Mesh System AX3000 Router Wi-Fi 6 Dual Band 2976Mbps

Detail Mi Mesh System AX3000 Router Wi-Fi 6 Dual Band 2976Mbps

Hardware configuration
Processor Qualcomm® IPQ5000 Dual-core A53 1.0GHz CPU
Network processing unit Single core 1.0GHz NPU
Memory 256MB
2.4G Wi-Fi 2×2 (supports up to IEEE 802.11ax protocol, the theoretical maximum rate is 574Mbps)
5GHz Wi-Fi 2×2 (supports up to IEEE 802.11ax protocol, the theoretical maximum rate is 2402Mbps)
Antennas High gain antennas
Heat dissipation Natural heat dissipation
Total ports
1×10/100/1000Mbps self-adaptive WAN port (Auto MDI/MDIX)
3×10/100/1000Mbps self-adaptive LAN ports (Auto MDI/MDIX)
LED indicator light
2 lights, System indicator × 1, Internet indicator × 1
System reset button ×1
Mesh networking button ×1
Power input port ×1
Protocol standards IEEE 802.11a/b/g/n/ac/ax，IEEE 802.3/3u/3ab
Wireless specifications Dual-band 2.4GHz, 5GHz

Modulation
11b：DSSS：DBPSK(1Mbps),DQPSK(2Mbps),CCK(5.5/11Mbps)
11a/g：OFDM:BPSK(6/9Mbps),QPSK(12/18Mbps),16QAM(24/36Mbps),
64QAM(48/54Mbps)
11n：MIMO-OFDM:BPSK,QPSK,16QAM,64QAM.
Data rate：MCS0-MCS15
11ac：MIMO-OFDM:BPSK,QPSK,16QAM,64QAM,256QAM.
11ax：MIMO-OFDM:BPSK,QPSK,16QAM,64QAM,256QAM,1024QAM.
Data rates: MCS0-MCS11 (supports 2 streams).
Software specifications
Operating system
MiWiFi ROM, a smart router operating system based on OpenWRT
WiFi Encryption
WPA-PSK/WPA2-PSK/WPA3-SAE encryption,
Wireless access control (black and white list), SSID hidden
Management applications
Supports Web, Android, iOS
Working Environment
Working environment Temperature 0-40℃
Operating humidity 10%-90%RH (non-condensing)
Storage temperature -40-70℃
Storage humidity 5%-90%RH (non-condensing)
