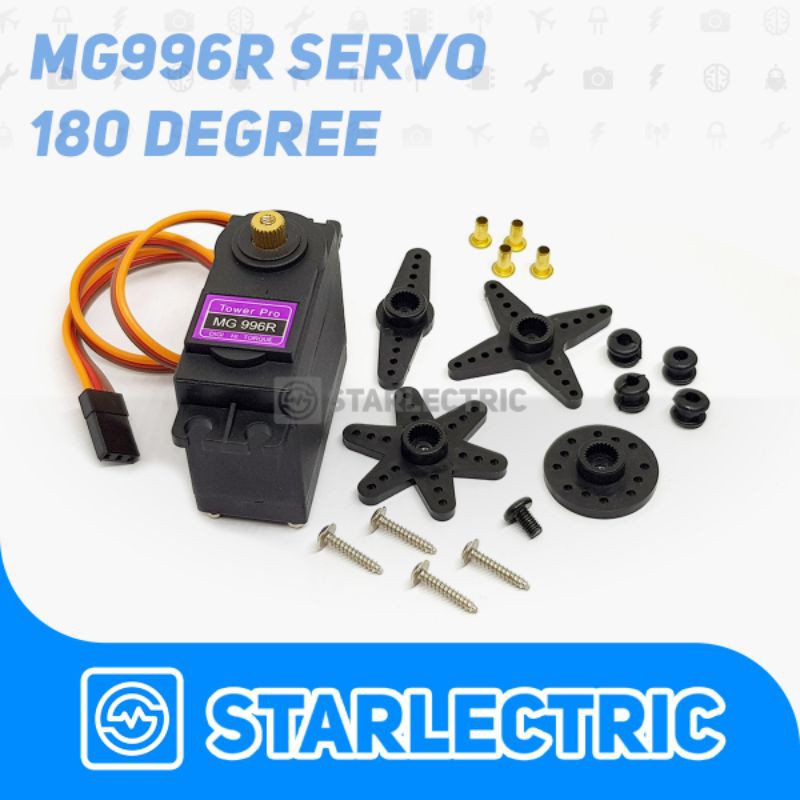

Detail MG996R Tower Pro Motor Servo Metal Gear High Torque TowerPro 180
Merupakan servo yang memiliki Torque yg tinggi. Memiliki sudut perputaran sebesar 180 derajat
Specifications :
- Weight: 55 g
- Dimension: 40.7 x 19.7 x 42.9 mm approx.
- Stall torque: 9.4 kgfcm (4.8 V ), 11 kgfcm (6 V)
- Degree: 180
- Operating speed: 0.17 s/60 (4.8 V), 0.14 s/60 (6 V)
- Operating voltage: 4.8 V a 7.2 V
- Running Current 500 mA - 900 mA (6V)
- Stall Current 2.5 A (6V)
- Dead band width: 5us
- Stable and shock proof double ball bearing design
- Temperature range: 0C - 55C
- Teeth = 25
Gambar produk
MG996R Tower Pro Motor Servo Metal Gear High Torque TowerPro 180
