Detail MG996R Micro Servo MG996 Metal Torque Arduino Gear Tower Pro Hi Servo Motor Boat Module Helicopter


Video perkenalan produk MG996R Micro Servo MG996 Metal Torque Arduino Gear Tower Pro Hi Servo Motor Boat Module Helicopter. Sumber: Shopee.

SERVO MOTOR HIGH TORQUE 10KG dengan double bearing (Kuat gann!), spesifikasi:

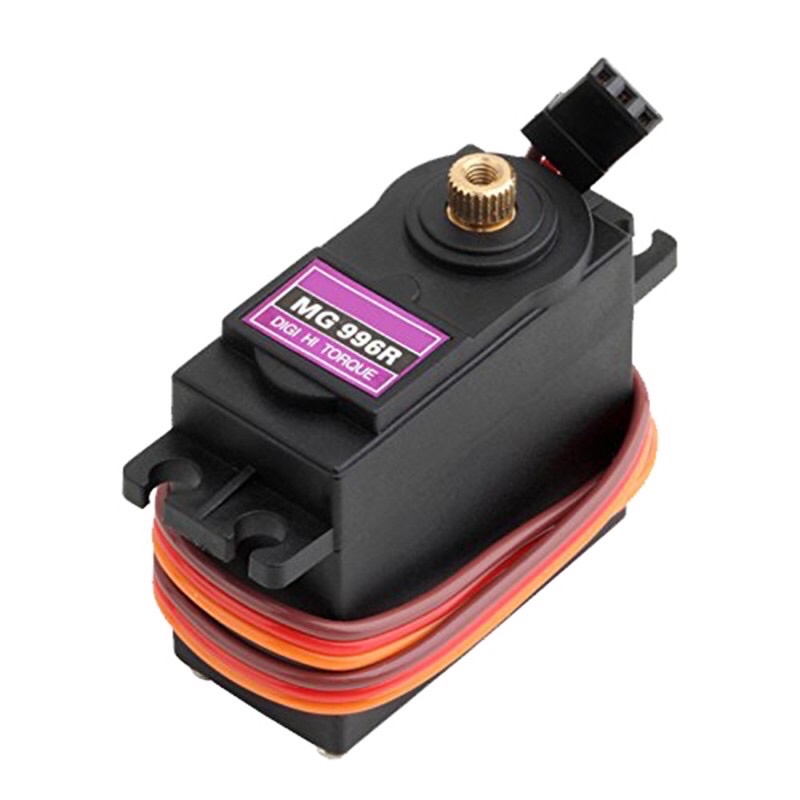

- TOWERPRO MG996R (Ini versi improvement dari tipe MG995R, revisi PCB, positioning lebih akurat dan unit tahan banting)
- Weight: 55 g

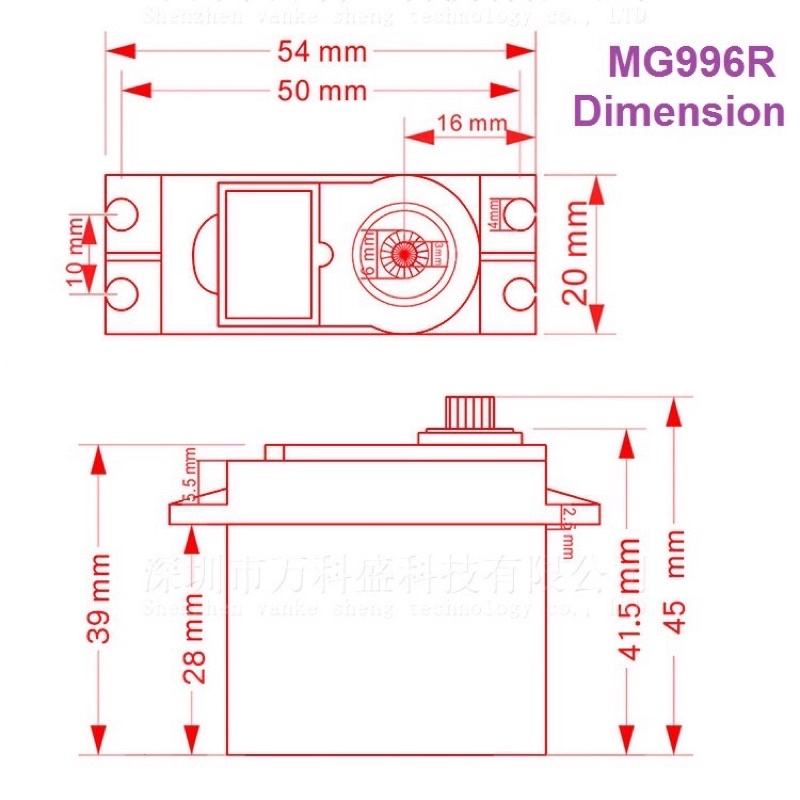

- Dimension: 40.7 x 19.7 x 42.9 mm approx.
- Stall torque: 9.4 kgfcm (4.8 V ), 11 kgfcm (6 V)
- Degree: max 120
- Operating speed: 0.17 s/60 (4.8 V), 0.14 s/60 (6 V)
- Operating voltage: 4.8 V -- 7.2 V
- Running Current 500 mA 900 mA (6V)
- Stall Current 2.5 A (6V)
- Dead band width: 5us
- Stable and shock proof double ball bearing design
- Temperature range: 0C - 55C
- Analog Modulation

Kelengkapan:
1 pcs Servo Motor TowerPro MG996R
1 set accesories seperti di foto

NB : Gear plastik

Untuk cara pakai, sample code, tutorial, dll bisa dicari digoogle, sangat banyak sekali! :D
