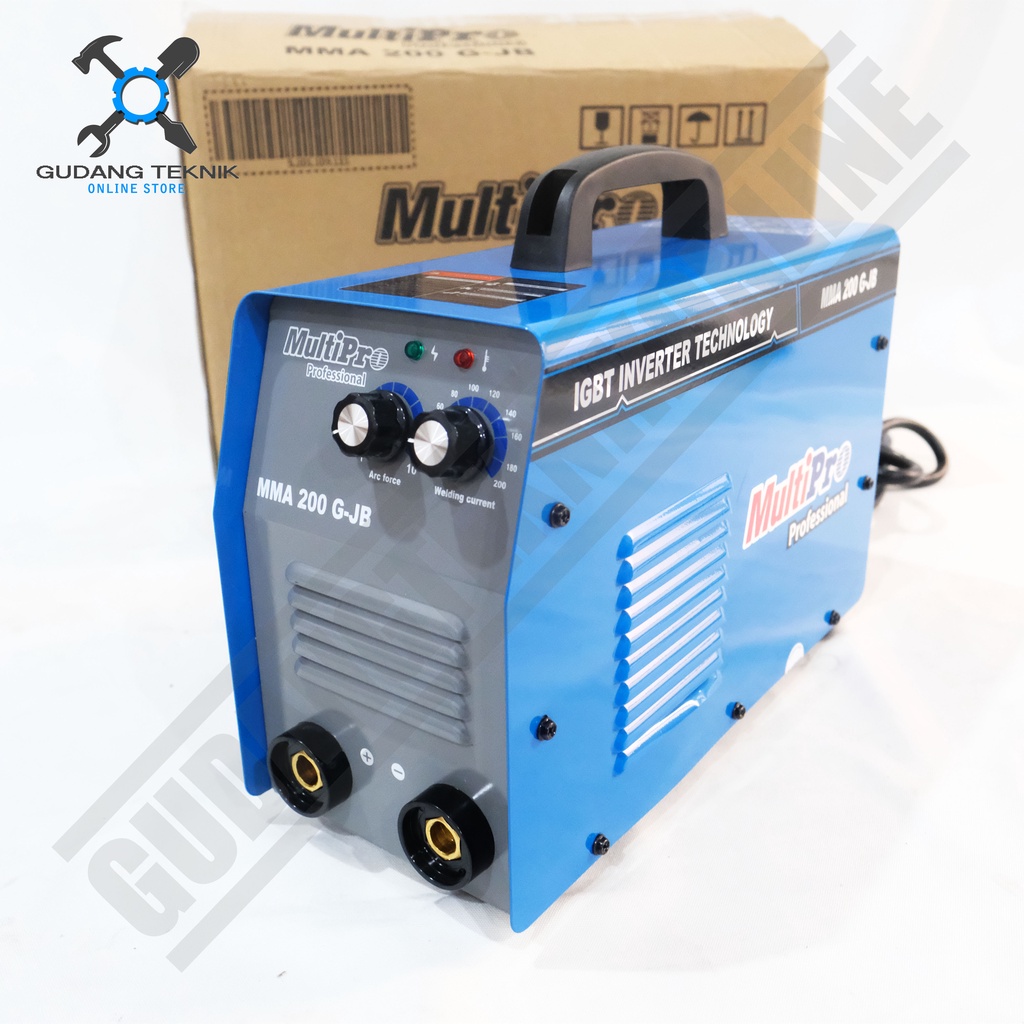

Mesin Las Listrik MMA 200GJB MULTIPRO / Travo Las Inverter 200A - Trafo Mesin Las Listrik 200 G-JB MULTIPRO

Detail Mesin Las Listrik MMA 200GJB MULTIPRO / Travo Las Inverter 200A - Trafo Mesin Las Listrik 200 G-JB MULTIPRO

Mesin Las Listrik MMA 200GJB MULTIPRO / Travo Las Inverter 200A - Trafo Mesin Las Listrik 200 G-JB MULTIPRO

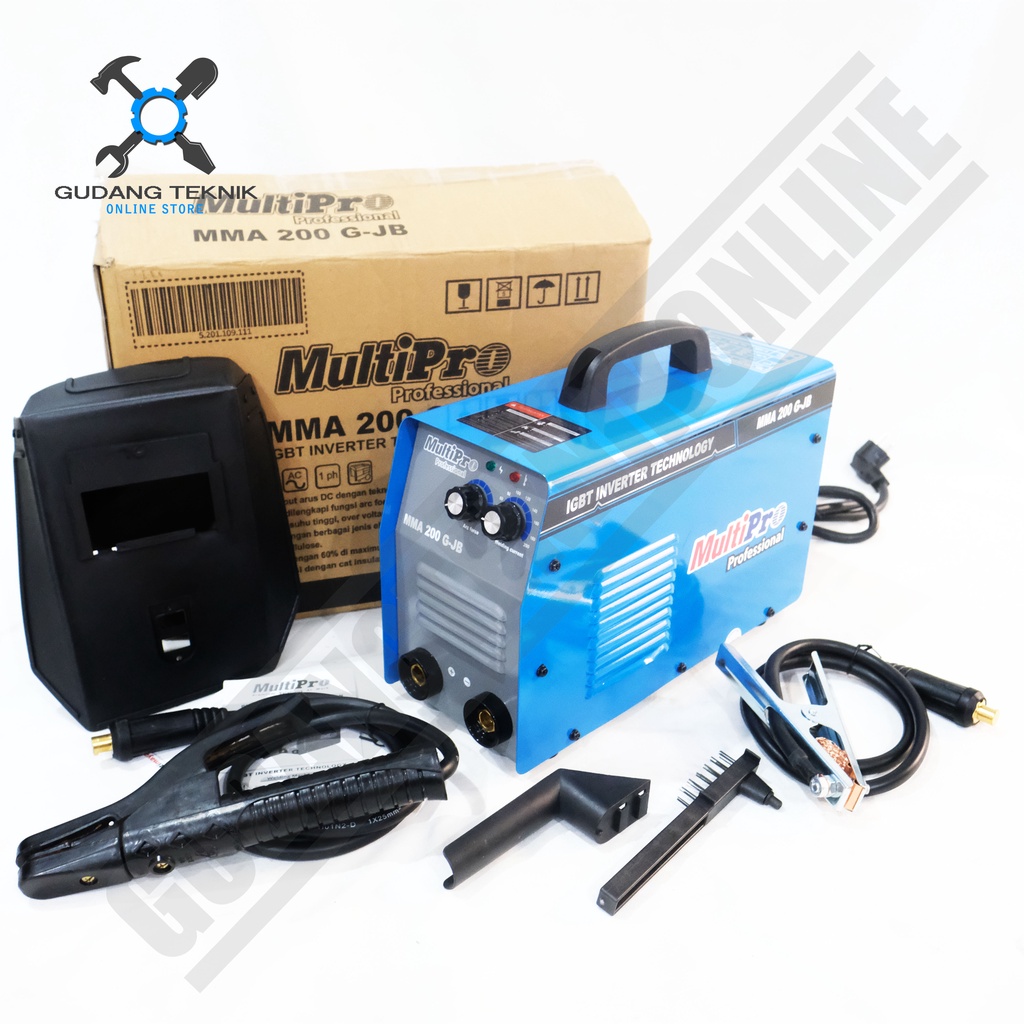

STANDARD ACCESSORIES
- Electrode Holder Set
- Earth Clamp Set
- Wire Brush / Chipping Hammer
- Hand Shield

DETAIL PRODUCT
Input Voltage : 1ph 220V ± 15%
Frequency : 50 / 60 Hz
Rated Input Power : 9.5 KVA
Range Working Voltage : 28 V
No-load Voltage : 80 V
Range of Output Current : 10 ~ 200 A
Rated Input Current : 32 A
Diameter of Electrode : ø 1.6 ~ 5.0 mm
Rated Duty Cycle : 60%
Power Factor : ≥ 0.7
Efficiency : ≥ 85%
Insulation Type : F
Protection Type : IP21S
Weight : 4.2 Kg
Dimension : 410 x 165 x 290 mm

SUITABLE
- Electrode 1.6 ~ 5.0 mm (Basic, Rutile & Cellulose) (AWS E6013, E7018, E7016, E6010, Etc.)
- Light & Medium Industrial
- Work with Generator
