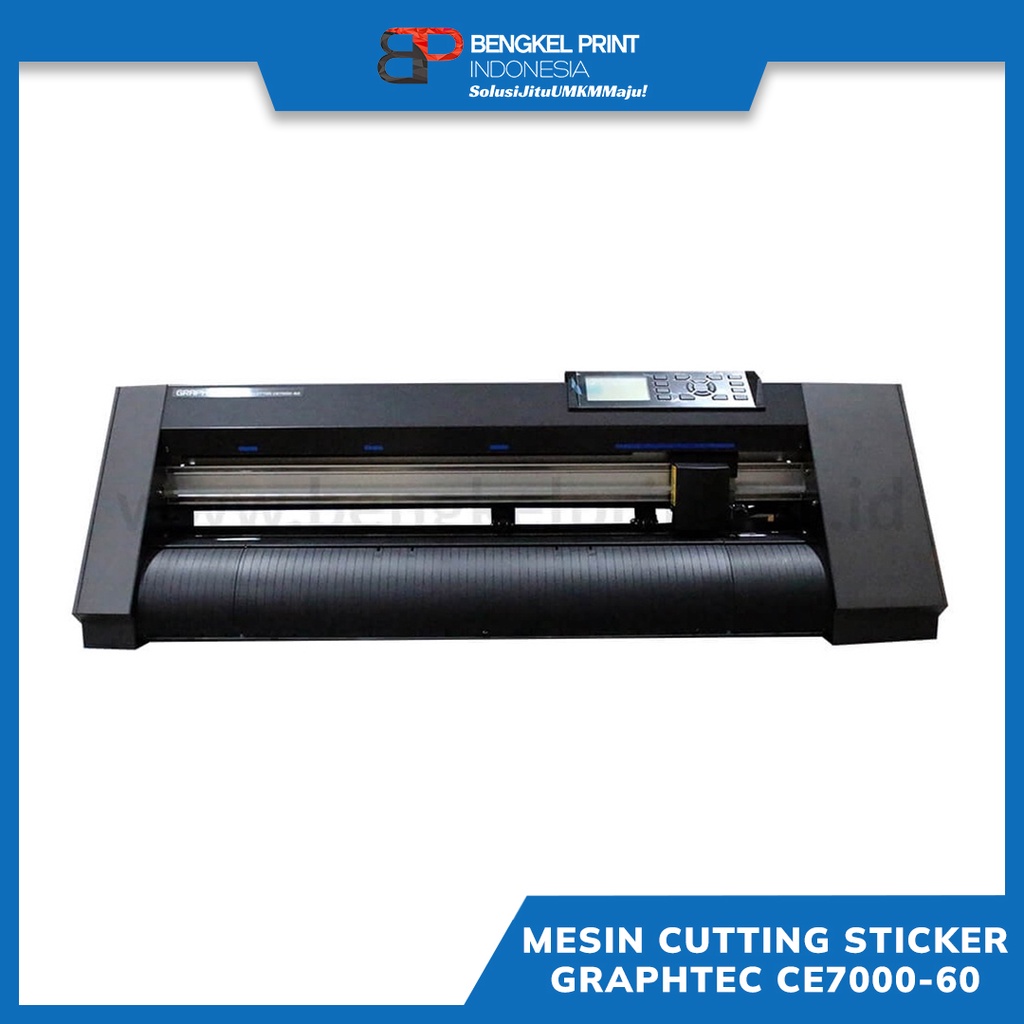

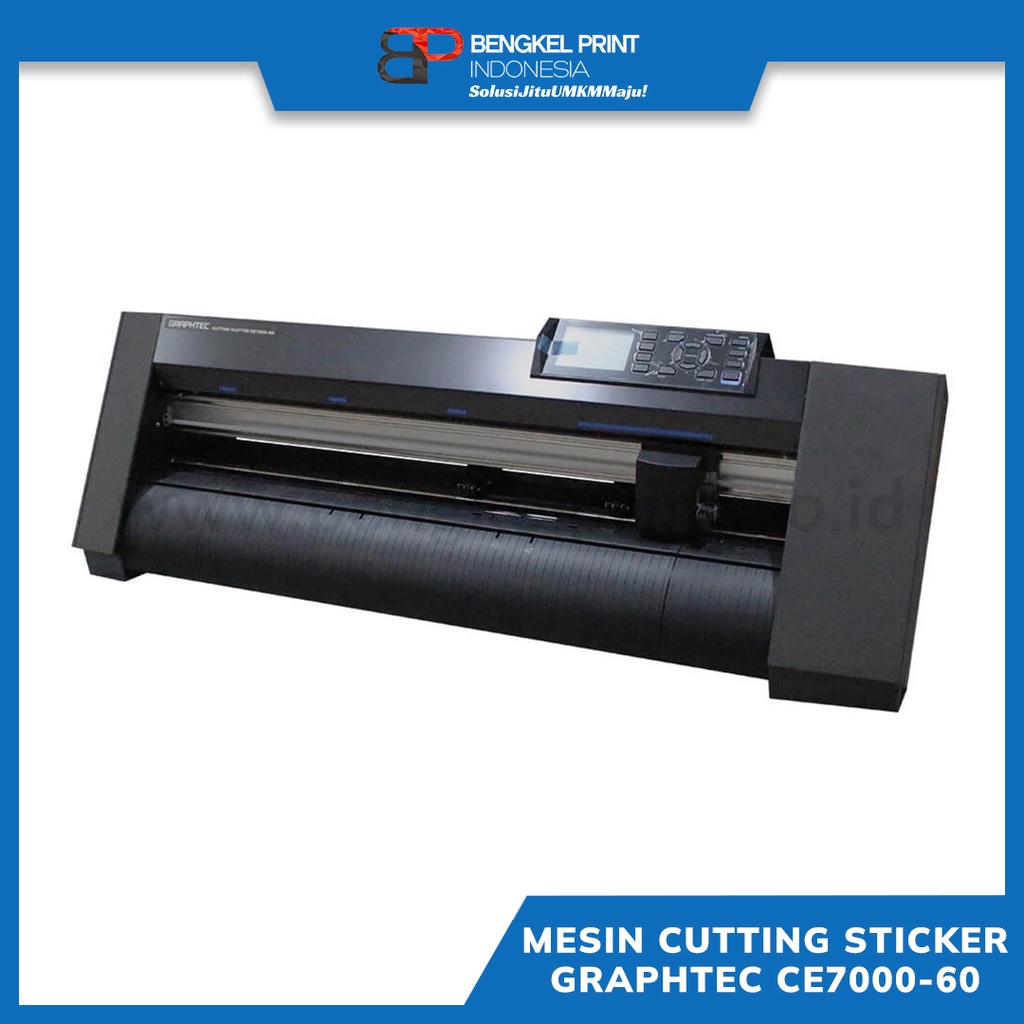

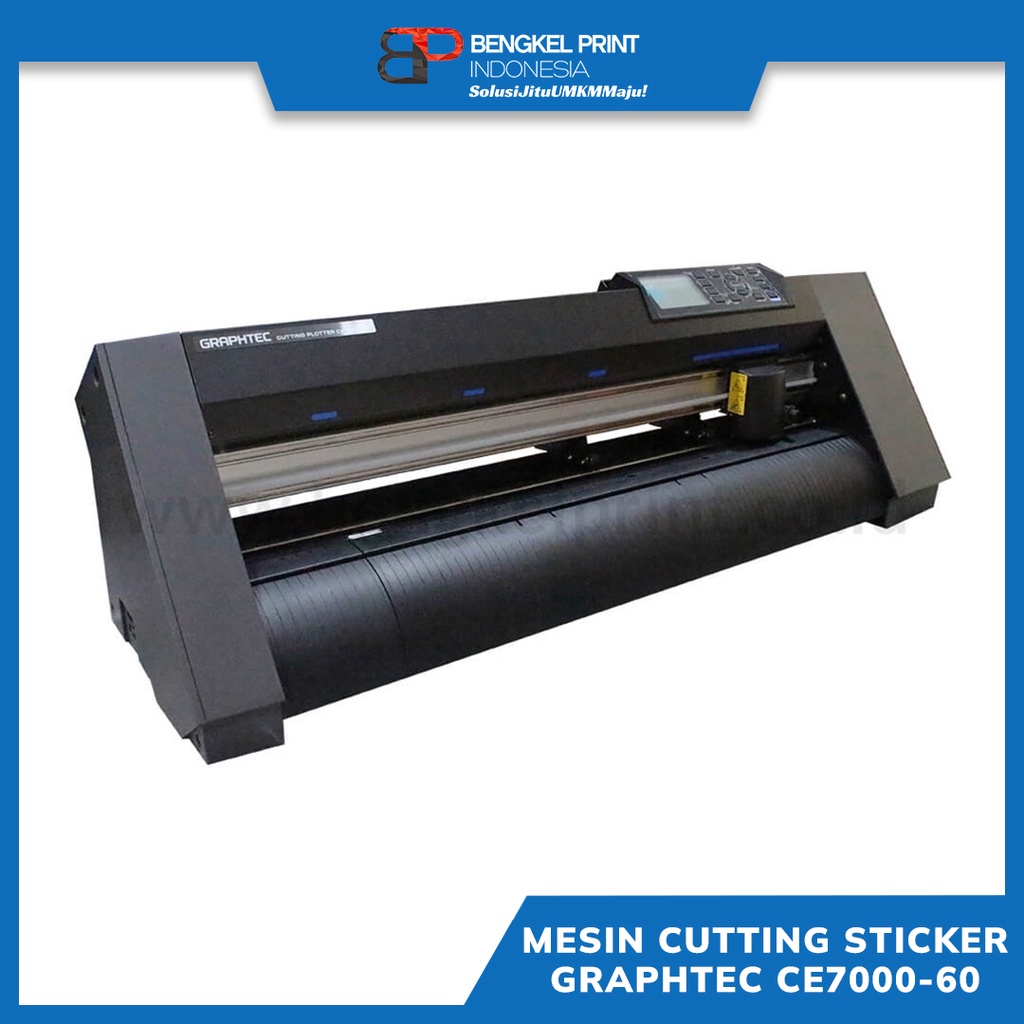

Mesin Cutting Sticker Graphtec CE7000-60

Detail Mesin Cutting Sticker Graphtec CE7000-60

Spesifikasi Graphtec CE7000-60
Item : CE7000-60
Configuration : Grit rolling type
Drive Method : Digital servo drive
Max. Cutting Area (WXL) : 603mm x 50m
Cutting Area Of Accuracy : 583mm x 2m
Cutting Area Of Accuracy : 583mm x 5m ( *optional using basket/ keranjang)
Mountable media width : Min. 50mm – Max. 721mm ( 28 inch)
Number of push rollers : 2 rollers
Max. Cutting Speed : 900 mm/s at 45º direction
Acceleration : Max. 21.2m/s2 at 45° direction
Cutting Force : Max. 4.41 N ( 450gf)
Min. Character Size : Approx. 5 mm alphanumeric
Mechanical Resolution : 0.005mm
Blade Types : Supersteel
Pen Types : Oil-based ballpoint pen, Water-based fiber tip pen
Media Types : Up to 0.25mm thickness Marking film (PVC / fluorescence / reflection), polyester film (With specified conditions)
Interface : USB 2.0(Full Speed), Ethernet 10BASE-T/100BASE-TX
Buffer Memory : 2MB
Power Consumption : Up to 100W
Operating Environtment : 10 to 35 ºC, 35 to 75 % R.H. (non-condensing)
Guaranteed Accuracy : 16 to 32 ºC, 35 to 70 % R.H. (non-condensing)
External Dimensions : Approx. 1005 × 582 × 1092 mm ( W X D X H)
Extrernal Dimennsions : 1005 x 936 x 1092 mm (*3) With basket / keranjang )
Compatible Os : windows 10/8.1/8/7 ,8 Mac OS 10.6 to 10.12 (Graphtec Studio : 10.6 10.12 : CM 4:10.7 10.12)
Support Software (Download) : Cutting Master 4, Pro Studio, Graphtec Studio, Windows Driver

Accessories Graphtec CE7000-60
- 1 Power cord
- 1 USB Cable ( 2.9m long )
- 1 Cutting blade holder ( PHP33- CB09N-HS)
- 1 Fiber-tip pen holder
- 1 Water based fiber-tip pen
- 1 Manual Book
- 1 DVD-ROM ( User manual, Windows driver, Graphtec Pro Studio (Windows, 1 license), Graphtec Studio (Mac), Cutting Master4 )

Gambar produk
