Mesin Bubut / ORION Engine Lathe Machine OWMD6240Bx1000

Detail Mesin Bubut / ORION Engine Lathe Machine OWMD6240Bx1000

Setiap hari buka termasuk hari minggu/libur, silahkan di pesan barangnya dan kami akan mengirimkan barang pesanan anda secepat mungkin.

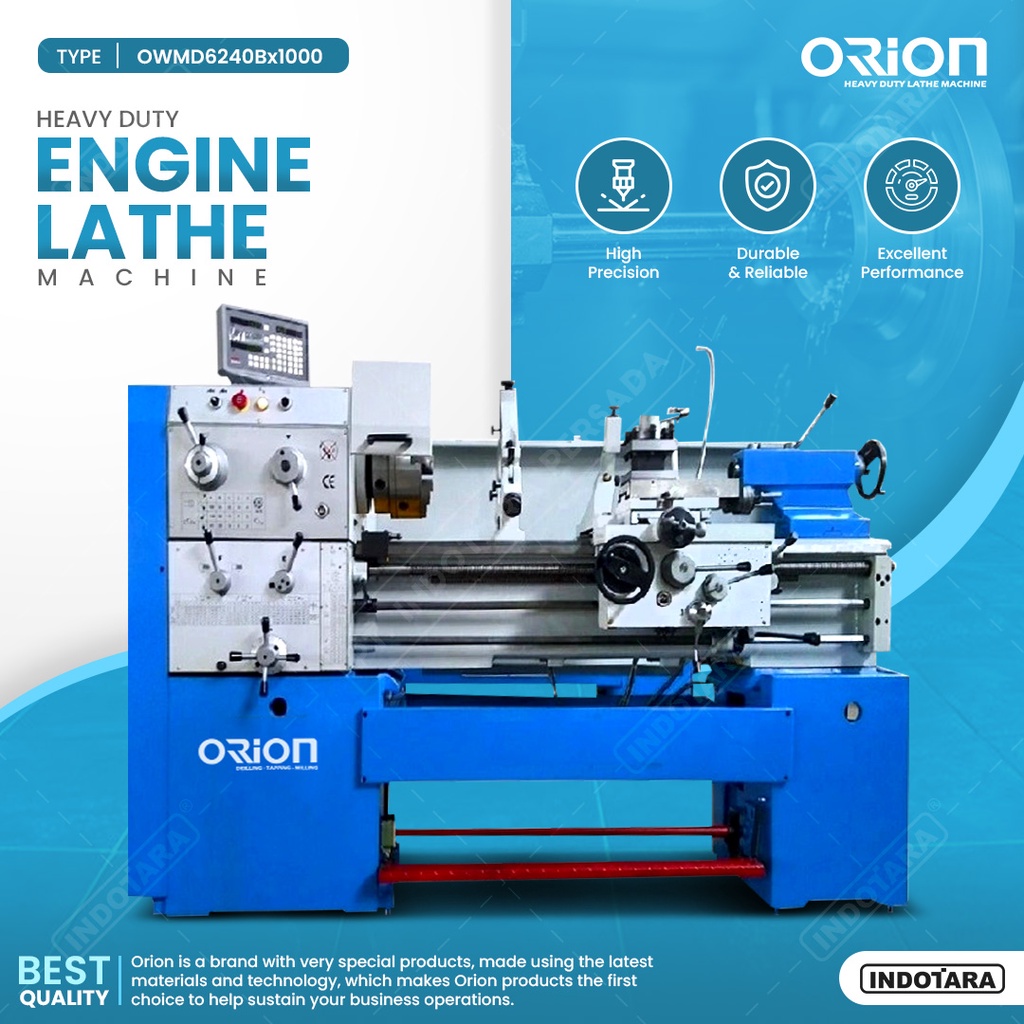

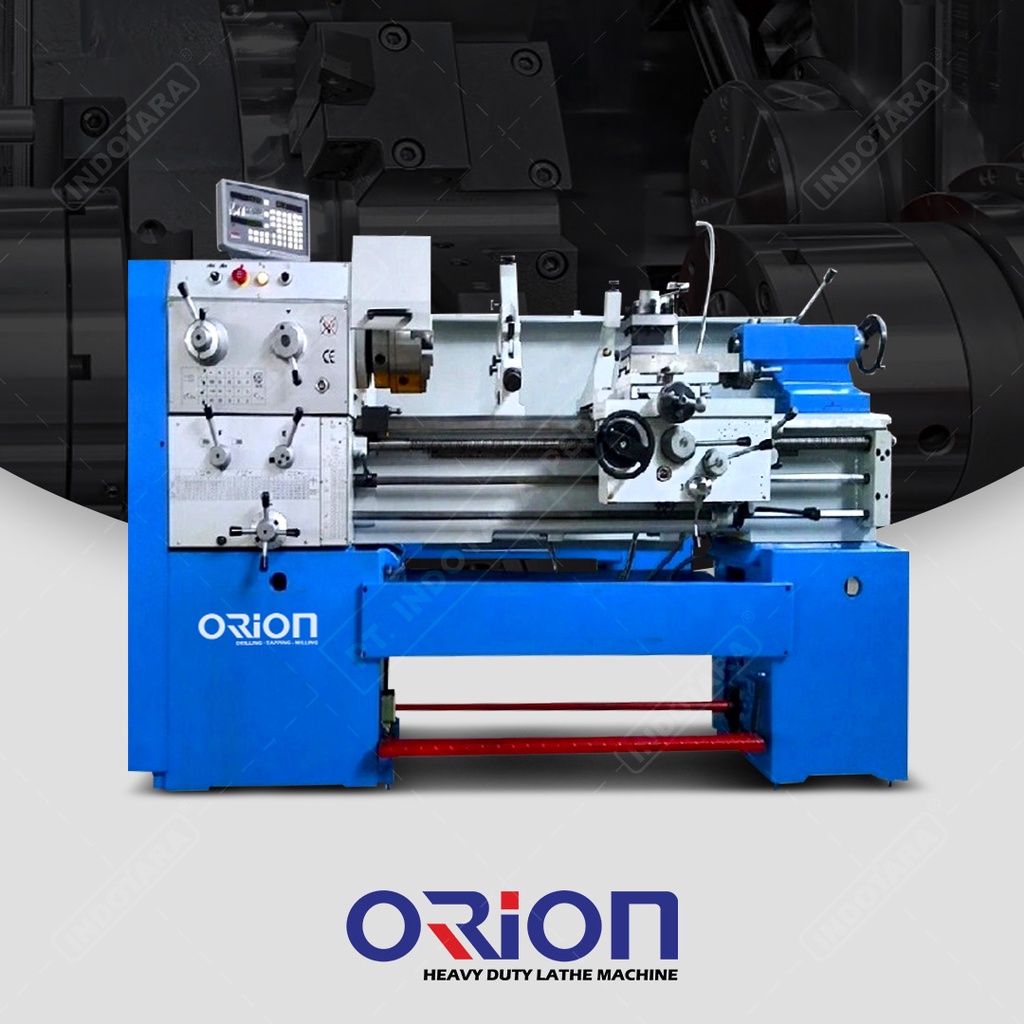

ORION Engine Lathe Machine
Model : OWMD6240B
Swing over bed : 400mm
Swing over cross slide : 225mm
Swing over gap : 530mm
Distance between centers : 1000mm
Width of Bed : 330mm
Spindle bore : 65mm
Spindle speeds : 20 - 1800rpm
Inch threads : 1-56inch
Metric threads range : 0.5-28
Tailstock quill taper : MT.5
Travel of tailstock sleeve : 120mm
Diameter of tailstock sleeve : 65mm
Motor power : 5.5KW 3Phase
Net Weight : 1850KG
Packing dimension (mm) : 2420x1150x1800
Warranty : 3 years mechanical & 1 year electrical

Feature :
- Heavy duty polyurethane coating by Jotun, Norway
- Bearing by NSK, Japan
- Ultra Precise Screwed Rod By HAGENKÖTTER GMBH, Germany
- Gearbox Parts by Hitachi Alloy, Japan
- Safe design with international quality
- High accuracy & precision
- Completed with Steady Rest
- Heavy duty lathe machine
- Easy maintenance and low noise
- Simple structure and less failure

Dapatkan produk-produk berkualitas tinggi dengan harga yang ekonomis.
Hati-hati barang tiruan, Produk yang asli hanya ada di PT. Indotara Persada.

Gambar produk
