Mesin Bubut Lathe Kayu Besi 1100W Brushless 210x400 125mm Chuck

Detail Mesin Bubut Lathe Kayu Besi 1100W Brushless 210x400 125mm Chuck

3D Zaiku Indonesia

Mesin Bubut Lathe Kayu Besi 1100W Brushless 210x400 125mm Chuck


Kenapa beli di 3D Zaiku :
1. Garansi sparepart mesin 1 tahun
2. FREE Briefing cara pemakaian mesin untuk pemula di toko kita yang khusus mesin laser
3. FREE Konsultasi kebutuhan mesin dan upgrade mesin, ada mesin demo ditoko



Features

Variable spindle speed of 50-2500 RPM

All metal gears, shell and hand wheel

High precision, able to turn out standard qualified works

1100W strong power, 400mm (15-3/4") distance center

Automatic tool, infinitely variable, professional tool post

Telescopic sets with scale

Wear-resistant, durable, accurate and professional


Specification
- The model can do both metric and inch thread
- Spindle outer diameter: 50mm
- Spindle wall thickness: 6mm
- Tail Stock Taper: MT2
- Motor Power:1100 WBrushless motor
- Gross Weight: 80 KG
- Model: WM 210V*400
- Package Type: wooden packaging Packing Size: 880*480*420 mm
- Lathe Size: 840*390*370 mm
- Voltage : 220v
- Maximum Swing Diameter of The Bed: 210 mm
- Maximum Turning Diameter On the Pallet: 110 mm
- Distance Between Centers: 400 mm
- Bed Width: 100 mm
- Chuck Diameter: 125mm
- Spindle Through Hole: 38 mm
- Speed Control Mode: Stepless Speed Change
- Spindle Speed: 50-2500PRM
- Metric Thread Range: 0.5-3.0 mm
- Inch Threads:10-44TPI
- Tool Holder Station: Four-Position Tool Holder
- Maximum Travel Of the Knife Holder: 55 mm
- Medium Pallet Maximum Stroke: 75 mm
- Tail stock Sleeve Stroke: 60mm
- Tailstock taper: MT2
- Guarantee: 100% satisfaction guarantee
- Customer service: If you have any question, please feel free to contact us. We will reply to you within 24 hours.

Package
- 1 X 8" x 16" Variable-Speed Lathe
- 1 X Tool Storage Box
- 1 X 3-Jaw chuck (brand sanou)+ 3 reverse cams
- 8 X Change Metal Gears
- 1 X Oil Can
- 1 X User Manual
- 1 X Dead Center
- 1 X Set of Accessories
- 1 set of Cutter CNC cutter 12mm)
- 1X rotating center
- 1X drilling chuck
- 1 set Quick Change Tool Post( Metal good quality)

Threading and Feeding Table


Ready Stock

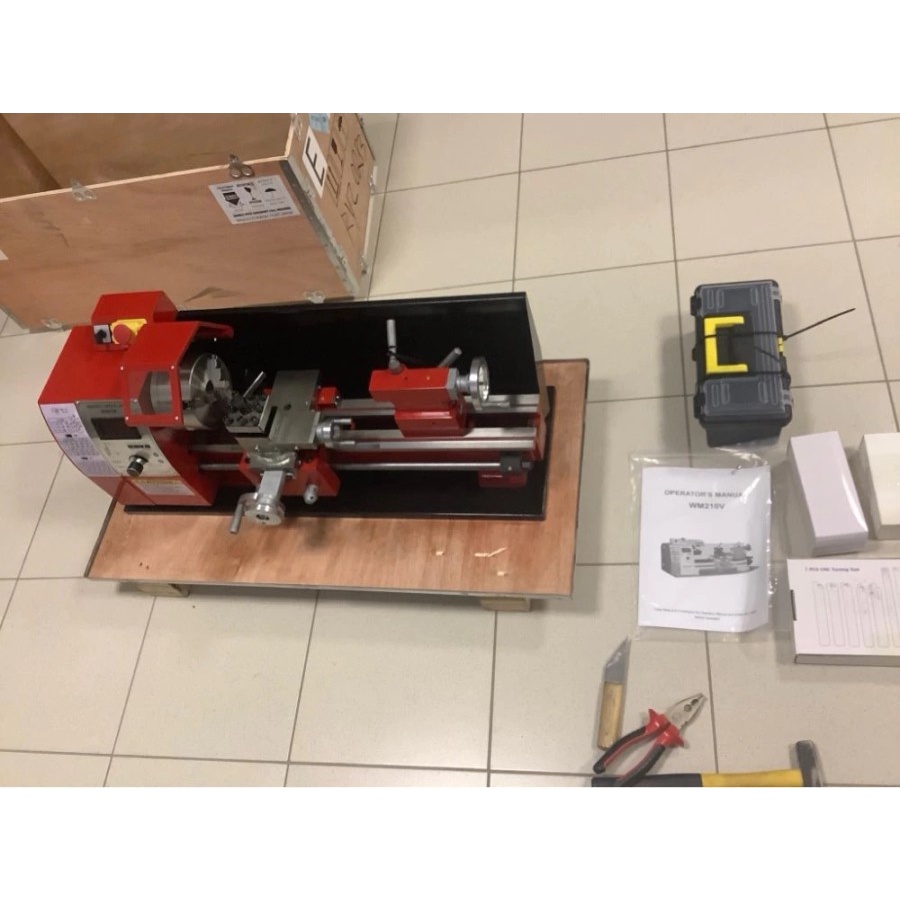

Gambar produk
