Mesin Absensi Fingerprint ZKTeco F16 Access door

Detail Mesin Absensi Fingerprint ZKTeco F16 Access door

F16 FINGERPRINT ACCESS COTNROL ID CARD READER ZKTECO WITH SOFTWARE TCP/IP BIOMETRIC READER DOOR ACCESS TERMINAL

F16 is a fingerprint access control terminal with an integrated proximity reader (EM). It is IP65 rated which enables it to be resistant from water, dust and other outside damages. It can be installed easily on your network having both Ethernet and RS485 serial ports. Weigand-OUT port allows connection of reader to or any 3rd party access control panels panel. Using Weigand-In port, you can connect to any card readers for authentication at both entrance and exit.


The PULL firmware and Access3.5 are the standard configurations which make F16 more versatile and powerful. Users can be registered on the device by the Management Card or through connecting with Access3.5 software by TCP/IP.

Technical Specifications,Fingerprint Sensor,Optical Sensor,Algorithm Version
Finger VX10.0
Communication
TCP/IP, RS485
Fingerprint Capacity 3,000 Fingerprints
Card Capacity,30,000 Cards
Log Capacity,100,000 Transactions RF Card
EM(standard) Authentication
Finger/Card or Finger&Card,Wiegand Signal,Wiegand input&output
Ingress Protection Rate
IP65,Operating Voltage
12VDC 3A,Operating Temperature
0~ 45 C (32F ~ 113F)

Dimension : 62.5mm185mm41.5mm (WHD)

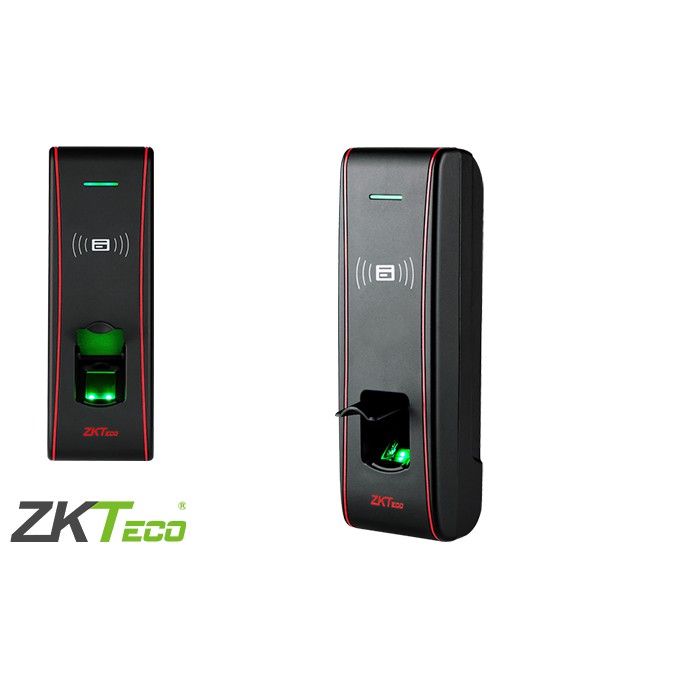

Gambar produk
