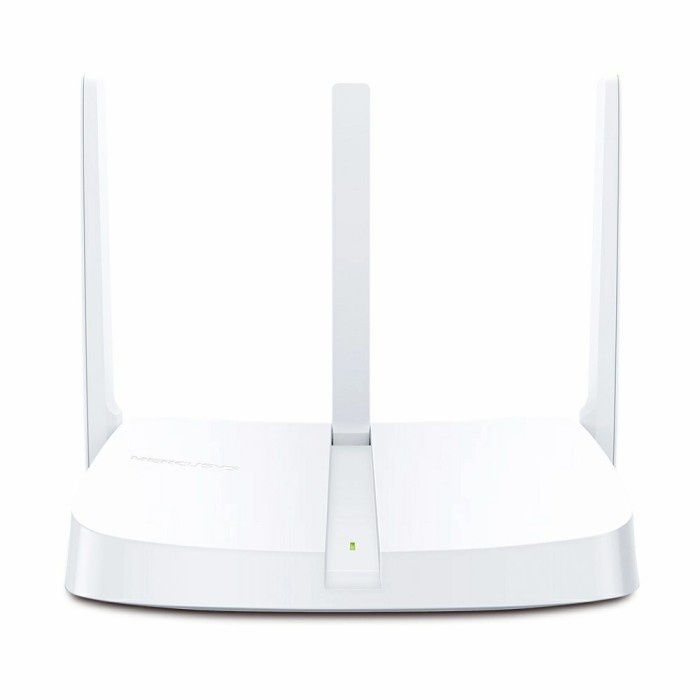

Mercusys MW306R Multi-Mode Wireless N Router

Wireless Standards : IEEE 802.11 b/g/n

Frequency : 2.4-2.5 GHz

WiFi Speeds : 11n: Up to 300Mbps (Dynamic)
11g: Up to 54Mbps (Dynamic)
11b: Up to 11Mbps (Dynamic)

Reception Sensitivity : 270M: -70dBm@10% PER 11M: -87dBm@10% PER
130M: -72dBm@10% PER 6 M: -92dBm@10% PER
54M: -74dBm@10% PER 1 M: -94dBm@10% PER

Transmission Power : <20dBm (EIRP)

Wireless Security : WPA-PSK/WPA2-PSK

Wireless Functions : Enable/Disable Wireless Radio, WDS Bridging

SoftwareWAN Type : Dynamic IP/Static IP/PPPoE/PPTP/L2TP

Access Control : Local Management
Remote Management

DHCP Server, DHCP Client List

Port Forwarding : Virtual Server, UPnP, DMZ

Firewall Security : IP and MAC Address Binding

Guest Network : 2.4GHz Guest Network

HardwareDimensions : 5.8 4.5 1.3 in (147 115 34 mm)

Button
RESET/WPS Button

External Power Supply
5V/0.6A

Antenna Type
3* Fixed Antennas

Ethernet Ports
1* 10/100Mbps WAN Port,
3* 10/100Mbps LAN Ports

OthersPackage Contents
Wi-Fi N Router (MW306R)
Power Adapter
Quick Installation Guide
Ethernet Cable

Environment
Operating Temperature: 0C~40C (32F~104F)
Operating Humidity: 10%~90% Non-Condensing
