Mercusys MW302R Wireless N Router 300Mbps

Detail Mercusys MW302R Wireless N Router 300Mbps

Mercusys MW302R Wireless N Router 300Mbps

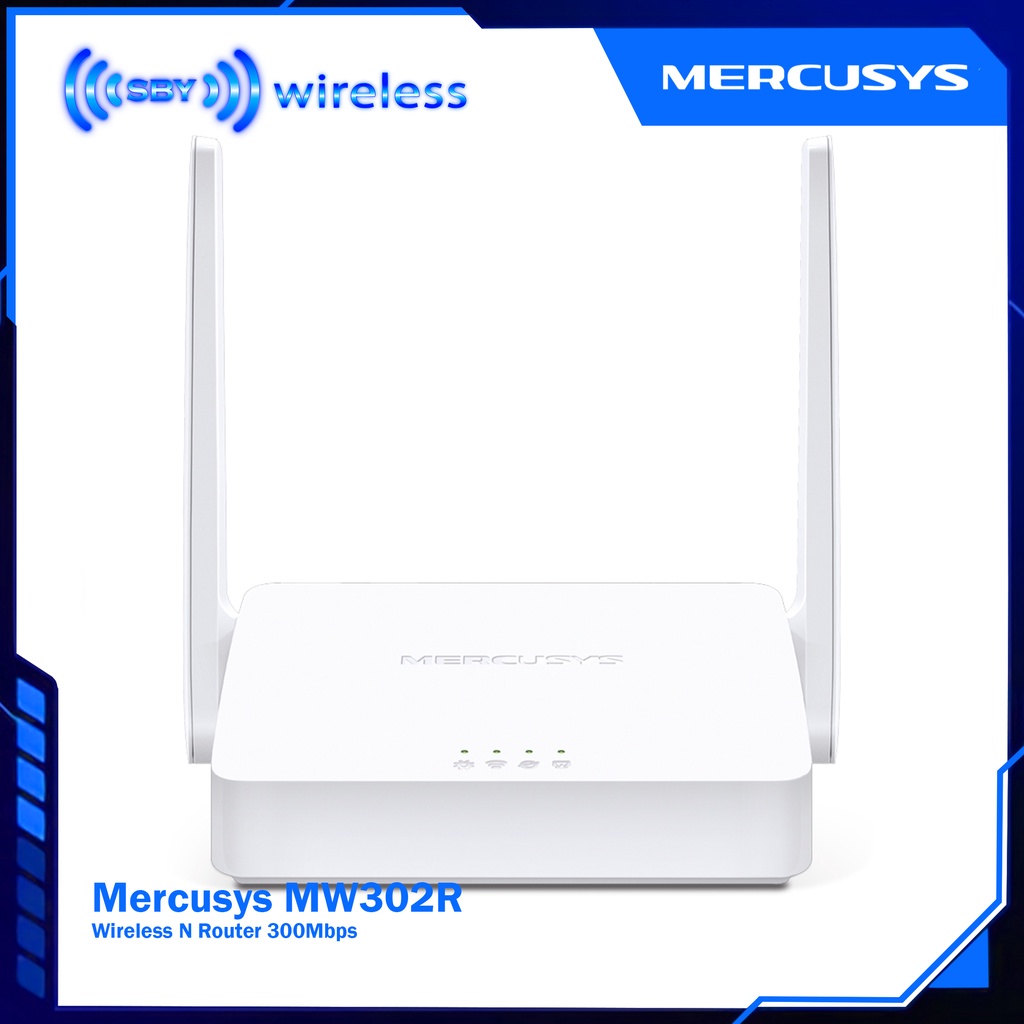

Mercusys MW302R - 300Mbps Multi-Mode Wireless N Router

Fast Wi-Fi for Daily Life — MW302R provides fast and stable connections to meet all your network needs with speeds of up to 300 Mbps
Broader Coverage — Equipped with high gain external antennas to deliver strong Wi-Fi signals to every corner of your home
Multi-Mode — Four modes in one device to satisfy all application scenarios
Easy installation — Intuitive webpage guides you through the setup process in minutes
Active Parental Controls — Establish appropriate access policies to protect children with responsible, safe internet access

Spesifikasi


Wireless

Wireless Standards

IEEE 802.11b/g/n
Frequency

2.4-2.4835GHz
WiFi Speeds

• 11n: Up to 300Mbps (Dynamic)
• 11g: Up to 54Mbps (Dynamic)
• 11b: Up to 11Mbps (Dynamic)
Reception Sensitivity

• 270M: -73dBm@10% PER
• 130M: -75dBm@10% PER
• 54M: -77dBm@10% PER
• 11M: -90dBm@10% PER
• 6 M: -94dBm@10% PER
• 1 M: -96dBm@10% PER
Transmission Power

<20dBm (EIRP)
Wireless Security

WPA-PSK / WPA2-PSK
Wireless Functions

Enable/Disable Wireless Radio, WDS Bridging

Software

WAN Type

Dynamic IP/Static IP/PPPoE/PPTP/L2TP
Management

Access Control, Local Management, Remote Management
DHCP

Server
Port Forwarding

Virtual Server, UPnP, DMZ
Firewall Security

IP and MAC Address Binding
Protocols

IPv4, IPv6
Guest Network

2.4GHz Guest Network

Hardware

Dimensions

114 mm × 94 mm × 26 mm

Button

Reset Button

External Power Supply

5V/0.6A
Antenna Type

2 * 5dBi

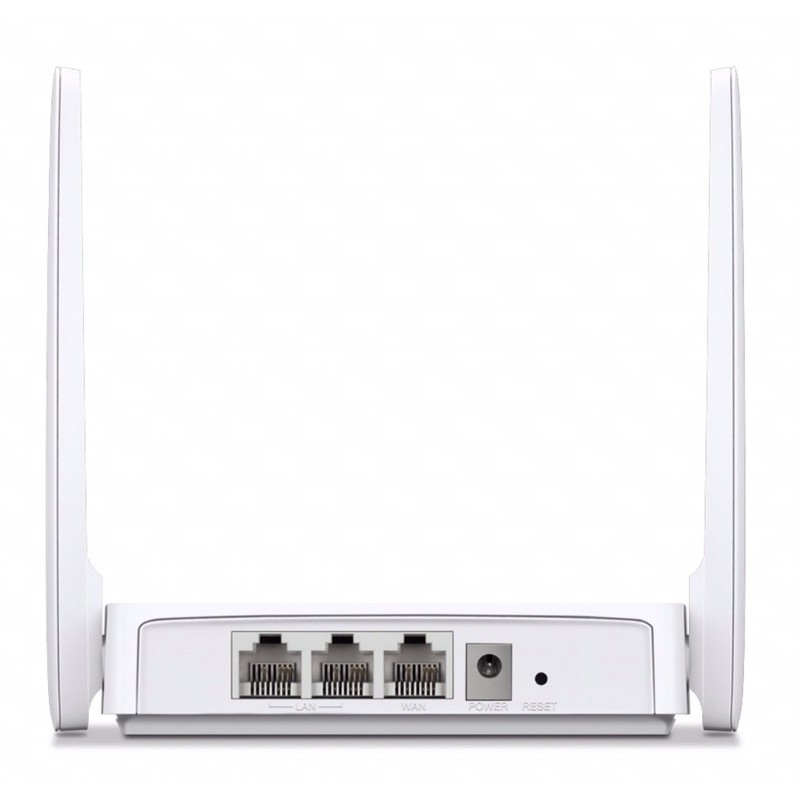

Ethernet Ports

2*10/100Mbps LAN Ports &
1*10/100Mbps WAN Port

Others

Package Contents :

300Mbps Wireless N Router ( MW302R ) x1
Power Adapter x1
Quick Installation Guide
Ethernet Cable x1
Environment

• Operating Temperature: 0°C~40°C (32°F~104°F)
• Storage Temperature: -40°C~70°C (-40°F~158°F)
• Operating Humidity: 10%~90% Non-Condensing
• Storage Humidity: 5%~90% Non-Condensing
