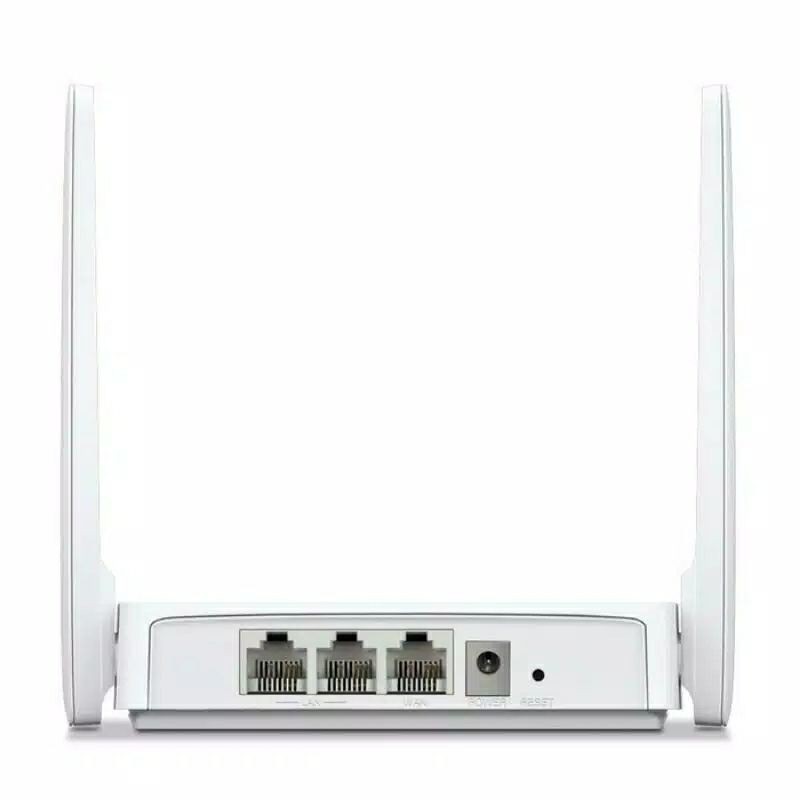

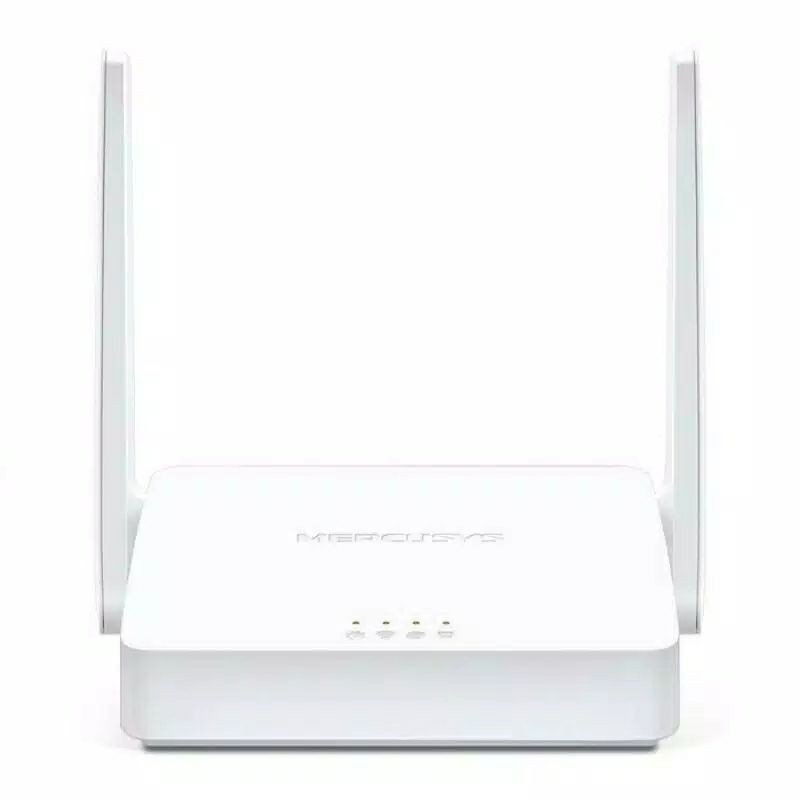

Mercusys MW302R Multi-Mode Wireless N Router 300Mbps

Detail Mercusys MW302R Multi-Mode Wireless N Router 300Mbps

OPERATION MODE : - WISP
- RANGE EXTENDER
- ACCES POINT
- ROUTER
Ethernet Ports
2*10/100Mbps LAN Ports &
1*10/100Mbps WAN Port

Button
Reset Button


External Power Supply
5V/0.6A

Dimensions (W X D X H)
114 mm × 94 mm × 26 mm


Antenna Type
2 * 5dBi

Package Contents
300Mbps Wireless N Router ( MW302R )
Power Adapter
Quick Installation Guide
Ethernet Cable

Wireless Standards
IEEE 802.11b/g/n

Frequency
2.4-2.4835GHz

Signal Rate
• 11n: Up to 300Mbps (Dynamic)
• 11g: Up to 54Mbps (Dynamic)
• 11b: Up to 11Mbps (Dynamic)

Reception Sensitivity
• 270M: -73dBm@10% PER
• 130M: -75dBm@10% PER
• 54M: -77dBm@10% PER
• 11M: -90dBm@10% PER
• 6 M: -94dBm@10% PER
• 1 M: -96dBm@10% PER

Wireless Functions
Enable/Disable Wireless Radio, WDS Bridging

Wireless Security
WPA-PSK / WPA2-PSK

WAN Type
Dynamic IP/Static IP/PPPoE/PPTP/L2TP

DHCP
Server

Port Forwarding
Virtual Server, UPnP, DMZ

Management
Access Control, Local Management, Remote Management

Firewall Security
IP and MAC Address Binding

Guest Network
2.4GHz Guest Network

Protocols
IPv4, IPv6

Environment
• Operating Temperature: 0°C~40°C (32°F~104°F)
• Storage Temperature: -40°C~70°C (-40°F~158°F)
• Operating Humidity: 10%~90% Non-Condensing
• Storage Humidity: 5%~90% Non-Condensing

Transmission Power
<20dBm (EIRP)

Gambar produk
