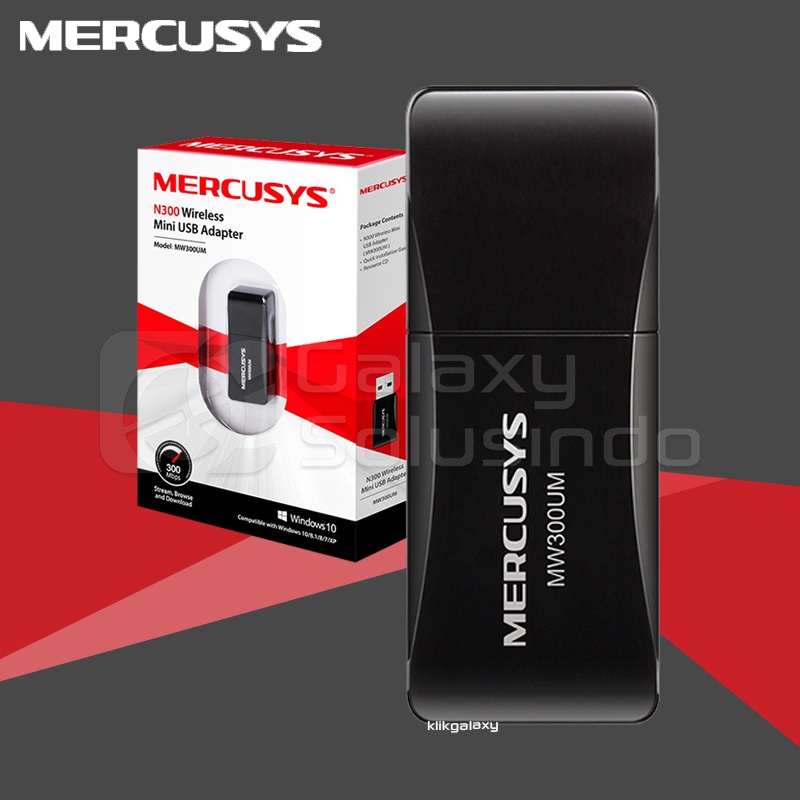

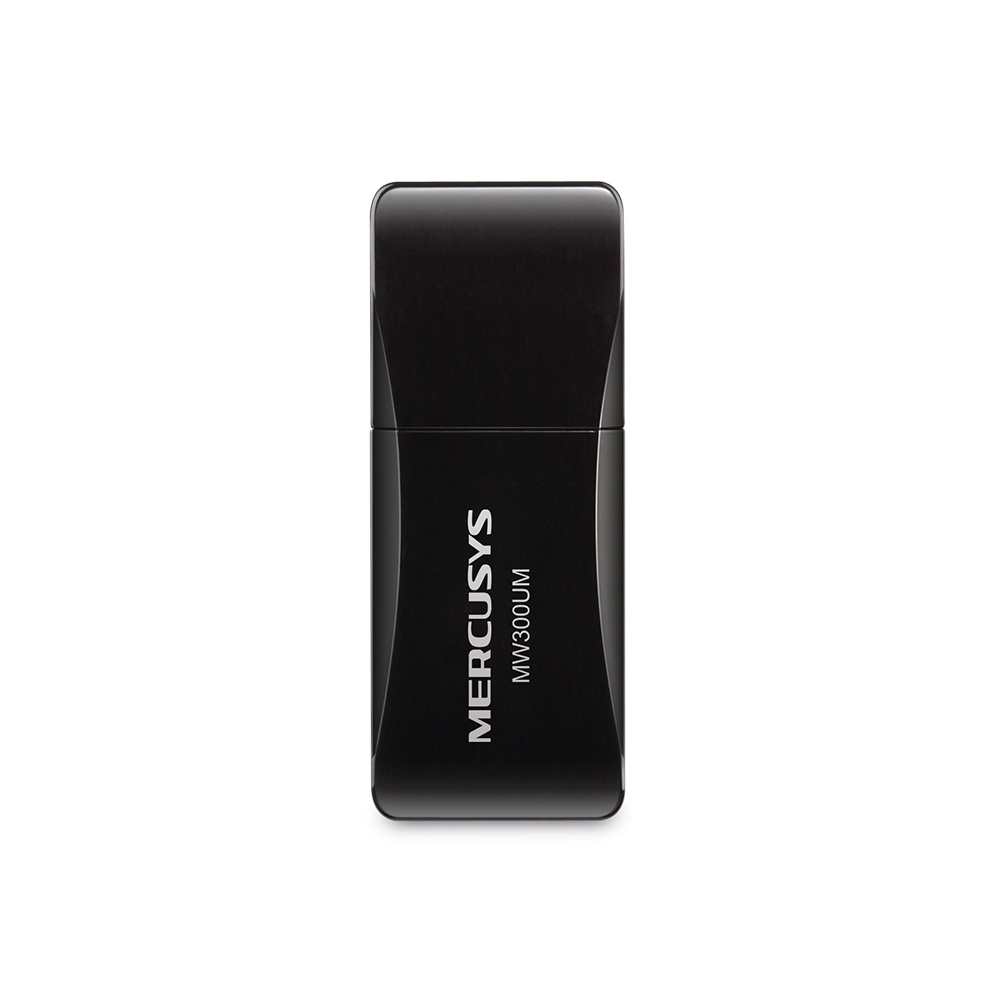

MERCUSYS MW300UM 300Mbps Wireless Mini USB Adapter

Detail MERCUSYS MW300UM 300Mbps Wireless Mini USB Adapter

MW300UM
N300 Wireless Mini USB Adapter

Provides fast 300Mbps Wi-Fi connections for wired devices
Ideal for online gaming, HD streaming, web browsing, and more
Supports Windows 10/8.1/8/7/XP (32/64bit)

SPECIFICATION:

Wireless

Wireless Standards
IEEE 802.11n, IEEE 802.11g, IEEE 802.11b
Frequency
2.400 - 2.4835GHz
WiFi Speeds

11n: Up to 300Mbps(Dynamic)

11g: Up to 54Mbps(Dynamic)
11b: Up to 11Mbps(Dynamic)
Reception Sensitivity

270M: -62dBm@10% PER

130M: -65dBm@10% PER

108M: -68dBm@10% PER

54M: -68dBm@10% PER

11M: -85dBm@8% PER

6M: -88dBm@10% PER
1M: -90dBm@8% PER
Transmission Power
<20dBm
Wireless Security
WEP, WPA/WPA2, WPA-PSK/WPA2-PSK

Hardware

Dimensions
1.69 × 0.68 × 0.33 in. (42.9 × 17.2 × 8.5 mm)
Interfaces
USB 2.0
Antenna Type
Internal

Others

Certifications
CE, ROHS
Package Contents

N300 Wireless Mini USB Adapter

MW300UM

Quick installation guide

Resource CD
Environment

Operating temperature: 0⁰C ~ 40⁰C (32⁰F ~ 104⁰F)

Storage temperature: -40⁰C ~ 70⁰C (-40⁰F ~ 158⁰F)

Operating humidity: 10% ~ 90% Non-Condensing
Storage humidity: 5% ~ 90% Non-Condensing
System Requirements
Windows 10/8.1/8/7/XP (32/64bit)
