Detail Mega ADK 2560 ADK compatible with Google ADK 2012 ORI Grade

STOCK per 3 april = 5 pcs
Mega ADK is a device-based controller that is extremely compact and compatible
with MEGA ADK and Google ADK. Mega ADK can be developed using Google's ADK to
run on Android 2.3.4 or 3.1.
Can connect a large number of sensors and application modules, such as Hall
sensors, button modules, thermistors, accelerometers, LDR, potentiometers, touch
sensors, joystick sensors and MOSFET modules.


Technical specifications

Controller: ATmega2560 Operating
voltage: 5V
Input voltage: 7-12V
Limiting voltage: 6-15V
Digital port: 54 (of which 14 PWM output)
Analog port: 16
IO port Output current: 40 mA
3.3V Power supply output current: 100 mA
Flash: 256 KB of which 8 KB used by bootloader
SRAM: 8 KB
EEPROM: 4 KB
Crystal: 16 MHz


Relevant information



MEGA ADK USB Driver: ADK Instructions for use:
and USB_Host_Shield Library File:
library file: notes

Hardware environment:

2.3.4 and above Mobile or Android 3.1 and above Tablet PC x1
PC x1
ADK Board x1

Software Environment:

91 mobile assistant for d software x1 (for installing ADK test software to the
phone)
ADK test package download address
library download address: http: //
www•arduino•cc/playground/Main/CapSense
[ testing the code in the package can be compiled to generate demokit.apk test
software, this step is more complicated, in order to simplify the test steps, we
provide compiled generated demokit.apk test software, Can contact us to obtain

Demokit A

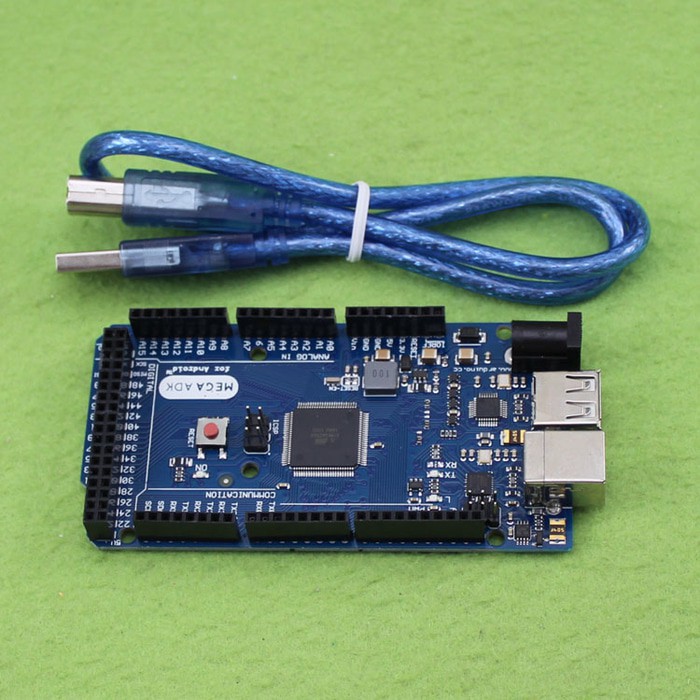

Gambar produk
