Media Converter 6 Port FO 2 Port LAN - Fiber Switch Optic 6 SC 2 RJ45 Dengan EU Adapter

Detail Media Converter 6 Port FO 2 Port LAN - Fiber Switch Optic 6 SC 2 RJ45 Dengan EU Adapter

Video perkenalan produk Media Converter 6 Port FO 2 Port LAN - Fiber Switch Optic 6 SC 2 RJ45 Dengan EU Adapter. Sumber: Shopee.

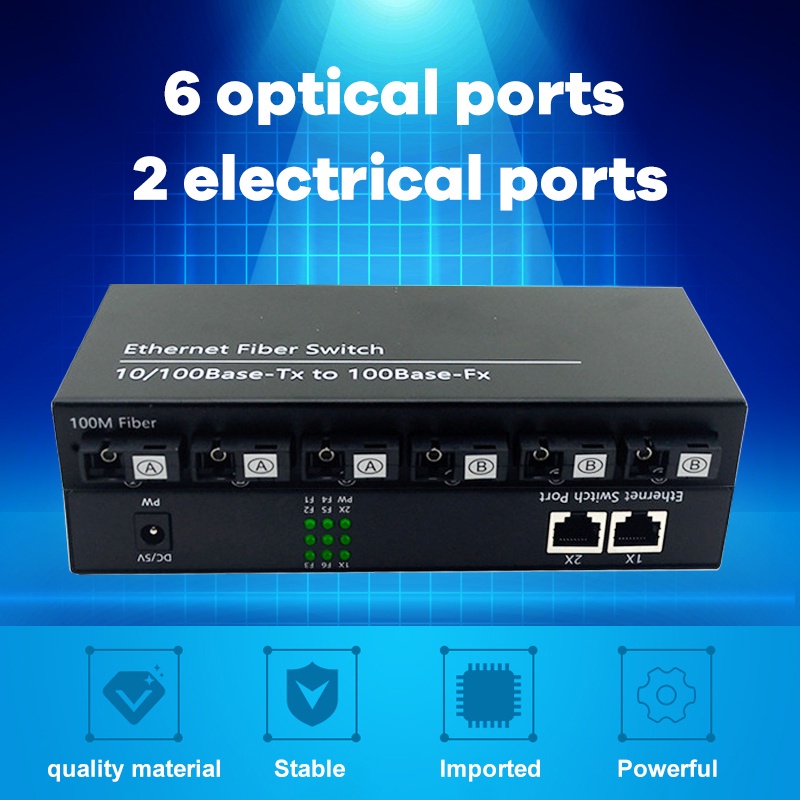

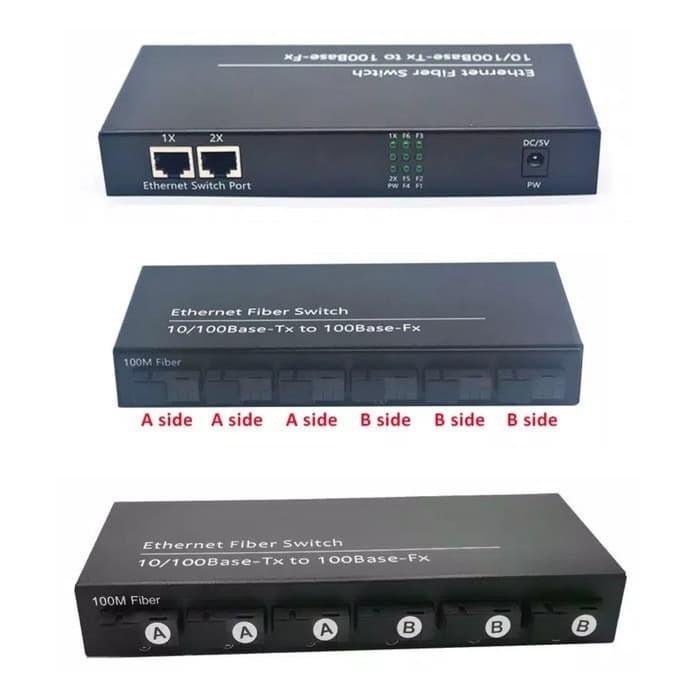

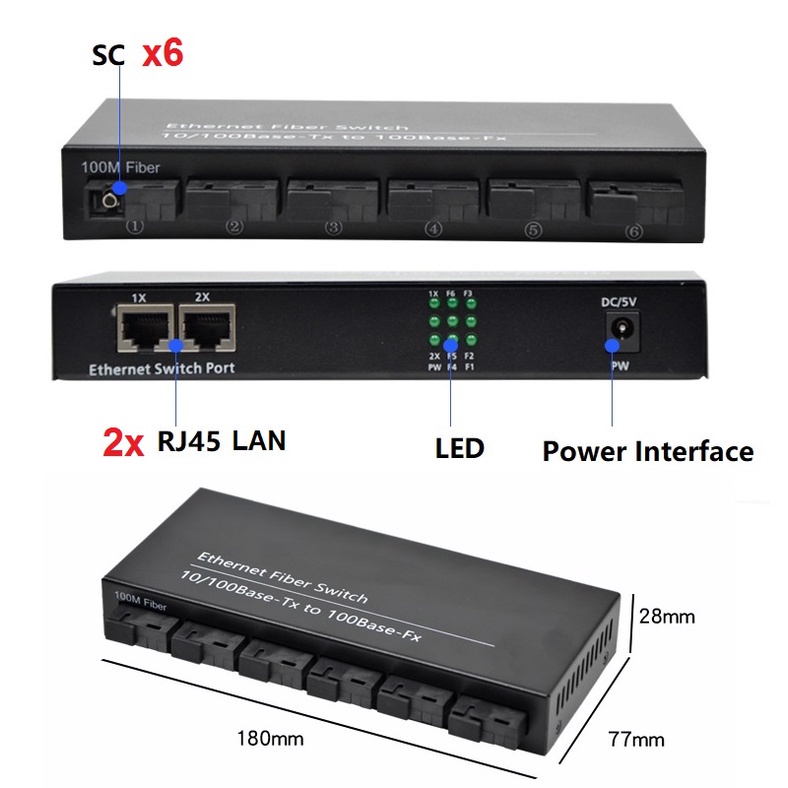

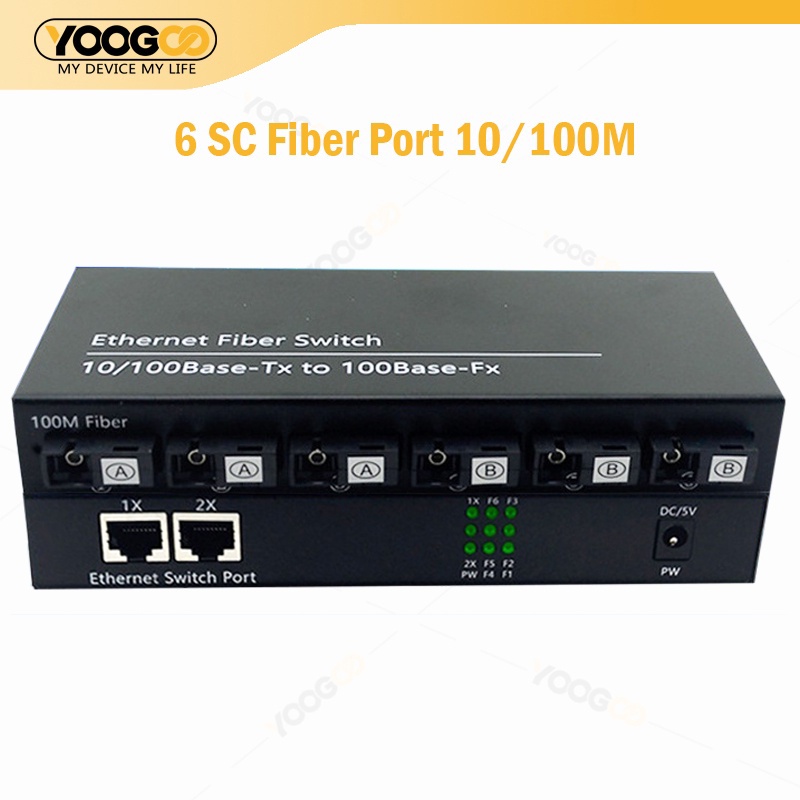

Ethernet fiber optical media converter digital video 6SC-2RJ45 UTP LAN
1. Support the switch between 10/100Base-TX and 100Base-FX
2. 6*155Mbps full-duplex fiber ports and 2*100M Ethernet ports with auto-negotiation function
3. Support 100M speed rate, MDI/MDIX and half/full-duplex with auto-negotiation function
4. Each port has the complete LED Indicator light
5. Support single mode single fiber,single mode dual fiber ,multi-mode dual fiber and SFP slot
6. Support IEEE802.1d Spanning Tree
7. Support high performance QoS function on each port
8. Support 12V voltage input
9. Support IEEE 802.3x flow control and back pressure control
10. Require no configuration and will instantly operate as soon as you power it up.
11. Low power consumption chip with heat sink built in to ensure longtime efficient operation

Specifications:
Standards
IEEE802.3 10Base-T
IEEE802.3u 100Base-TX/FX
IEEE802.3z 1000Base-SX/LX
IEEE802.3x Flow control
IEEE802.1p QoS
IEEE802.1d Spanning Tree
Ethernet Port

Connector: RJ45
Data Rate:10/100M or 10/100/1000M
Distance: 100m
UTP Type: UTP-5E or higher level

Fiber Port
Connector: SC/FC/ST/SFP slot
Data Rate: 155M or 1.25Gbps
Optical Wavelength: 850nm/1310nm/1490nm/1550nm
Distance: 550m～120km

Performance
Processing Type: Store and Forward
MAC Table Size:4K/6K/8K
Buffer Space: 500kbs/1Mbit/2Mbit
Jumbo Packet: 1518 bytes
Back bandwidth: 3.8G/5.6G/7.2G
Time Delay: ＜150μs

Power
Power type: external power supply
Input Voltage: AC100V～240V 50/60Hz
Connector: DC Socket
Working Voltage: 12V
Power Consumption: 2.2W～3.5W

Transmissin Distance
Twisted Pair: 100m (CAT5e, CAT6 cables)
Muti-mode: 2km
Single-mode: 3/20/40/60/80/100km
MTBF 100, 000 hours

Environment
Storage Temperature: -40～70℃
Operating Temperature: -10～55℃
Relative Humidity: 5-90% ( no condensation)
