Media Converter 6 Port 4 Port Fiber 2 FO SC Port 4 LAN Rj45 3 Port Optik Optic Transceiver Ethernet Switch PCB 3 SC 3 RJ45 4 SC 4 RJ45 6F2E 2F4E 3F3E 4F4E 4Port dengan Adapter

Detail Media Converter 6 Port 4 Port Fiber 2 FO SC Port 4 LAN Rj45 3 Port Optik Optic Transceiver Ethernet Switch PCB 3 SC 3 RJ45 4 SC 4 RJ45 6F2E 2F4E 3F3E 4F4E 4Port dengan Adapter

Video perkenalan produk Media Converter 6 Port 4 Port Fiber 2 FO SC Port 4 LAN Rj45 3 Port Optik Optic Transceiver Ethernet Switch PCB 3 SC 3 RJ45 4 SC 4 RJ45 6F2E 2F4E 3F3E 4F4E 4Port dengan Adapter. Sumber: Shopee.

Tersedia dalam 6 variant :

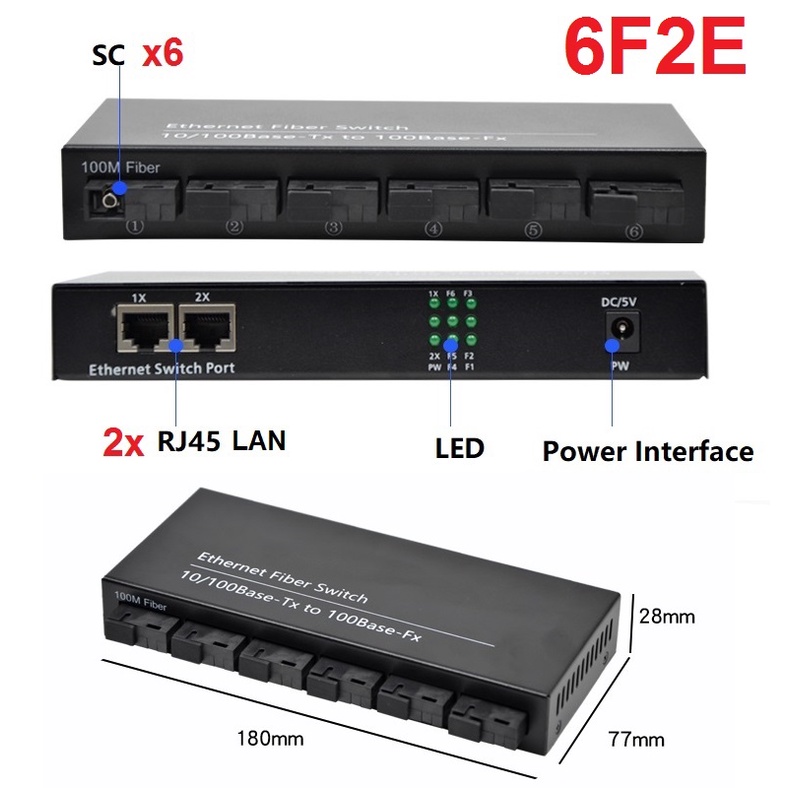

- 2F4E (2 Fiber SC Optik Fiber + 4 RJ45 Ethernet)
- 3F3E (3 Fiber SC Optik Fiber + 3 RJ45 Ethernet)
- 4F4E (4 Fiber SC Optik Fiber + 4 RJ45 Ethernet)
- 6F2E (6 Fiber SC Optik Fiber + 2 RJ45 Ethernet)
- PCB 2F4E (Hanya Mesin )
- PCB 6F2E (Hanya Mesin)

(Kita juga ada HTB3100AB /100MB dan HTBGS-03AB/1000MB, jika perlu, bisa cek pada etalase toko)

Packing List (sesuaikan foto variant)
- 1 x Optical Converter
- 1 x 220V EU Adaptor
- 1 x User Manual
- 1 x Packing Box

Technical Parameters
1. Standard Protocol:IEEE802.3Z/AB 1000Base-T/SX/LX
2. Transfer rate: Electrical interface: 10/100/1000Mbps, Fiber interface: 1.25Gbps
3. Interface: one UTP RJ-45, interface One SC interface
4. Operation mode: full duplex mode or half duplex mode
5. Power supply parameter: Build in: 110-265V AC 48VDC
6. Environmental temperature: 0°C-60 °C
7. Relative humidity: 5%-90%
8. TP cable: 5E, CAT 6
9. Transfer fiber: multi-mode: 50/125, 62.5/125 μm , single mode:: 8.3/125, 8.7/125, 9/125 or 10/125 μm
10.Support IEEE 802.3x flow control and back pressure control
11.Require no configuration and will instantly operate as soon as you power it up
12.Low power consumption chip with heat sink built in to ensure longtime efficient operation
13.Support high performance QoS function on each port
14.Each port has the complete LED Indicator light
15.Support single mode single fiber,single mode dual fiber ,multi-mode dual fiber and SFP slot

Performance
Processing Type: Store and Forward
MAC Table Size:4K/6K/8K
Buffer Space: 500kbs/1Mbit/2Mbit
Jumbo Packet: 1518 bytes
Back bandwidth: 3.8G/5.6G/7.2G
Time Delay: ＜150μs
Power type: external power supply
Input Voltage: AC100V～240V 50/60Hz
Connector: DC Socket
Working Voltage: 5V
Power Consumption: 2.2W～3.5W
Transmissin Distance
Twisted Pair: 100m (CAT5e, CAT6 cables)
Muti-mode: 2km
Single-mode: 3/20/40/60/80/100km
MTBF
Environment
Storage Temperature: -40～70℃
Operating Temperature: -10～55℃
Relative Humidity: 5-90% ( no condensation)
Dimension: 215×107×26mm
PCB main board

#fiber tranceiver#Media Converter# Fiber Transceiver #Ethernet Switch #6F2E #2F4E #3F3E #4F4E #Optik 2 #SC 4 RJ45 #ethernet fiber #fiber switch #rj45 #fiber optik #fiber optic #gigabit #optical #internet #CAT6
