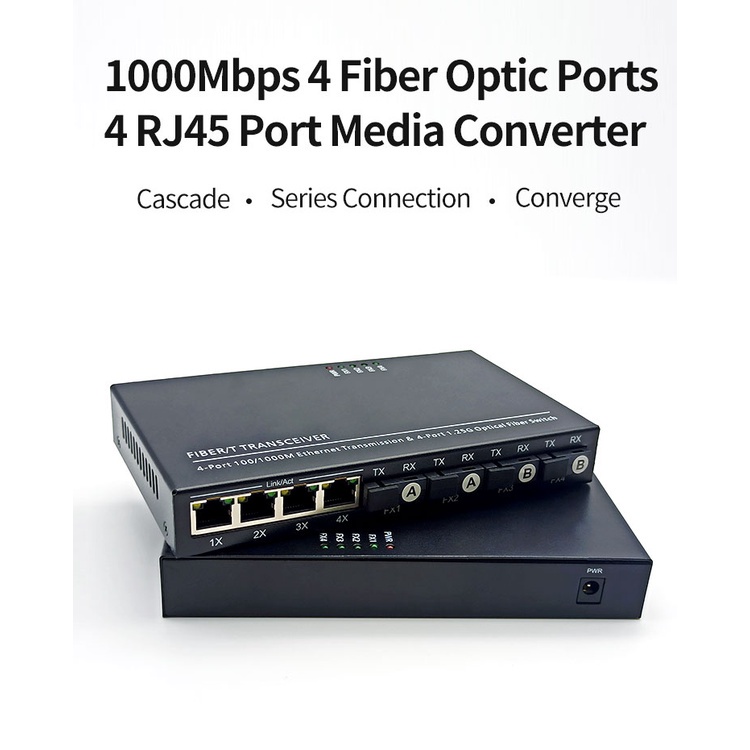

Media Converter 4 Port FO Optic Fiber 4FO-4LAN 4FIBER 4ETH Ethernet LAN Switch Fiber Optic Konverter Fiber Optik 4 SC 4 LAN 4F4E 4O4E

Detail Media Converter 4 Port FO Optic Fiber 4FO-4LAN 4FIBER 4ETH Ethernet LAN Switch Fiber Optic Konverter Fiber Optik 4 SC 4 LAN 4F4E 4O4E

Video perkenalan produk Media Converter 4 Port FO Optic Fiber 4FO-4LAN 4FIBER 4ETH Ethernet LAN Switch Fiber Optic Konverter Fiber Optik 4 SC 4 LAN 4F4E 4O4E. Sumber: Shopee.

4FIBER 4ETH10/100 2 A 2 B Fiber 4 Ethernet

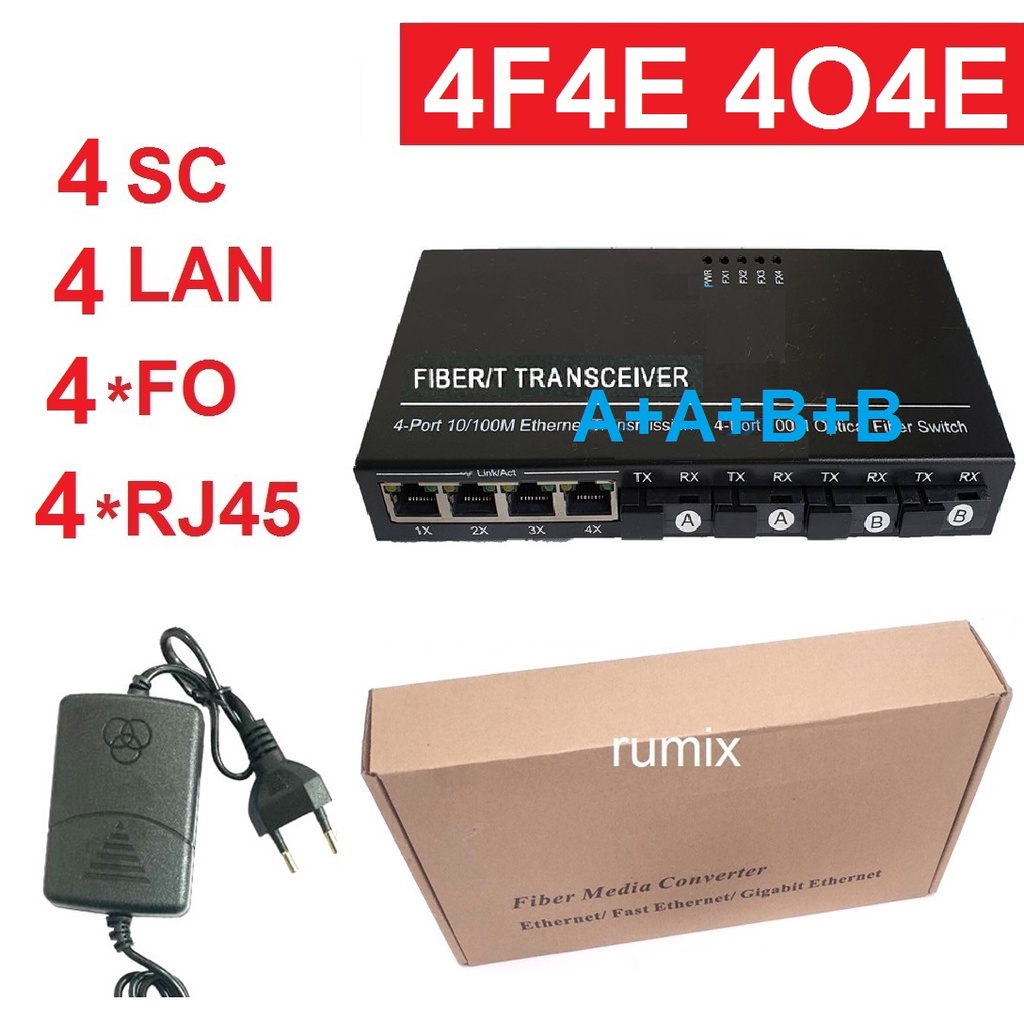

Packing List
- 1 X Optical Converter
- 1 x 220V EU Adaptor
- 1 x User Manual
- 1 x Packing Box

Fitur Utama :
1. Dukungan beralik antara 10/100Base-TX dan 100Base-FX
2. 4*155Mbps full-duplex fiber Port dan 4*100M Ethernet port dengan auto-negotiation fungsi
3. Dukungan 100M tingkat kecepatan. MDI/MDIX dan setengah/full-duplex dengam auto -negosiasi fungsi
4. Setiap port memiliki lengkap lampu Indikator LED
5. Dukungan single mode tunggal, single mode dual multi mode dual dan SFP slot
6. Dukungan IEEE802.1d Spanning Tree
7. Dukungan kinerja tinggi QoS fungsi pada setiap port
8. Mendukung 5V tegangan input
9. Dukungan IEEE 802.3x flow control dan kembali kontrol tekanan
10. Tidak memerlukan konfigurasi dan akan langsung beroperasi segera

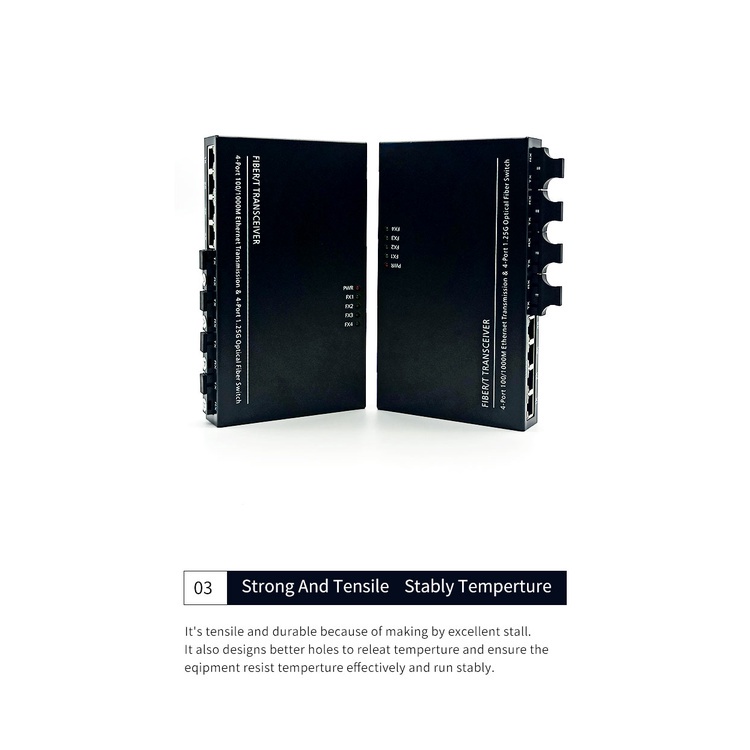

11. Konsumsi daya rendah chip dengan heat sink dibangun untuk memastikan lama operasi yang efisien

Technical Parameters
1. Standard Protocol:IEEE802.3Z/AB 1000Base-T/SX/LX
2. Transfer rate: Electrical interface: 10/100/1000Mbps, Fiber interface: 1.25Gbps
3. Interface: one UTP RJ-45, interface One SC interface
4. Operation mode: full duplex mode or half duplex mode
5. Power supply parameter: Build in: 110-265V AC 48VDC
6. Environmental temperature: 0°C-60 °C
7. Relative humidity: 5%-90%
8. TP cable: 5E, CAT 6
9. Transfer fiber: multi-mode: 50/125, 62.5/125 μm , single mode:: 8.3/125, 8.7/125, 9/125 or 10/125 μm
10.Support IEEE 802.3x flow control and back pressure control
11.Require no configuration and will instantly operate as soon as you power it up
12.Low power consumption chip with heat sink built in to ensure longtime efficient operation
13.Support high performance QoS function on each port
14.Each port has the complete LED Indicator light
15.Support single mode single fiber,single mode dual fiber ,multi-mode dual fiber and SFP slot

Performance
Processing Type: Store and Forward
MAC Table Size:4K/6K/8K
Buffer Space: 500kbs/1Mbit/2Mbit
Jumbo Packet: 1518 bytes
Back bandwidth: 3.8G/5.6G/7.2G
Time Delay: ＜150μs

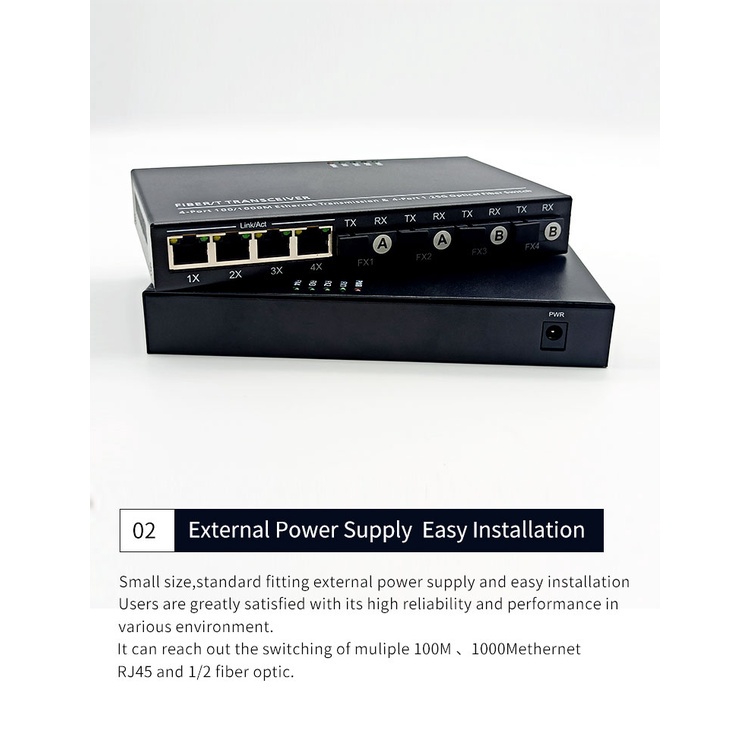

Power type: external power supply
Input Voltage: AC100V～240V 50/60Hz
Connector: DC Socket
Working Voltage: 5V
Power Consumption: 2.2W～3.5W
Transmissin Distance
Twisted Pair: 100m (CAT5e, CAT6 cables)
Muti-mode: 2km
Single-mode: 3/20/40/60/80/100km
MTBF
Environment
Relative Humidity: 5-90% ( no condensation)
PCB main board
