Detail Media Converter 25 KM/Sc 10/1000Mbps Ethernet Fiber Optic 1 Pasang A-B

High quality 10/100Mbps Ethernet to Fiber Optic Media Converter 25KM SC (1 Pair/1Pasang)

High Quality!! 100% Brand New
MERK : netLINK
Model: HTB-1100S A/B
Topologi:
SWITCH <=> lan <=> MC A/B<=> fo <=> MC B/A<=> lan <=> SWITCH atau
Gedung1= Switch RJ45 MediaConverterA/B FO max 20km MediaConverterB/A RJ45 Switch = Gedung2

Features:
-An RJ45 ports and a single-fiber SC optical port,to achieve optical signal conversion between 10/100base TX twisted pair (Ethernet )and 100base FX (fiber optic);
-Core optical fiber can be completed in just one way signal transmission compared to dual fiber optic data transmission mode to improve the quantity doubled;
-Compliance with IEEE802.3 10Base-T and IEEE802.3u 100Base-TX, 100Base-FX standards;
-Has 10M/100M adaptive capacity;
-Ethernet interface can adaptively direct line / crossover cable connection;
--Support full / half duplex mode;
-Support IEEE802.3X duplex flow control and half-duplex backpressure flow control;
-Supports broadcast storm prevention function;
-1916 Byte support large data frame ( optional );
-Built- in lightning protection circuit , which can greatly reduce the damage caused by lightning induction;
-UTP up to 100 meters; longest 100 km single-mode fiber;
-Six LED indicators: Power, TX 100, TX Link / Act, FX 100, FX Link / Act, FDX / Col;easy to monitor the working status of the transceiver and determine the cause of the fault;

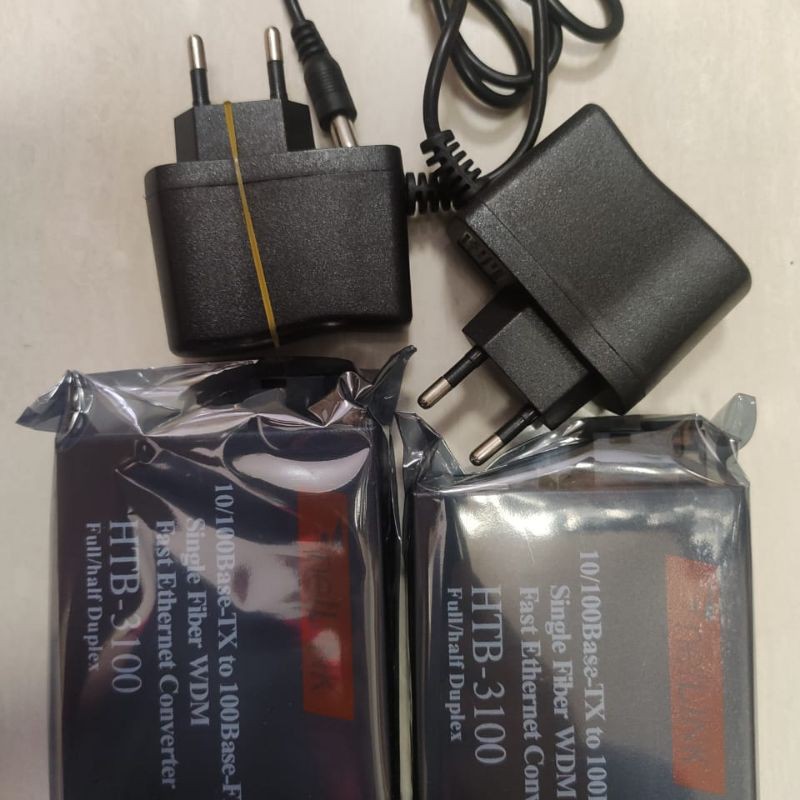

-There are external, internal power supply of two types: AC100-260V /DC5V switching power supply;
-Ambient temperature: 0-70 degree
-Humidity: 5% to 90%
-Dimensions: 95*71*25mm

Fiber Optic Parameters:

Model: HTB-1100S
Fiber optic type: Single mode
Connector type: SC
Transmit Wave length: 1310/1550nm
Transmission distance: 25 Km
Min TX PWR: -9.0 dBm
Max TX PWR: -3 dBm
Sensitivity: -31.0 dBm
Link Budget: 22.0 dBm
