MC33078 MC33078DR2G SOIC-8 Original On Semicon

Detail MC33078 MC33078DR2G SOIC-8 Original On Semicon

Harga per pcs

Manufacturer: ON Semiconductor
Product Category: Operational Amplifiers - Op Amps
RoHS: Details
Mounting Style: SMD/SMT
Package/Case: SOIC-8
Output Current per Channel: 29 mA
Number of Channels: 2 Channel
GBP - Gain Bandwidth Product: 16 MHz
SR - Slew Rate: 7 V/us
CMRR - Common Mode Rejection Ratio: 80 dB
Ib - Input Bias Current: 750 nA
Vos - Input Offset Voltage: 2 mV
Operating Supply Current: 4.1 mA
Minimum Operating Temperature: - 40 C
Maximum Operating Temperature: + 85 C
Shutdown: No Shutdown
Series: MC33078
Packaging: Cut Tape
Packaging: MouseReel
Packaging: Reel
Amplifier Type: Low Noise Amplifier
Height: 1.5 mm (Max)
Length: 5 mm (Max)
Product: Operational Amplifiers
Supply Type: Dual
Technology: Bipolar
Width: 4 mm (Max)
Brand: ON Semiconductor
Dual Supply Voltage: +/- 9 V, +/- 12 V, +/- 15 V
en - Input Voltage Noise Density: 4.5 nV/sqrt Hz
In - Input Noise Current Density: 0.5 pA/sqrt Hz
Maximum Dual Supply Voltage: +/- 18 V
Minimum Dual Supply Voltage: +/- 5 V
Operating Supply Voltage: +/- 5 V to +/- 18 V
Product Type: Op Amps - Operational Amplifiers
PSRR - Power Supply Rejection Ratio: 80 dB
Subcategory: Amplifier ICs
Vcm - Common Mode Voltage: Negative Rail + 2 V to Positive Rail - 2 V
Voltage Gain dB: 110 dB

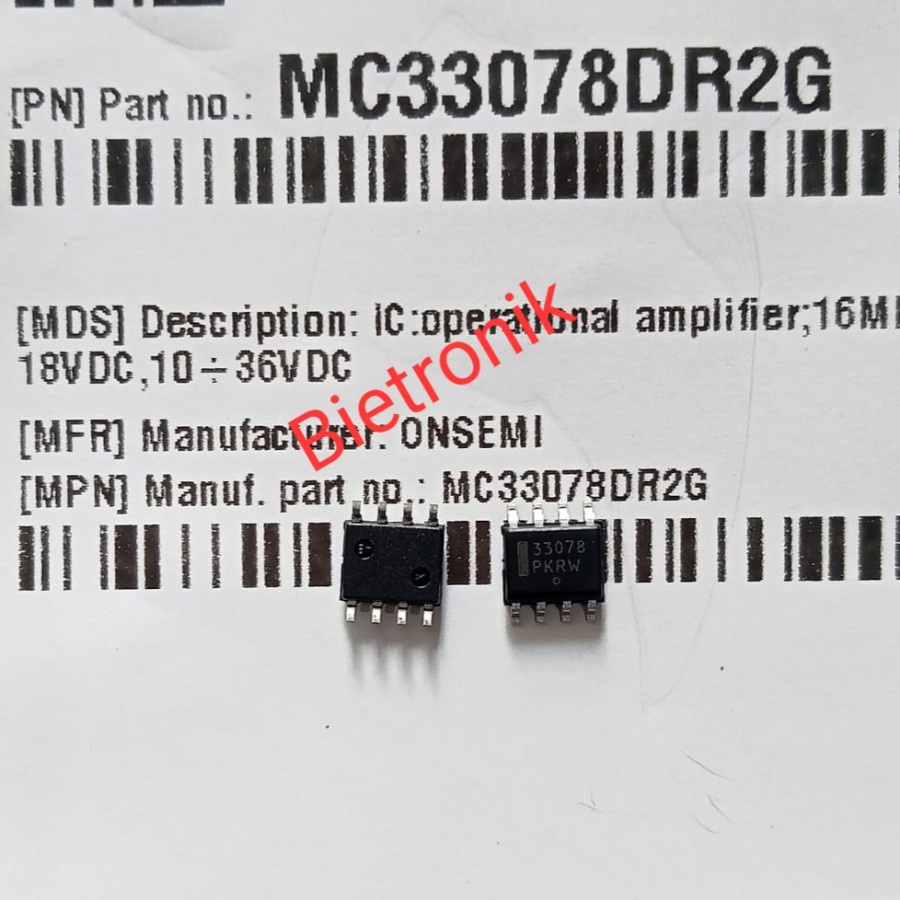

Gambar produk
