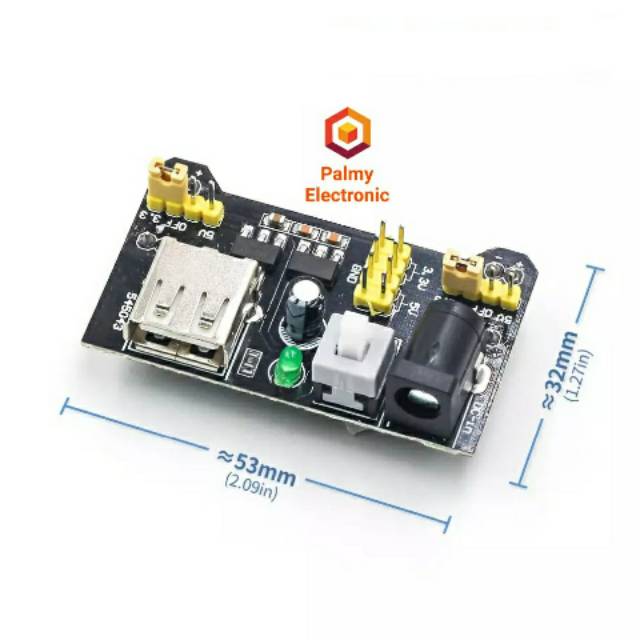

MB102 Modul Power Supply Breadboard

Detail MB102 Modul Power Supply Breadboard

Isi Paket :
- 1pcs Power Supply Module for MB102 Breadboard

Modul ini merupakan modul power supply step down (7-12 to 3.3V/5V) yang dapat dipasang langsung pada pin-hole line VCC/GND breadboard MB102. Dengan modul ini, anda dapat men-supply tegangan DC (3.3V/5V) pada line VCC/GND breadboard anda dengan mudah, tanpa perlu lagi men-jumper dari eksternal power supply. Untuk dapat bekerja, modul ini memerlukan catu daya DC 7-12V yang bisa anda dapatkan dari Adaptor DC atau power supply switching (tidak termasuk dalam paket).

Features

Breadboard power supply module, with 5 V, 3.3 V output voltages

Apply to MB102 Standard breadboard

Input voltage: 6.5-12 V (DC) or 5V USB power supply

Output voltage: 3.3V and 5V can switch over

Maximum output current:
Input voltage ON/OFF switch

Independent control of upper and Lower Bread Board Power Rails. Can switch over to 0 V, 3.3 V, 5 V using jumpers on any rail.

On-board two groups of 3.3V, 5V DC output plug pin, convenient external lead use.

Connectors:

1x Barrel 5mm Connector (center +ve) for Input Power

1x USB connector for 5V input or 5V output

4x 2Pin Headers pointing downward for 3.3V or 5V output

1x 2×4 Header for 3.3V and 5V output

2x 1×4 selection jumper for 3.3V/OFF/5V

#modulpowersupply #breadboard #powersupply

Gambar produk
