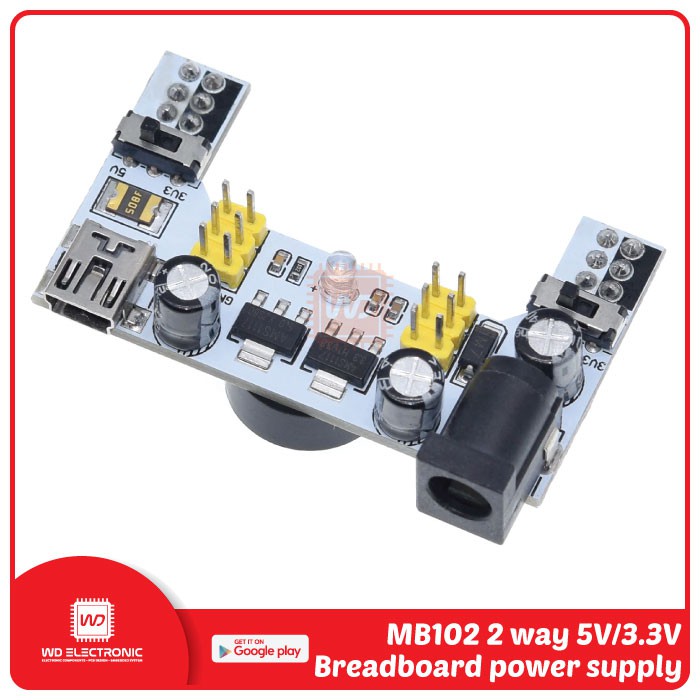

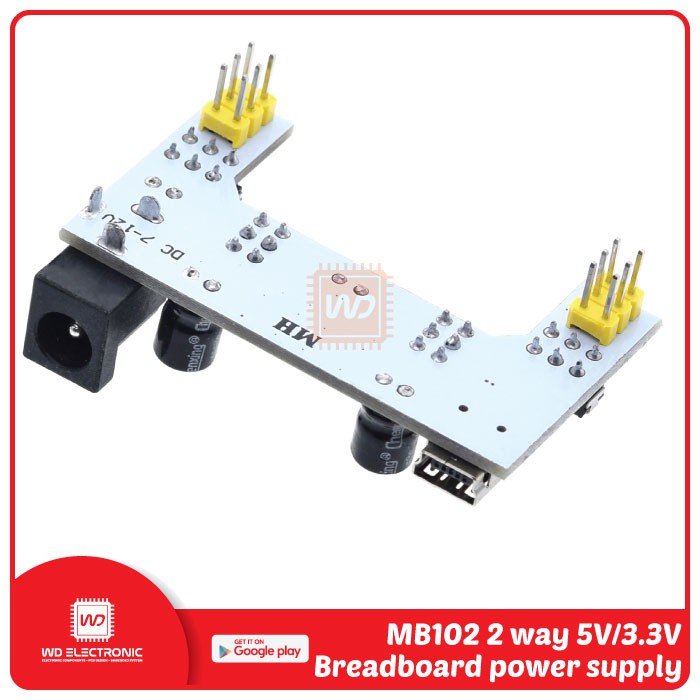

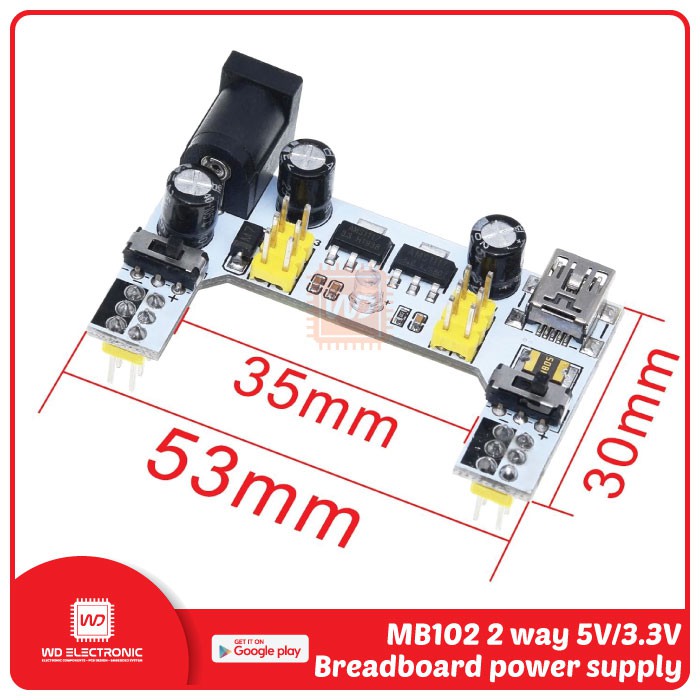

MB102 Breadboard Power Supply DC 6.5-12V MB102 White

Detail MB102 Breadboard Power Supply DC 6.5-12V MB102 White

Hi #RekanEasyWare ...
EasyWare Part#: EP000695

Note:
- Breadboard power supply ini menggunakan input MiniUSB

The manufacturer may make revision changes to their product, changing their voltage regulators and components. You should therefore always follow the instructions that came with your product.
When you receive your board, it is a good idea to check the output voltage levels with a digital meter to make sure that it is operating correctly and providing the correct voltage levels. You should get exactly 3.3 V and 5 V at the outputs. Although the manual states the maximum input voltage to be 12 V, it is better to keep to the low range such as 6.5 V.
You should thoroughly check your breadboard project circuit, and double check all the voltages before you connect it to anything else.

SPESIFIKASI :
- Locking ON / OFF Switch
- LED Power Indicator
- Input Voltage: 6.5 V to 12 V (DC)
- Output Voltage: 3.3 V / 5 V
- Maximum Output Current: 700 mA
- Power Rails 0 V, 3.3 V, 5 V on Breadboard
- Two Groups of Header Pins

Gambar produk
