MAX7219 8x8 LED Dot Matrix Display Module control MCU Kit SMD

Detail MAX7219 8x8 LED Dot Matrix Display Module control MCU Kit SMD

Deskripsi MAX7219 MAX 7219 8x8 LED Dot Matrix Display Module control MCU Kit SMD
Description :
- Single module can drive an 8*8 dot matrix common cathode(1088as) / common anode(1088bs)
- Module Operating voltage: 5V
- Module dimensions : length 3.2 cm X 3.2 cm wide X 1.3 cm high
- Holes with four screws, diameter 3mm
- Modules with input and output interfaces, support for cascading multiple modules

Wiring instructions :
- On the left block to an input port, an output port on the right.
- When the control of a single module, simply enter the port received a CPU
- When more than 3 modules cascaded output input termination CPU, the input output termination module of the first two modules of the first one, the first two modules of the termination input terminal of the three modules, and so on

Take 51 MCU as an example:

VCC → 5V

GND → GND

DIN → P2.0

CS → P2.1

CLK → P2.2

Package includes :

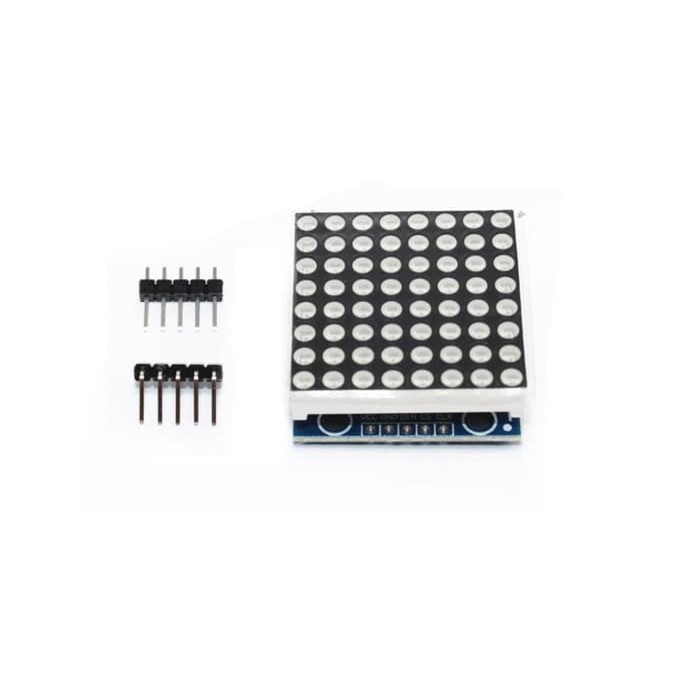

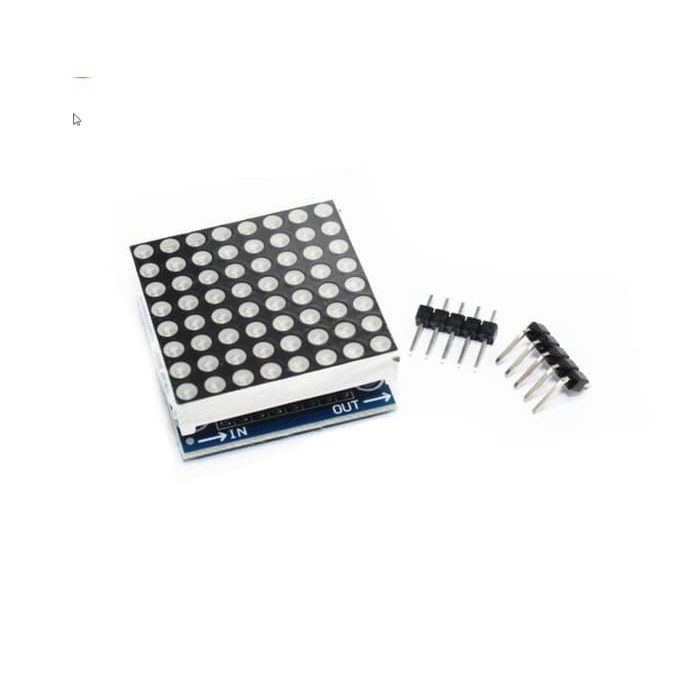

1x PCB Board
1x 8*8 Dot Matrix
2x 5P Bent Single Pin
2x 8P Round Hole Board
