Detail MAX485ESA MAX485 ESA MAX 485 RS422/RS485 SOP8 SOP-8 SMD SMT

Description:
The MAX485ESA is low-power transceivers for RS-485 and RS-422 communication.
IC contains one driver and one receiver.
The driver slew rates of the MAX485 is not limited, allowing them to transmit up to 2.5Mbps.

Feature:
Function:Transceiver
Data Rate:2.5 Mb/s
Number of Drivers:1 Driver
Number of Receivers:1 Receiver
Operating Supply Voltage:5 V
Operating Supply Current:500 uA
Minimum Operating Temperature:- 40 C
Maximum Operating Temperature:+ 85 C
Mounting Style:SMD/SMT
Package / Case:SOIC-8 Narrow
Brand:Maxim Integrated
Height:1.5 mm (Max)
Length:5 mm (Max)
Number of Channels:1 Channel

SPEK:
Product Name : Transceivers;
Type : MAX485ESA;
Input Voltage Range : -7-12V;
Temperature Range : 0 Degree to 70 Degree
Data rate : 2.5Mbps;

Gambar produk

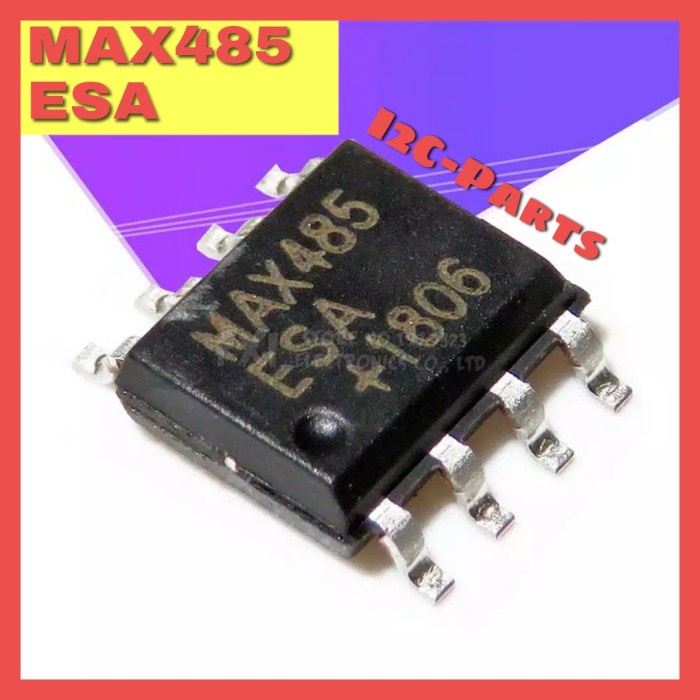

MAX485ESA MAX485 ESA MAX 485 RS422/RS485 SOP8 SOP-8 SMD SMT
