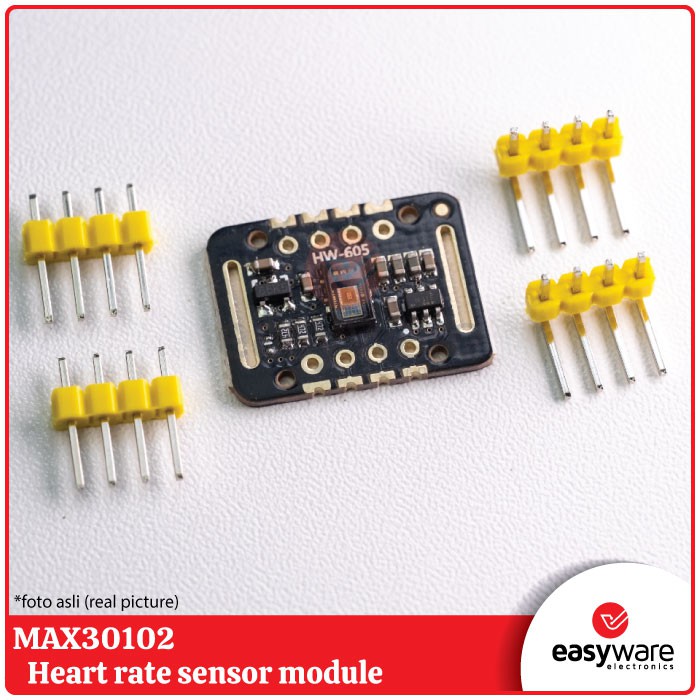

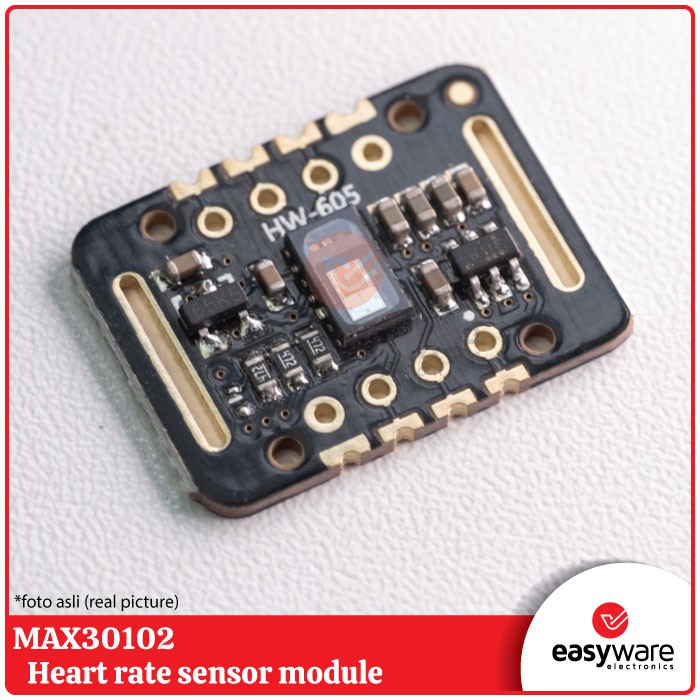

MAX30102 Heart rate sensor module
Deskripsi singkat
Elektronik > Elektronik Lainnya > MAX30102 Heart rate sensor module
- Pengiriman Ekspres
- Barang yang diperiksa
- Bayar di tempat berlaku
- Kualitas, Prestise
- Pengembalian produk
- Dukung pembuatan faktur
Produk Terkait
Detail MAX30102 Heart rate sensor module
Hi #RekanEasyWare ...EasyWare Part#: EP001784
Specification:
- LED peak wavelength: 660nm/880nm.
- LED power supply voltage: 3.3~5V.
- Detection Signal Type: Optical Reflection Signal (PPG).
- Output Signal Interface: I2C Interface.
- Communication Interface Voltage: 1.8 ~3.3V~ 5V
- Reserve Mounting Hole Size: 0.5x8.5mm/0.02x0.33Inches.

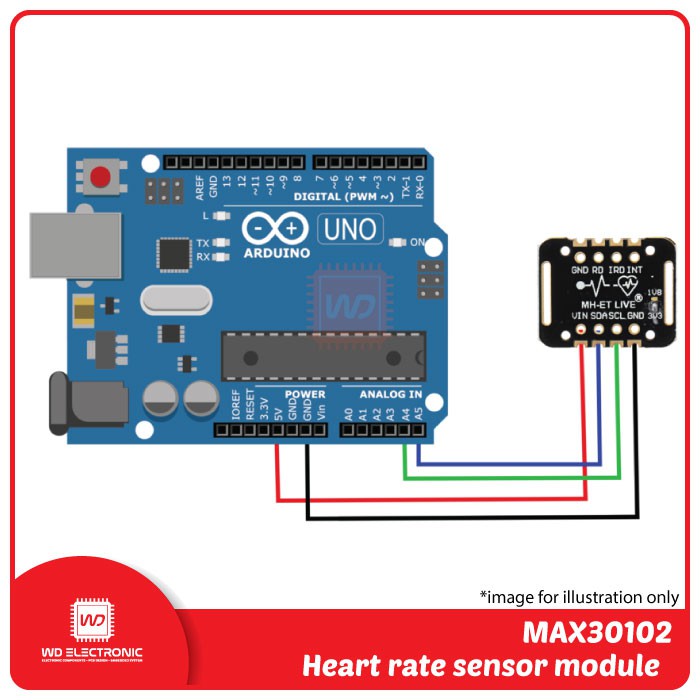

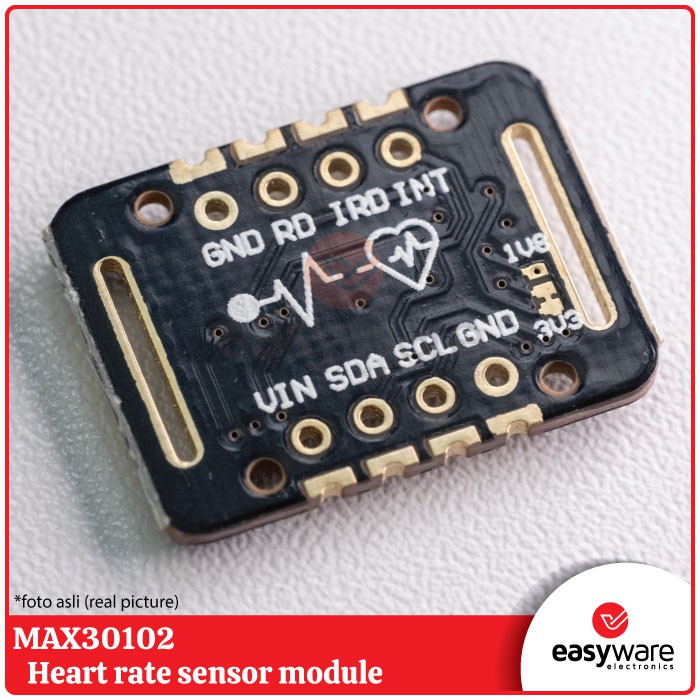

Interface:
- VIN: Main power input 1.8V-5V.
- 3-bit pad: I2C bus pull up level, you can choose 1.8V or 3.3V according to the pin master voltage.
- SCL: I2C bus clock
- SDA: Connected to the I2C bus data
- INT: MAX30102 chip interrupt pin
- RD: MAX30102 chip's RD LED grounding terminal, generally doesn't need to connect.
- IRD: MAX30102 chip's IR LED grounding terminal, generally doesn't need to connect.
- GND: grounding wire.
Package:
- 1x Heart Rate Sensor Module MAX30102
- 2x Sets of Pin Header
