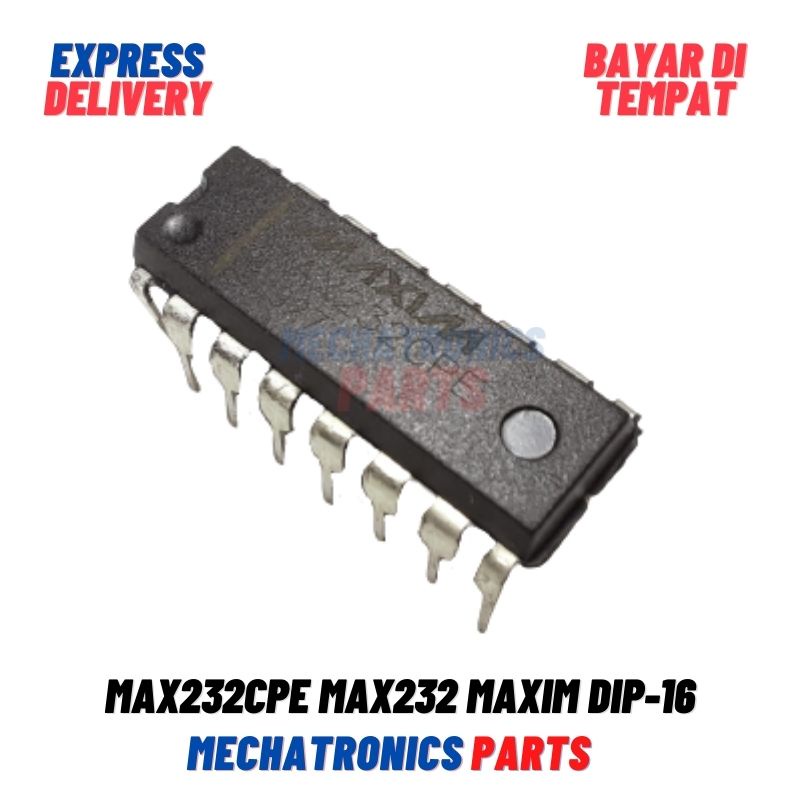

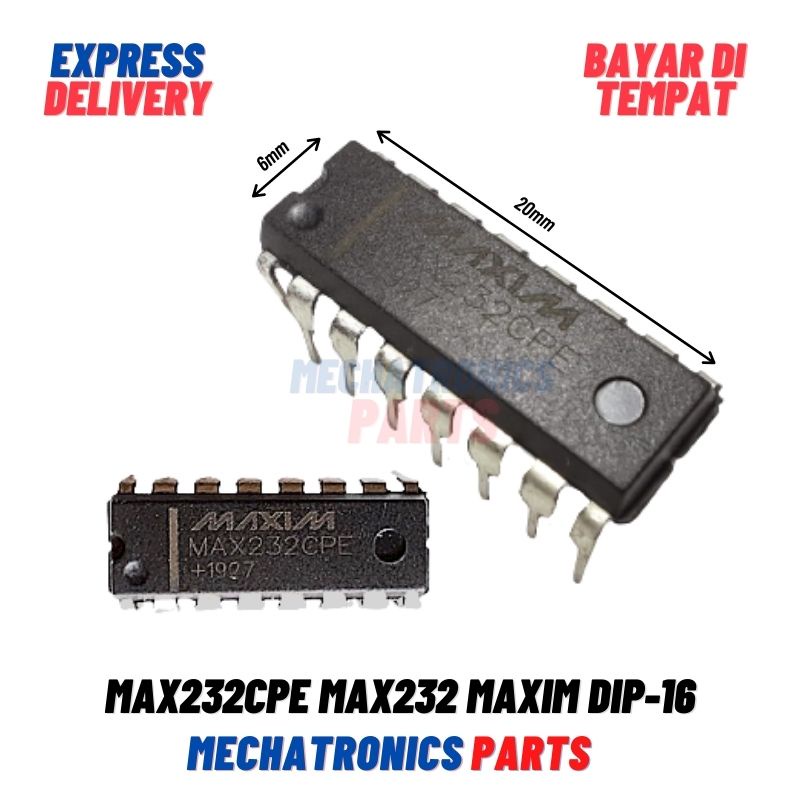

IC yang sering digunakan untuk komunikasi serial antara komputer dengan mikrokontroller. Silahkan di ORDER gan !!! :D
Description The MAX232 device is a dual driver/receiver that includes a capacitive voltage generator to supply TIA/EIA-232-F voltage levels from a single 5-V supply. Each receiver converts TIA/EIA-232-F inputs to 5-V TTL/CMOS levels. These receivers have a typical threshold of 1.3 V, a typical hysteresis of 0.5V, and can accept 30-V inputs. Each driver converts TTL/CMOS input levels into TIA/EIA-232-F levels.
Features - Meets or Exceeds TIA/EIA-232-F and ITU Recommendation V.28 - Operates From a Single 5-V Power Supply With 1.0-F Charge-Pump Capacitors - Operates up to 120 kbit/s - Two Drivers and Two Receivers - 30-V Input Levels - Low Supply Current: 8 mA Typical
- Upgrade With Improved ESD (15-kV HBM) and 0.1-F Charge-Pump Capacitors is Available With the MAX202 Device
