Specifications

Inputs: 2 electronically balanced‹

Impedance: > 10k ohms.

CMRR : >65dB 50Hz - 10kHz.

Outputs: 6 electronically balanced‹

Source Imp: < 60ohms

Min. Load: 600ohm

Max. Level: +20dBm into 600 ohm

Frequency Resp.:+½dB 20Hz-20kHz

Dyn Range:>110dB 20Hz-20k unwtd

Distortion:< .02%@1kHz,+18dBm

Maximum Delay: 650 mS

Min Step Size: 2.6 µS

Input Gain: +6dB to -40dB in 0.1dB

steps

Output Gain: +15dB to -40dB in

0.1dB steps and mute

Parametric Equalisation

8 per Input / 5 Sections per Output

Filter Gain: +15dB to -30dB in 0.1dB

steps.

Freq. Range: 20Hz - 20kHz, 1/36

octave steps. (368 positions)

Filter Q / BW: 0.4 to 128 / 2.5 to 0.008

(Sections switched to shelving

response)

Low frequency: 20Hz - 1kHz

High frequency: 1kHz - 20kHz

Shelf gains: ±15dB in 0.1dB steps.

High and Lowpass Filters

Filters: 1 of each per output.

Freq. Range HPF: 10Hz - 16kHz

1/36 octave steps.

Freq. Range LPF: 35Hz - 22kHz

1/36 octave steps.

Responses:

Bessel/Butterworth 12-18-24dB/Oct.

Linkwitz-Riley 24dB/Oct.

Limiters

Threshold: +22dBu to -10dBu

Attack time: 0.3 to 90 milliseconds

Release time: 2/4/8/16/32 x Attack

time

Display:2x20 character backlit LCD

Input meter: 2 x 6 point, -24dB to

digital clip.

Output meter: 6 x 6 point, -24dB to

+4dB into limit.

Connectors

Inputs: 3 pin female XLR

Outputs: 3 pin male XLR.

MIDI In: 5 pin DIN

External: 9 pin DEE connector (RS232)

RS485:3 pin male XLR (out) 3 pin male

XLR (in)

Power: 3 pin IEC

Power: 60 to 250V ±15% @

50/60Hz.

Consumption: < 20 watts.

Weight : 3.5kg. Net (4.8kg.

Shipping)

Size: 1.75"(1U) x 19" x 11.8"

(44 x 482 x 300mm) excluding

connectors

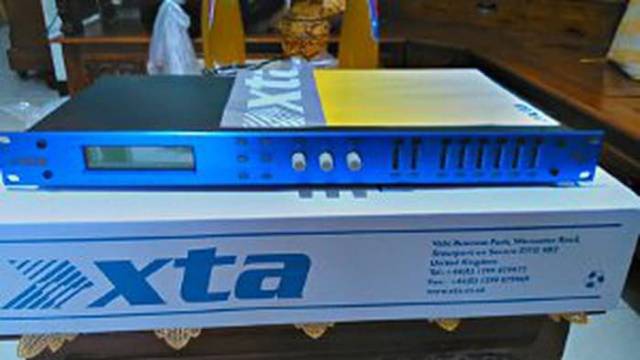

Gambar produk
