Detail Managemen Speaker Crossover ASHLEY CX 3400 CX3400 ORIGINAL With Limiters Super X PRO
TUNAS JAYA

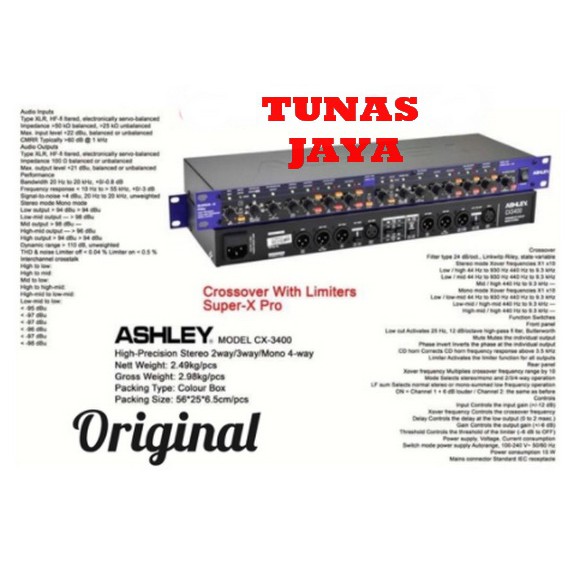

Crossover Ashley CX 3400 Original Ashley CX3400 With Limiters Super X Pro ASHLEY CK3400 Crossover Filter type 24 dB / oct., Linkwitz-Riley, state-variable Stereo mode Xover frequencies X1 x10 Low / high 44 Hz to 930 Hz 440 Hz to 9.3 kHz Low / mid 44 Hz to 930 Hz 440 Hz to 9.3 kHz Mid / high 440 Hz to 9.3 kHz - Mono mode Xover frequencies X1 x10 Low / low-mid 44 Hz to 930 Hz 440 Hz to 9.3 kHz Low-mid / high-mid 440 Hz to 9.3 kHz - ZHY C'6 o1 zZH O ybiu / pru-ybIH Function Switches Front panel Low cut Activates 25 Hz, 12 dB / octave high-pass fiter, Butterworth Mute Mutes the individual output Phase invert lInverts the phase at the individual output CD horn Corrects CD horn frequency response above 3.5 kHz Limiter Activates the limiter function for all outputs Rear panel Xover frequency Multiplies crossover frequency range by 10 Stereo / mono Selects Mode and 2/3/4-way operation LF sum Selects normal stereo or mono-summed low frequency operation ON = Channel 1 + 6 dB louder / Channel 2: the same as before Controls Input Controls the input gain (+/- 12 dB) Xover frequenc y Controls the crossover frequency Delay Controls the delay at the low output (0 to 2 msec.) Gain Controls the output gain (+/- 6 dB) Threshold Controls the threshold of the limiter (-6 dB to OFF) Power supply, Voltage , Current consumption Switch mode power supply Autorange, 100-240 V-50/60 Hz Power consumption 15 W Mains connector IEC receptacle GARANSI RESMI ASHLEY #CROSSOVER ASHLEY CX 3400 ORIGINAL WITH LIMITERS SUPER X PRO #ASHLEY CX 3400 SUPER X PRO # ASHLEY CX 3400 ORIGINAL #CROSSOVER ASHLEY
(Khusus untuk produk/barang yang berat/melebihi Volume/Quantity, Anda bisa dibantu kirim melalui Expedisi seperti: MEX Barlian, Cobra, Agung, Trans Perdana, Tere Mare, CMC, Abdi Mitra Nusantara, Buana, Andalas Permai dll. atau Expedisi pilihan Anda/Pembeli)
#Untuk quantity banyak harga dapat nego#
Kami juga melayani cash on delivery / COD melalui tiki dan jne DLL. Dan silahkan datang ke toko kami yang beralamat: di glodok city lantai dasar blok aks no 79 (sebelah ATM BCA) jakarta barat
