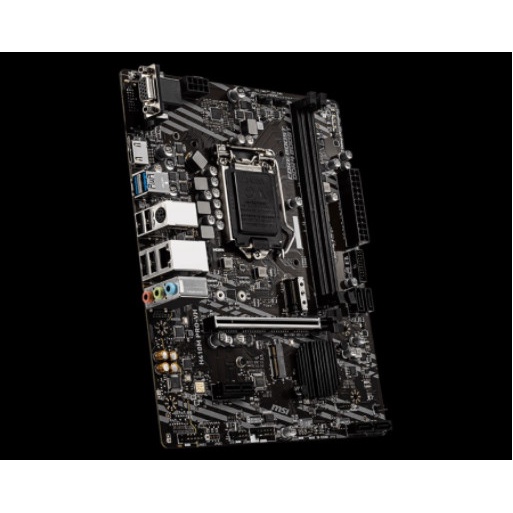

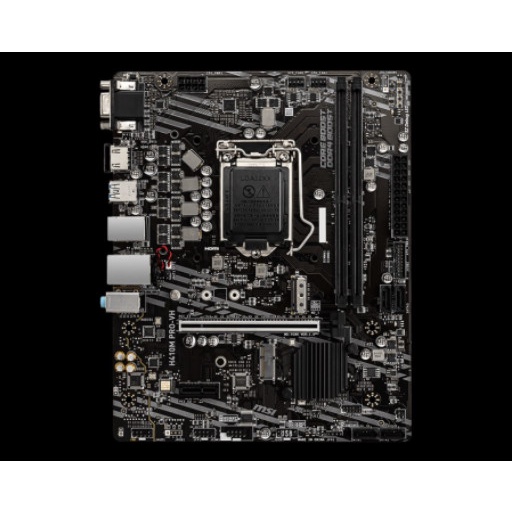

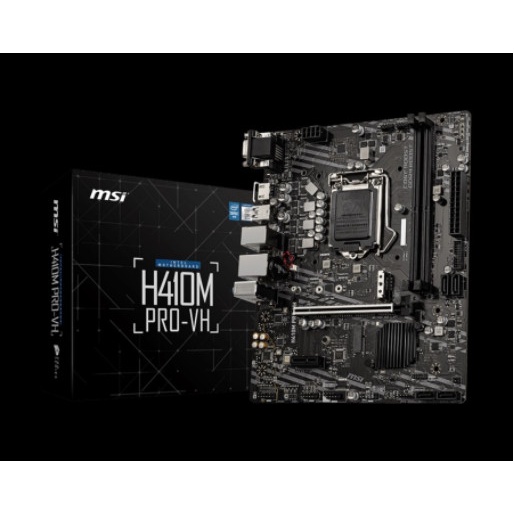

Mainboard MSI H410M Pro VH LGA1200 - MSI H410M-PRO VH LGA1200 Gen10

Detail Mainboard MSI H410M Pro VH LGA1200 - MSI H410M-PRO VH LGA1200 Gen10

MEMORY
2x DDR4 memory slots, support up to 64GB1
Intel® Core™ i7/ i9
Supports up to DDR4 2933 MHz
Intel® Core™ i5 and below
Supports up to DDR4 2666 MHz
Supports Dual-Channel mode
Supports non-ECC, un-buffered memory
Supports Intel® Extreme Memory Profile (XMP)

EXPANSION SLOT
1x PCIe 3.0 x16 slot (From CPU)
1x PCIe 3.0 x1 slot (From PCH)
1x M.2 slot with E key for WiFi module only

ONBOARD GRAPHICS
1x VGA port, supports a maximum resolution of 2048x1536 @50Hz, 2048x1280 @60Hz, 1920x1200 @60Hz
1x HDMI™ 1.4 port, supports a maximum resolution of 4096x2160 @30Hz

STORAGE
Intel® H410 Chipset
4x SATA 6Gb/s ports
1x M.2 slot (Key M)
M2_1 supports up to PCIe 3.0 x4 and SATA 6Gb/s, 2242/ 2260/ 2280 storage devices

INTERNAL CONNECTORS
1x 24-pin ATX main power connector
1x 8-pin ATX 12V power connector
4x SATA 6Gb/s connectors
1x USB 2.0 connector (supports additional 2 USB 2.0 ports)
1x USB 3.2 Gen1 5Gbps connector (supports additional 2 USB 3.2 Gen1 5Gbps ports)
1x 4-pin CPU fan connector
1x 4-pin system fan connector
1x Front panel audio connector
2x Front panel connectors
1x Serial port connector
1x TPM module connector
1x Chassis Intrusion connector
1x Clear CMOS jumper
4x EZ Debug LED

BACK PANEL PORTS
VGA
Keyboard / Mouse
LAN
HDMI
USB 3.2 Gen 1 5Gbps Type-A
USB 2.0
USB 2.0
Audio Connectors

DIMENSIONS
Mirco-ATX Form Factor
9.3 in. x 7.5 in. (23.6 cm x 19.0 cm)
