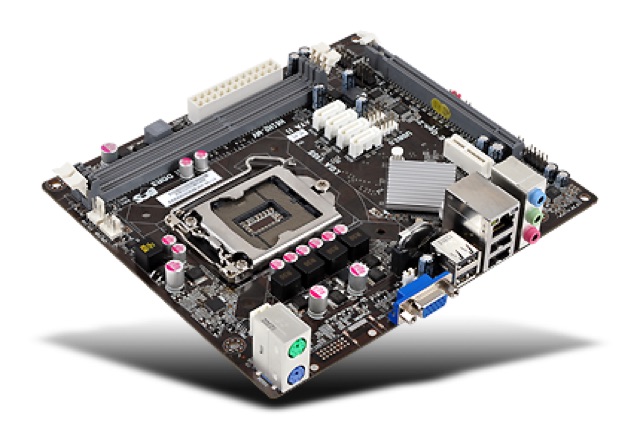

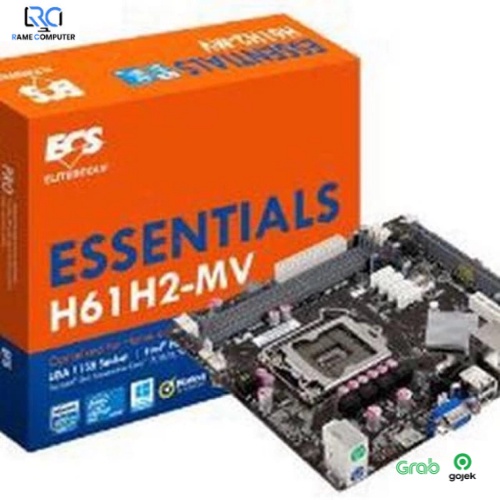

MAINBOARD / MOTHERBOARD H61 1155 DDR3 ECS H61H2-MV / H61H2 MV

Detail MAINBOARD / MOTHERBOARD H61 1155 DDR3 ECS H61H2-MV / H61H2 MV

Motherbroad Ecs H61H2 MV

Model : H61H2-MV
CPU Socket Type : LGA 1155
CPU Type : Core i7 / i5 / i3 / Pentium / Celeron (LGA1155)
Chipset : Intel H61
Onboard Video Chipset : Supported only by CPU with integrated graphic
Number of Memory Slots : 2240pin
Memory Standard : DDR3 1600*/1333/1066
(*Ivy Bridge)
Maximum Memory Supported :16GB
Channel Supported : Dual Channel
Expansion Slots :
PCI Express 3.0 x16 : 1 x PCI Express 3.0 x16
PCI Express x1 : 1 x PCI Express x1
Storage Devices
SATA 3Gb/s : 4 x SATA 3Gb/s
Onboard Audio Chipset : Realtek ALC662
Audio Channels : 6 Channels
Onboard LAN Chipset : Realtek 8111E
Max LAN Speed : 10/100/1000Mbps
Rear Panel Ports :
PS/2 : 2
Video Ports : D-Sub
USB 1.1/2.0 : 4 x USB 2.0
Audio Ports : 3 Ports
Internal I/O Connectors
Onboard USB : 4 x USB 2.0
Other Connectors:
1 X 24-pin ATX Power Supply connector
1 X 4-pin 12V Power connector
1 X 4-pin CPU_FAN connector
1 X 3-pin SYS_FAN connector
1 X Front panel audio header
1 X Speaker header
1 X CLR_CMOS header
1 X ME_UNLOCK header
Physical Spec
Form Factor : Micro ATX
Dimensions (W x L) : 7.68" x 6.69"
Power Pin : 24 Pin
