Mainboard Mobo Motherboard LGA 1150 H81 Gigabyte

Detail Mainboard Mobo Motherboard LGA 1150 H81 Gigabyte

Mainboard Gigabyte H81M-DS2 Soket Intel 1150
Gigabyte GA-H81M-DS2 (LGA1150,H81,DDR3,SATA3,USB3)

-Supports 4th Generation Intel Core processors
-GIGABYTE Ultra Durable 4 Plus Technology
-GIGABYTE UEFI DualBIOS
-USB 3.0 ports with GIGABYTE 3x USB power
-GIGABYTE On/Off Charge for USB devices
-LAN with high ESD Protection
-LPT, COM, D-SUB port on rear panel
-All solid capacitors design


CPU
-Support for Intel Core i7 processors/Intel Core i5 processors/Intel Core i3 processors/Intel Pentium processors/Intel Celeron processors in the LGA1150 package
-L3 cache varies with CPU

Chipset
Intel H81 Express Chipset

Memory
-2 x 1.5V DDR3 DIMM sockets supporting up to 16 GB of system memory
* Due to a Windows 32-bit operating system limitation, when more than 4 GB of physical memory is installed, the actual memory size displayed will be less than the size of the physical memory installed.
-Dual channel memory architecture
-Support for DDR3 1600/1333 MHz memory modules
-Support for non-ECC memory modules
-Support for Extreme Memory Profile (XMP) memory modules

Onboard Graphics
Integrated Graphics Processor - Intel HD Graphics support:
-1 x D-Sub port, supporting a maximum resolution of 1920x1200
-Maximum shared memory of 1 GB

Audio
-Realtek ALC887 codec
-High Definition Audio
-2/4/5.1/7.1-channel

LAN
Realtek GbE LAN chip (10/100/1000 Mbit)

Expansion Slots
-1 x PCI Express x16 slot, running at x16
-2 x PCI Express x1 slots
(The PCI Express slots conform to PCI Express 2.0 standard.)

Internal I/O Connectors
-1 x 24-pin ATX main power connector
-1 x 4-pin ATX 12V power connector
-2 x SATA 6Gb/s connectors
-2 x SATA 3Gb/s connectors
-1 x CPU fan header
-1 x system fan header
-1 x front panel header
-1 x front panel audio header
-2 x USB 2.0/1.1 headers
-1 x Clear CMOS jumper

#CATATAN
*Untuk kondisi barang second tapi masih oke dan normal
*Bukan barang servicean
*Barang pesanan dipacking aman menggunakan bubble wrap
*Barang yang di claim garansi hanya PENUKARAN BARANG!

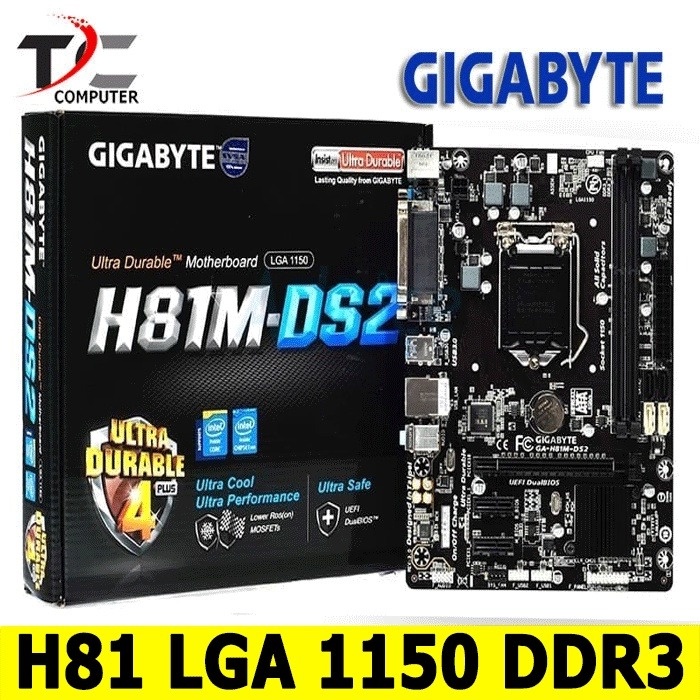

Gambar produk
