Mainboard Gigabyte H110M-DS2 LGA 1151 - Gigabyte H110MDs2 mATX untuk Intel Gen 6 dan 7

Detail Mainboard Gigabyte H110M-DS2 LGA 1151 - Gigabyte H110MDs2 mATX untuk Intel Gen 6 dan 7

GIGABYTE Ultra Durable ™ Motherboards

GIGABYTE 100 series motherboards support the latest 6th Generation Intel® Core™ processors, a 14nm desktop CPU which features improved performance, power efficiency and support for DDR4 memory, bringing cutting edge features and ultimate performance to your next PC build.

Supports 7th / 6th Generation Intel® Core™ Processors
Dual Channel DDR4, 2 DIMMs
Audio Noise Guard with High Quality Audio Capacitors
Realtek® GbE LAN with cFosSpeed Internet Accelerator Software
All new GIGABYTE™ APP Center, simple and easy use
Support Intel® Small Business Basics

Spesifikasi
CPU
Support for 7th/6th Generation Intel® Core™ i7 processors/Intel® Core™ i5 processors/Intel® Core™ i3 processors/Intel® Pentium® processors/Intel® Celeron® processors in the LGA1151 package
* For 7th Generation Intel® Core™ processors support need to update the latest BIOS.
L3 cache varies with CPU
(Please refer "CPU Support List" for more information.)
Chipset
Intel® H110 Express Chipset
Memory
2 x DDR4 DIMM sockets supporting up to 32 GB of system memory
* Due to a Windows 32-bit operating system limitation, when more than 4 GB of physical memory is installed, the actual memory size displayed will be less than the size of the physical memory installed.
Dual channel memory architecture
Support for DDR4 2400/2133 MHz memory modules
Support for ECC UDIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
Support for non-ECC UDIMM 1Rx8/2Rx8/1Rx16 memory modules
(Please refer "Memory Support List" for more information.)
Onboard Graphics
Integrated Graphics Processor - Intel® HD Graphics support:
1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz
Maximum shared memory of 1024 MB
Audio
Realtek® ALC887 codec
High Definition Audio
2/4/5.1/7.1-channel
* To configure 7.1-channel audio, you have to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver.
Support for S/PDIF Out

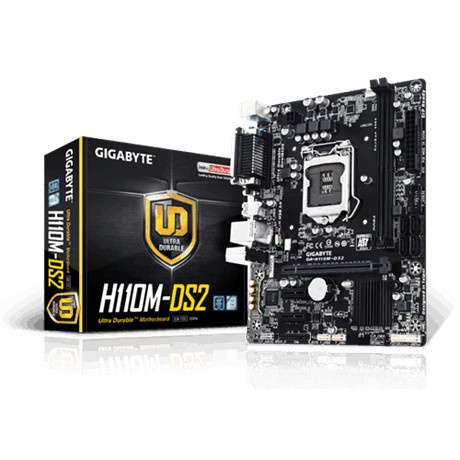

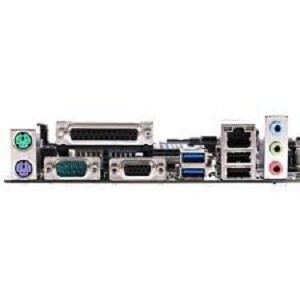

Gambar produk
