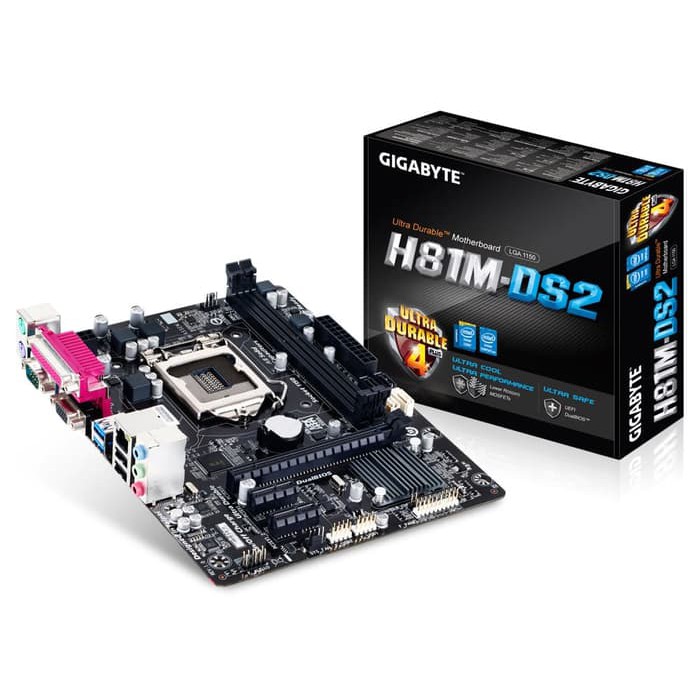

Mainboard Gigabyte GA-H81M-DS2 (Micro ATX,VGA1150)

Detail Mainboard Gigabyte GA-H81M-DS2 (Micro ATX,VGA1150)

CPU
- Support for Intel Core i7 processors/Intel Core i5 processors/Intel Core i3 processors/Intel Pentium processors/Intel Celeron processors in the LGA1150 package
L3 cache varies with CPU

Chipset
- Intel H81 Express Chipset

Memory
- 2 x 1.5V DDR3 DIMM sockets supporting up to 16 GB of system memory
* Due to a Windows 32-bit operating system limitation, when more than 4 GB of physical memory is installed, the actual memory size displayed will be less than the size of the physical memory installed.
Dual channel memory architecture
Support for DDR3 1600/1333 MHz memory modules
Support for non-ECC memory modules
Support for Extreme Memory Profile (XMP) memory modules

LAN
- Realtek GbE LAN chip (10/100/1000 Mbit)

Audio
- Realtek ALC887 codec
- High Definition Audio
- 2/4/5.1/7.1-channel
* To configure 7.1-channel audio, you have to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver.

Slot Tambahan
- 1 x PCI Express x16 slot, running at x16
- 2 x PCI Express x1 slots
(The PCI Express slots conform to PCI Express 2.0 standard.)

USB Chipset

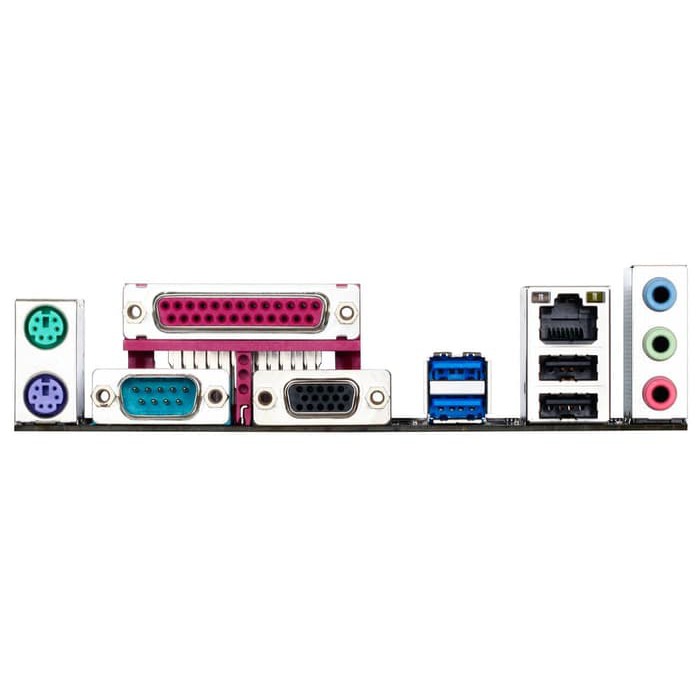

- Up to 2 USB 3.0/2.0 ports on the back panel
- Up to 6 USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers)

GARANSI 3 TAHUN

Gambar produk
