Mainboard Gigabyte GA H61M-DS2 Socket 1155

Detail Mainboard Gigabyte GA H61M-DS2 Socket 1155

Technical Detail

Form Factor Micro ATX
Chipset North Bridge Intel H61
Chipset South Bridge -
Integrated Graphics
Maximum RAM 16 GB
Native Memory Frequency 800, 1066, 1333 MHz
Overclocked Memory Frequency -
Audio Chipset Realtek ALC887
Audio Channels 7.1
LAN Chipset Atheros GbE
LAN Speed 10 / 100 / 1000 Mbps
Internal I/O 1. 1 x 24-pin ATX main power connector 2. 1 x 4-pin ATX 12V power connector 3. 4 x SATA 3Gb / s connectors 4. 1 x CPU fan header 5. 1 x system fan header 6. 1 x front panel header 7. 1 x front panel audio header 8. 2 x USB 2.0 / 1.1 headers 9. 1 x parallel port header 10. 1 x serial port header 11. 1 x clearing CMOS jumper
Rear I/O 1. 1 x PS / 2 keyboard port 2. 1 x PS / 2 mouse port 3. 1 x D-Sub port 4. 4 x USB 2.0 5. 1 x RJ-45 port 6. 3 x audio jacks
RAM Type DDR3
RAM Slot 2 Slot(s)
PCIe x16 Slots 1 Slot
SATA Ports 4 Port(s)
Storage Ports SATA 2 Port(s)
Audio Ports 3 Port(s)
LAN Ports -
Total PCIe Slots 2 Slot(s)
RAM Architechture Dual Channel
Socket Type LGA 1155

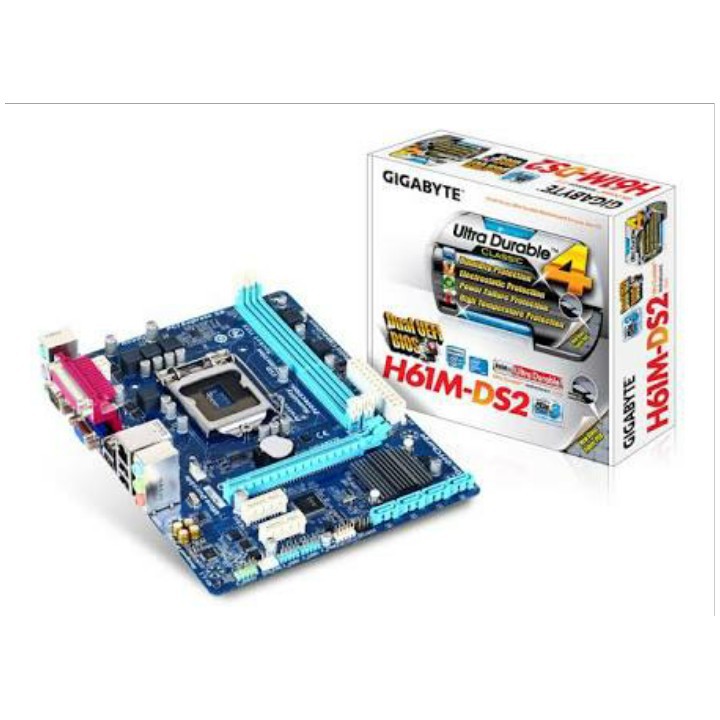

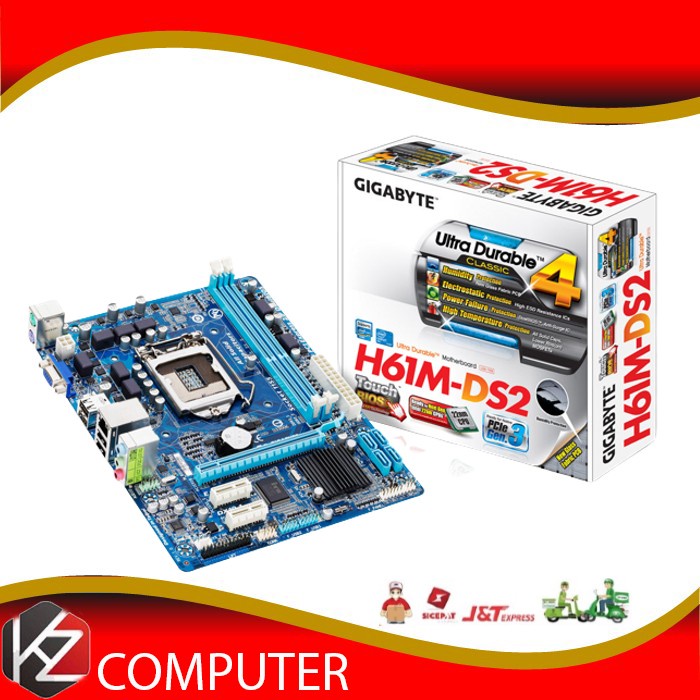

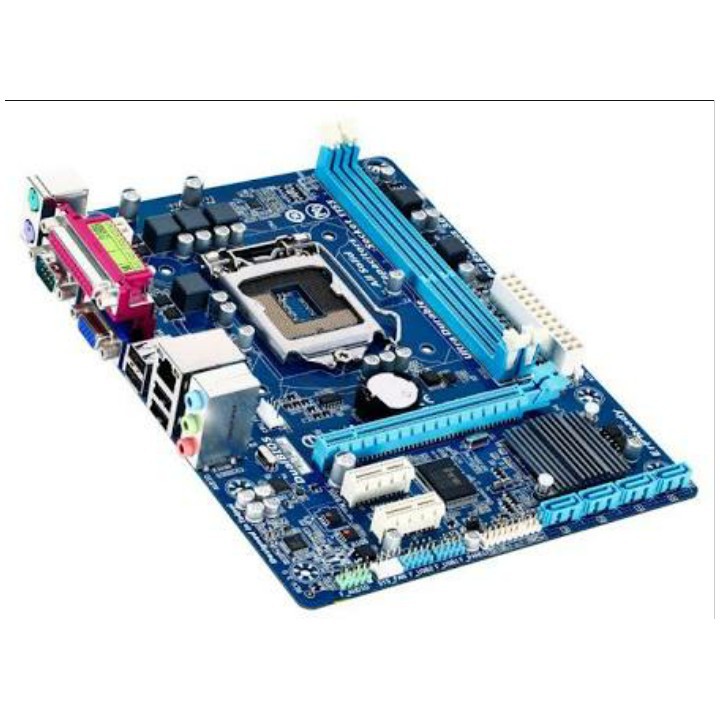

Gambar produk
