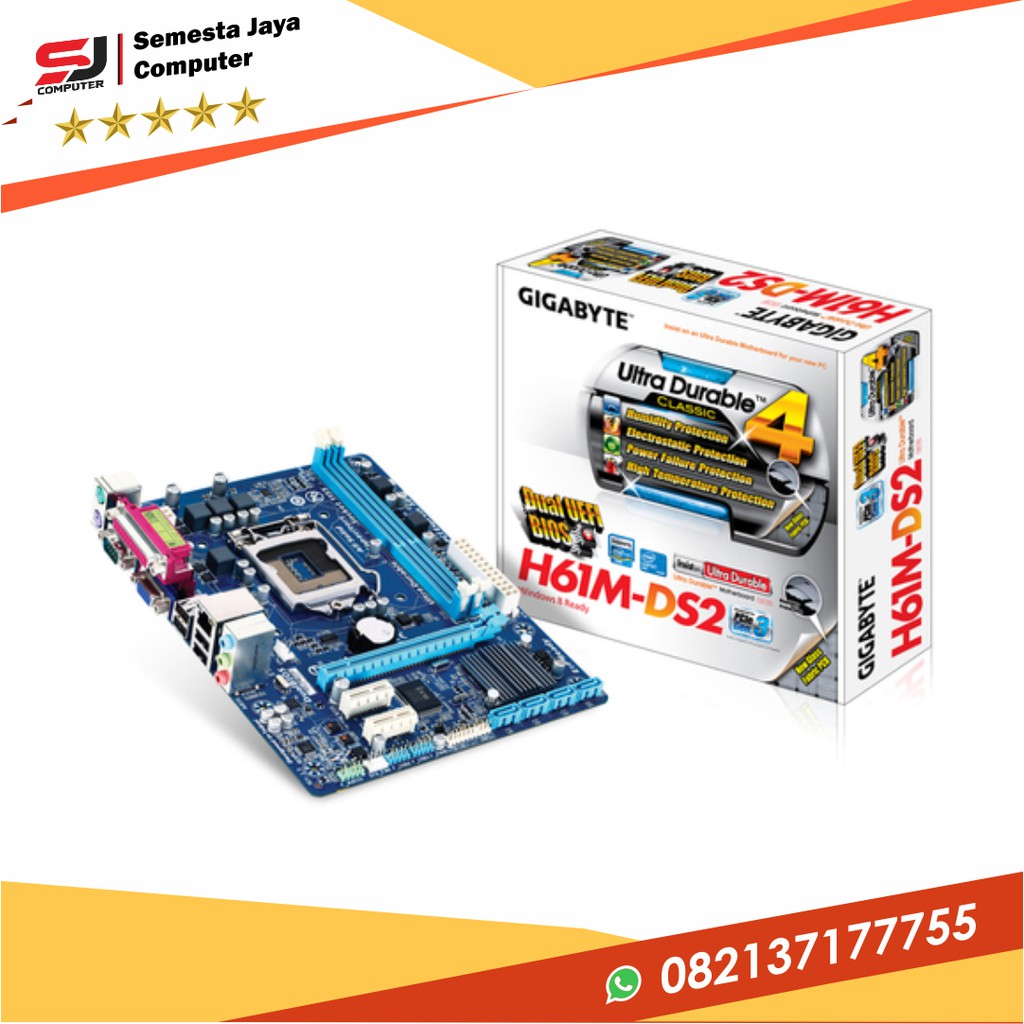

MAINBOARD GIGABYTE GA - H61 - DS2 (LGA1155, H61, DDR3)

Detail MAINBOARD GIGABYTE GA - H61 - DS2 (LGA1155, H61, DDR3)

Deskripsi Gigabyte GA-H61M-DS2 (LGA1155, H61, DDR3)
-All new design of Ultra Durable 4 classic

-Supports 3rd Gen. Intel 22nm CPUs and 2nd Gen. Intel Core CPUs (LGA1155 socket)

-Unique On/Off Charge delivers the best recharging capability to iPad, iPhone and iPod Touch

-Supports 3rd generation PCI-Express interface

-Industry's Leading All Solid Capacitor Design

-Touch BIOS delivers No Need for Reboot to more easily modify BIOS settings

-Enhanced Intel HD Graphics 2000/3000 integrated with the processor

-Innovative Smart 6 technology for smarter PC management

-DualBIOS protection with 3TB+ HDD boot up capability





CPU

-Support for Intel Core i7 processors/Intel Core i5 processors/ Intel Core i3 processors/Intel Pentium processors/Intel Celeron processors in the LGA1155 package

-L3 cache varies with CPU



Chipset

-Intel H61 Express Chipset



Memory

-2 x 1.5V DDR3 DIMM sockets supporting up to 16 GB of system memory

* Due to Windows 32-bit operating system limitation, when more than 4 GB of physical memory is installed, the actual memory size displayed will be less than 4 GB.

-Dual channel memory architecture

-Support for DDR3 1333/1066/800 MHz memory modules

-Support for non-ECC memory modules



Onboard Graphics

-Integrated Graphics Processor:

1 x D-Sub port



Audio

-Realtek ALC887 audio codec

-High Definition Audio

-2/4/5.1/7.1-channel



LAN

-1 x Atheros GbE LAN chip (10/100/1000 Mbit)



Expansion Slots

-1 x PCI Express x16 slot, running at x16

(The PCI Express x16 slot conforms to PCI Express 3.0 standard.)

* PCIE Gen.3 is dependent on CPU and expansion card compatibility.

-2 x PCI Express x1 slots

(The PCI Express x1 slots conform to PCI Express 2.0 standard.)



Storage Interface

-Chipset:

4 x SATA 3Gb/s connectors supporting up to 4 SATA 3Gb/s devices
