Mainboard Gigabyte B660M DS3H - mATX D4 LGA1700 - Gigabyte B660 M DS3H Intel Gen12

Merek: Gigabyte Technology | Lihat selengkapnya produk Komputer & Aksesoris dari Gigabyte Technology
Komputer & Aksesoris > Komponen Desktop & Laptop > Motherboard > Mainboard Gigabyte B660M DS3H - mATX D4 LGA1700 - Gigabyte B660 M DS3H Intel Gen12
  • Pengiriman Ekspres
  • Barang yang diperiksa
  • Bayar di tempat berlaku
  • Kualitas, Prestise
  • Pengembalian produk
  • Dukung pembuatan faktur

Detail Mainboard Gigabyte B660M DS3H - mATX D4 LGA1700 - Gigabyte B660 M DS3H Intel Gen12

CPU
- Intel® Socket LGA1700 for 12th Gen Intel® Core™, Pentium® Gold and Celeron® Processors

Chipset
- Intel B660

Memory
- 4 x DIMM, Max. 128GB, DDR4
3200/3000/2933/2666/2400/2133 MHz memory modules

Graphics
- 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz
- 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
* Support for HDMI 2.1 version and HDCP 2.3.
** Support native HDMI 2.1 TMDS compatible ports.
- 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz
* Support for DisplayPort 1.2 version and HDCP 2.3
- 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz
* Support for DisplayPort 1.2 version.

Expansion Slots
- 1 x PCI Express x16 slot, running at x16
(The PCIEX16 slot conforms to PCI Express 4.0 standard.)
- 2 x PCI Express x1 slots
(The PCIEX1 slots conform to PCI Express 3.0 standard.)

Storage
- CPU:
* 1 x M.2 connector (Socket 3, M key, type 2260/2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)
- Chipset:
* 1 x M.2 connector (Socket 3, M key, type 2260/2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB)
* 4 x SATA 6Gb/s connectors

Ethernet
- 1x Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)

Form Factor
- microATX
- 24.4cm x 24.4cm

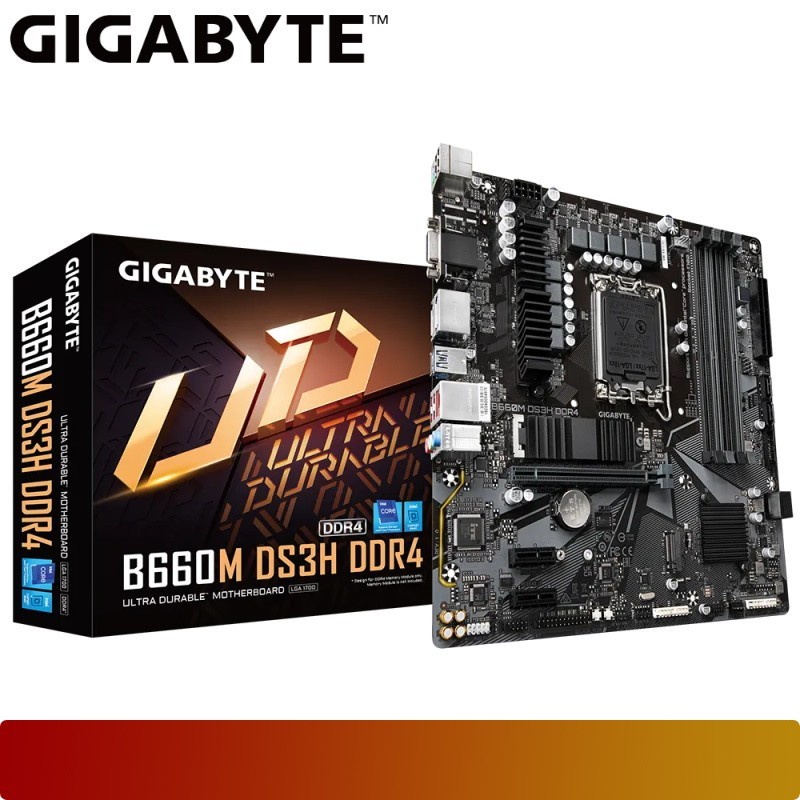

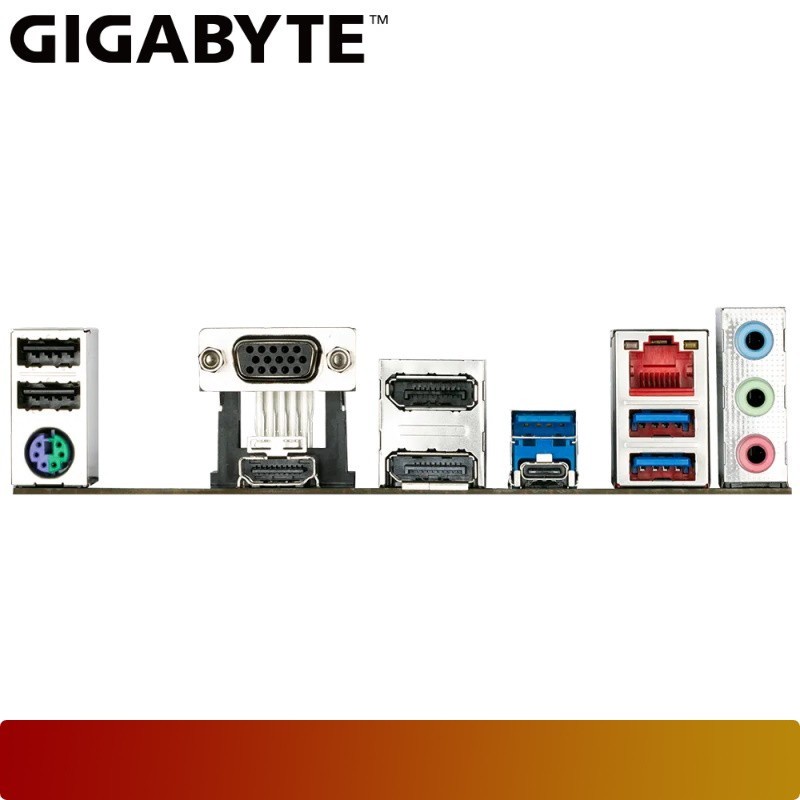

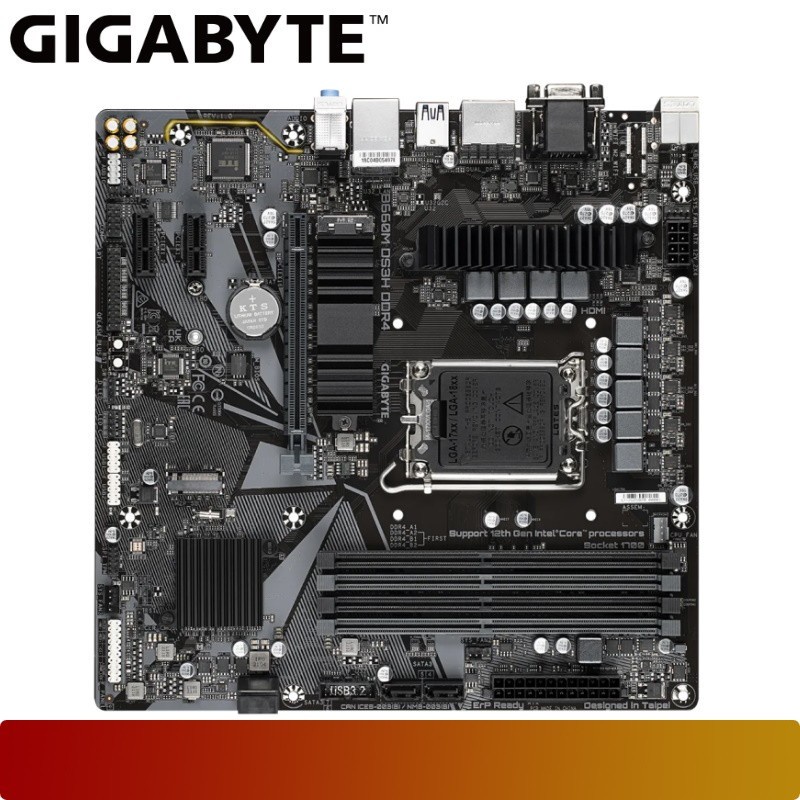

Gambar produk

Mainboard Gigabyte B660M DS3H - mATX D4 LGA1700 - Gigabyte B660 M DS3H Intel Gen12
Mainboard Gigabyte B660M DS3H - mATX D4 LGA1700 - Gigabyte B660 M DS3H Intel Gen12
Mainboard Gigabyte B660M DS3H - mATX D4 LGA1700 - Gigabyte B660 M DS3H Intel Gen12
Mainboard Gigabyte B660M DS3H - mATX D4 LGA1700 - Gigabyte B660 M DS3H Intel Gen12
Mainboard Gigabyte B660M DS3H - mATX D4 LGA1700 - Gigabyte B660 M DS3H Intel Gen12
Mainboard Gigabyte B660M DS3H - mATX D4 LGA1700 - Gigabyte B660 M DS3H Intel Gen12
