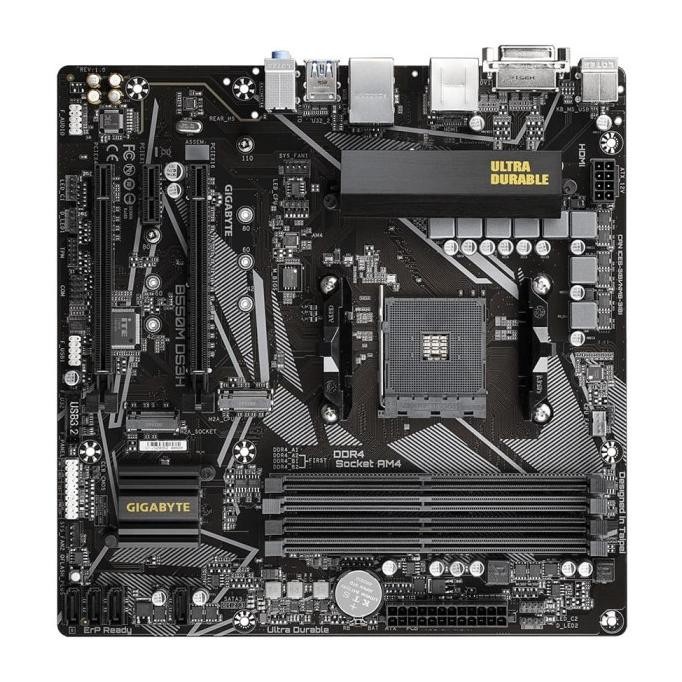

MAINBOARD GIGABYTE B550M-DS3H Socket AM4

Detail MAINBOARD GIGABYTE B550M-DS3H Socket AM4

AMD B550 Ultra Durable Motherboard with Pure Digital VRM Solution, PCIe 4.0 x16 Slot, Dual PCIe 4.0/3.0 M.2 Connectors, GIGABYTE 8118 Gaming LAN, Smart Fan 5 with FAN STOP, RGB FUSION 2.0, Q-Flash Plus

-Supports 3rd Gen AMD Ryzen™ Processors
-Dual Channel ECC/ Non-ECC Unbuffered DDR4, 4 DIMMs
-5+3 Phases Pure Digital VRM Solution with Low RDS(on) MOSFETs
-Ultra Durable™ PCIe 4.0 Ready x16 Slot
-Dual Ultra-Fast NVMe PCIe 4.0/3.0 M.2 Connectors
-High Quality Audio Capacitors and Audio Noise Guard for Ultimate Audio Quality
-GIGABYTE Exclusive 8118 Gaming GbE LAN with Bandwidth Management

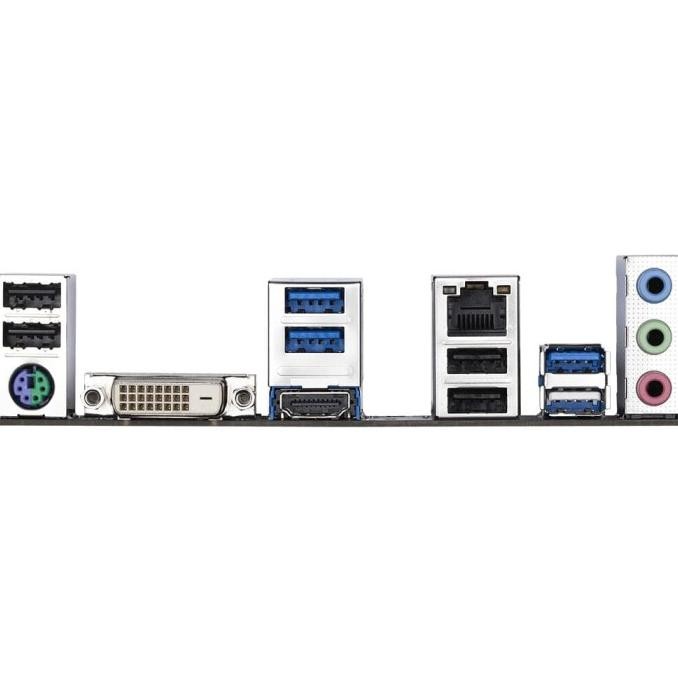

-Rear HDMI & DVI Support
-RGB FUSION 2.0 Supports Addressable LED & RGB LED Strips
-Smart Fan 5 Features Multiple Temperature Sensors , Hybrid Fan Headers with FAN STOP
-Q-Flash Plus Update BIOS without Installing the CPU, Memory and Graphics Card
-Anti-Sulfur Resistors Design


Memory
4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory
3rd Gen AMD Ryzen™ Processors:
Support for DDR4 4000(O.C.) / 3600(O.C.) / 3333(O.C.) /3200/2933/2667/2400/2133 MHz memory modules
New Generation AMD Ryzen™ with Radeon™ Graphics processors:
Support for DDR4 4733(O.C.) / 4600(O.C.) / 4400(O.C.) / 4000(O.C.) / 3600(O.C.) / 3333(O.C.) /3200/2933/2667/2400/2133 MHz memory modules
Dual channel memory architecture
Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for Extreme Memory Profile (XMP) memory modules

Onboard Graphics
Integrated in the 3rd Generation AMD Ryzen™ with Radeon™ Graphics processors:
1 x DVI-D port, supporting a maximum resolution of 1920x1200@60 Hz
* The DVI-D port does not support D-Sub connection by adapter.
1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
* Support for HDMI 2.1 version, HDCP 2.3, and HDR.
Maximum shared memory of 16 GB
