MAINBOARD G41 775 SUNBIO / MB / motherboard intel

Detail MAINBOARD G41 775 SUNBIO / MB / motherboard intel

CPU :
-Support LGA 775 CPU
- Supports FSB 533/800/1066/1333MHZ CPU
Chipset :
-Intel 82G41 + 82801GB
-Supports GMAX4500 graphics
Memory :
-2*40-pin DDRIII 800MHz/1066MHz memory
Bios : -AMI BIOS
I/O interface :
- 1x PS/2 Keyboard port
- 1x PS/2 mouse port
- 1x COM
- 1x VGA
- 4x USB 2.0, compatible with USB 1.1
- 1x RJ45
- 1x 3-in-1 Audio port (line in/line out/MIC In)
Onboard interface :
- 1x 24-pin ATX power connector
- 1x 4-pin ATX 12V power connector
- 2x USB connectors, can support 4*USB 2.0
- 1x F_AUDIO connector
- 1x F_PANEL connector
- 1x SPEAKER connector
- 2 x FAN connectors
- 4x Serial ATA connection port
- 1x 40-pin IDE port
Intergrated LAN :
-with 6-channel HD Audio Codec onboard
- provides front audio interface; provides front stereo mic interface
Intergrated LAN : - With 10/100Mbps LAN onboard
Expansion slot :
- 1x PCI Express x16 slot
- 1x PCI slot, conformed to PCI v2.3 spesification
Dimension : Micro-ATX architecture (16.8*21cm)

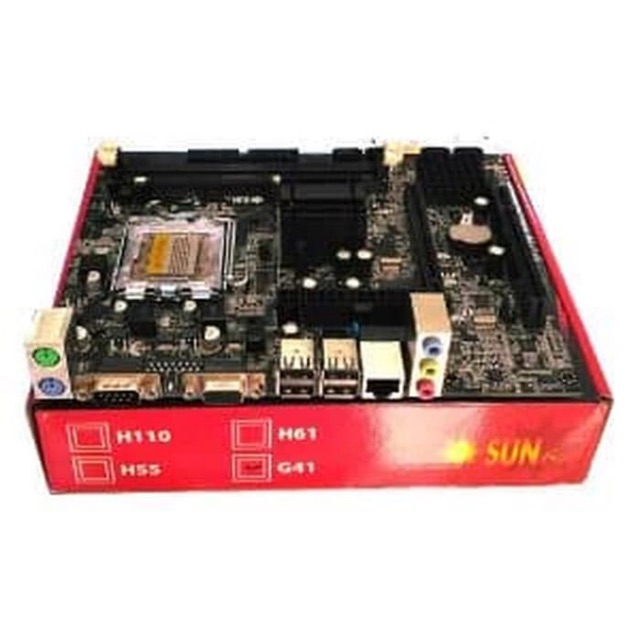

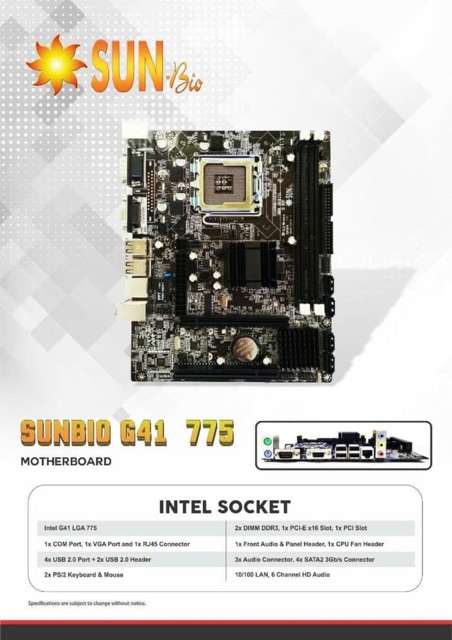

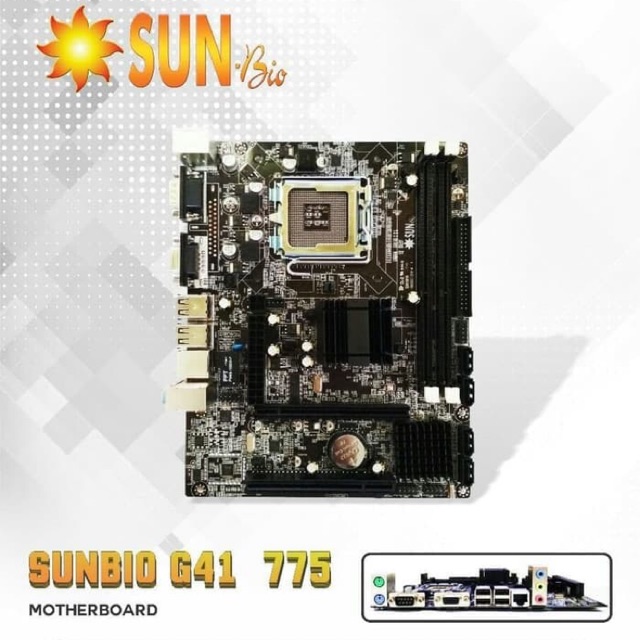

Gambar produk
