MAINBOARD BIOSTAR A88MQ

Detail MAINBOARD BIOSTAR A88MQ

GARANSI RESMI 72 BULAN

FITUR:
Supported Socket FM2+/FM2 processors AMD
A-series/ E2-series processor
-Supported AMD Mutil Core(x4,x2)
-AMD 100W processor support
-AMD A88X Chipset
-4 DIMM supported DDR3-2600(OC)/
2400(OC)/ 2133/ 1866/ 1600/ 1333/
1066/ 800
-AMD Dual Graphics Technology
-CPU / System Temperature Monitoring
-CPU / System Fan Monitoring
-Smart / Manual CPU Fan Control
-System Voltage Monitoring

Specification

Chipset

AMD A88X


CPU SUPPORT

AMD A10 Processor
AMD A8 Processor
AMD A6 Processor
AMD A4 Processor
AMD E2 Processor
AMD Athlon II X4 Processor
Maximum CPU TDP : 100Watt


MEMORY

Support Dual Channel DDR3 2600(OC)/
2400(OC)/2133/1866/1600/1333/1066/
800 MHz
4 x DDR3 DIMM Memory Slot
Max. Supports up to 64GB Memory


EXPANSION SLOT

1 x PCI-E x16 3.0 Slot
(supported by FM2+ CPU)
1 x PCI-E x1 2.0 Slot
1 x PCI Slot


STORAGE

6 x SATA3 Connector
Support SATA RAID: 0,1,5,10


USB

2 x USB 3.0 Port
1 x USB 3.0 Header
2 x USB 2.0 Port
2 x USB 2.0 Header


LAN

Realtek RTL8111G - 10/100/1000 Controller


MULTI GRAPHICS

-


INTEGRATED VIDEO

By CPU model
AMD Dual Graphics Technology
Supports DX11.1


CODEC

Realtek ALC662 6-Channel HD Audio

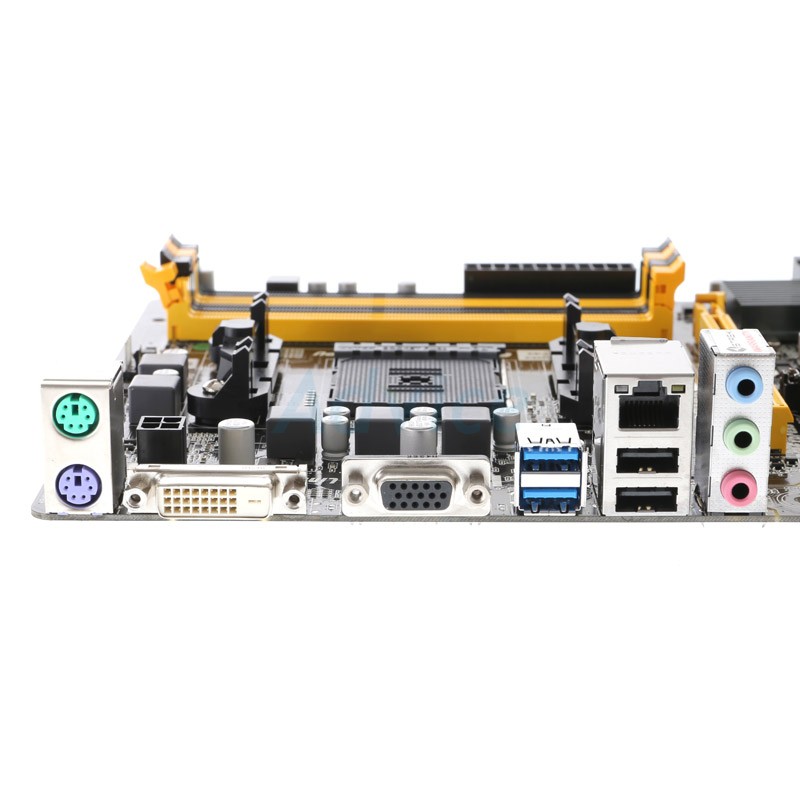

REAR I/O

1 x PS/2 Mouse
1 x PS/2 Keyboard
2 x USB 3.0 Port
2 x USB 2.0 Port
1 x DVI (Dual Link) Connector
1 x VGA Port
1 x RJ-45 Port
3 x Audio Connector


INTERNAL I/O

1 x USB 3.0 Header
2 x USB 2.0 Header

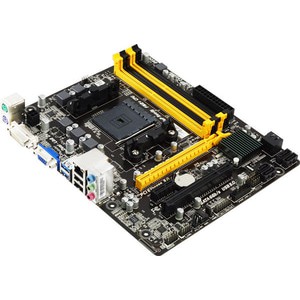

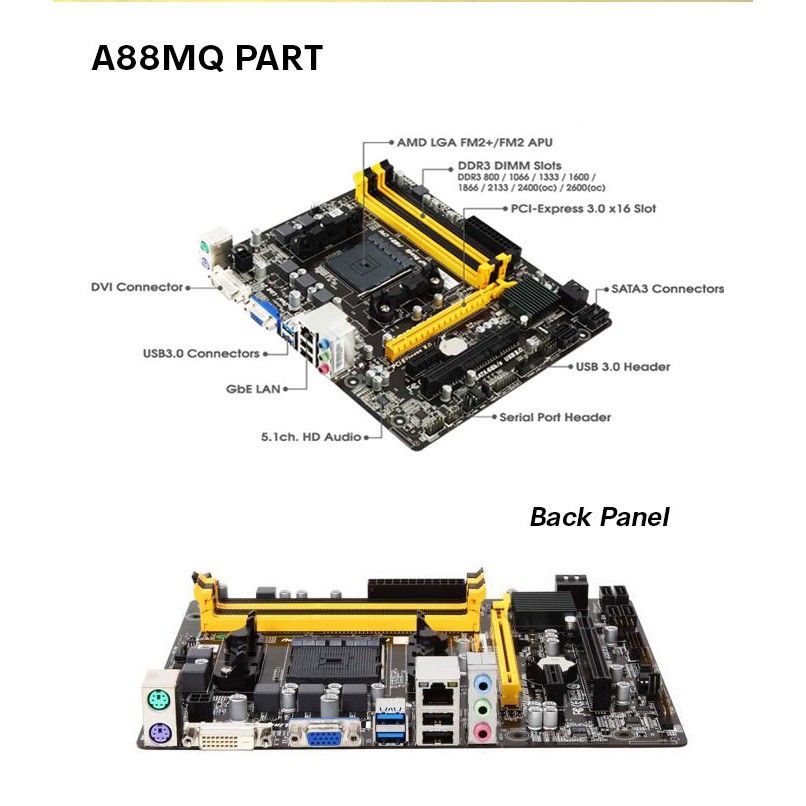

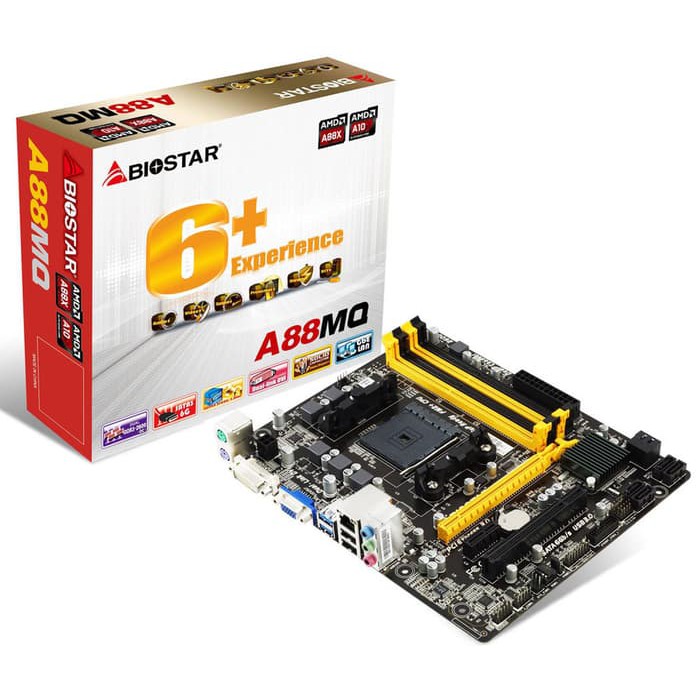

Gambar produk
