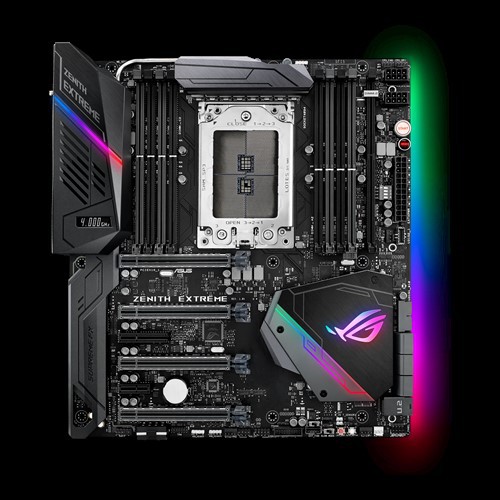

MAINBOARD AMD ASUS ROG ZENITH EXTREME (TR4)

Detail MAINBOARD AMD ASUS ROG ZENITH EXTREME (TR4)

Extra bubble wrap dan packing kayu untuk keamanan paket agan agar barang lebih aman pada saat proses pengiriman (REKOMENDASI)
- Packing Kayu
https://seller.shopee.co.id/portal/product/8001513386/
- Extra Bubble Wrap
https://seller.shopee.co.id/portal/product/5241237073/

==CPU==
AMD SocketTR4 for 1st and 2nd Gen AMD Ryzen™ Threadripper™ Processors
Supports CPU up to 16 cores

==Chipset==
AMD X399

==Memory==
AMD Ryzen™ Threadripper™ Processors
8 x DIMM, Max. 128GB, DDR4 3600(O.C.)/3200(O.C.)/2800(O.C.)/2666/2400/2133 MHz ECC and non-ECC, Un-buffered Memory *
Quad Channel Memory Architecture
* Hyper DIMM support is subject to the physical characteristics of individual CPUs.

==Multi-GPU Support==
AMD Ryzen™ 2nd Generation/Ryzen™ 1st Generation Processors
Supports NVIDIA® 4-Way SLI™ Technology
Supports AMD 4-Way CrossFireX Technology

==Expansion Slots==
AMD Ryzen™ Threadripper™ Processors
4 x PCIe 3.0 x16 (x16, x16/x16, x16/x8/x16, x16/x8/x16/x8) *1
AMD X399 chipset
1 x PCIe 2.0 x4
1 x PCIe 2.0 x1

==Storage==
AMD Ryzen™ Threadripper™ Processors :
2 x M.2 Socket 3, with M Key design, type 2242/2260/2280/22110 storage devices support (Supports both SATA & PCIE SSD)*2
1 x M.2 Socket 3, with M key, type 2242/2260/2280 storage devices support (both SATA & PCIE mode)
1 x U.2 port*3
AMD X399 chipset :
6 x SATA 6Gb/s port(s),
Support Raid 0, 1, 10

==LAN==
Intel® I211-AT, 1 x Gigabit LAN Controller(s)
Anti-surge LANGuard
ROG GameFirst IV

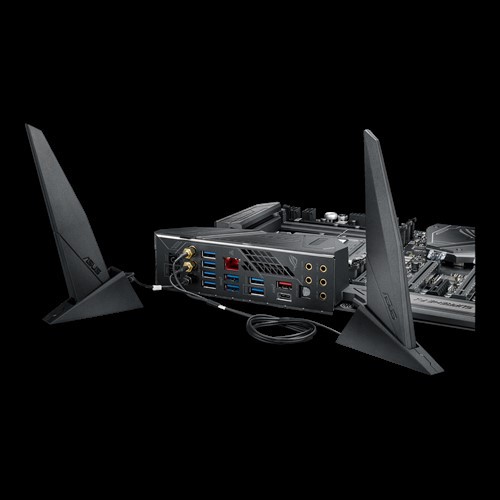

==Wireless Data Network==
Wi-Fi 802.11 a/b/g/n/ac+ WiGig 802.11ad*4
Supports MU-MIMO
Supports dual band frequency 2.4/5 GHz+ 60GHz
Up to 4600Mbps transfer speed

==Bluetooth==
Bluetooth V4.1

==Audio==
ROG SupremeFX 8-Channel High Definition Audio CODEC S1220
- Impedance sense for front and rear headphone outputs
- Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking
- High quality 120 dB SNR stereo playback output 113 dB SNR recording input
- ESS®SABRE9018Q2C DAC/AMP
- Supports up to 32-Bit/192kHz playback *5
Audio Feature :
- Optical S/PDIF out port(s) at back panel
- Sonic Radar III
- Sonic Studio III

==USB Ports==
AMD Ryzen™ Threadripper™ Processors :
8 x USB 3.1 Gen 1 port(s) (8 at back panel, blue)
AMD X399 chipset :
4 x USB 3.1 Gen 1 port(s) (4 at mid-board)
AMD X399 chipset :
2 x USB 2.0 port(s) (Type-A + USB Type-CTM, 2 at mid-board)
AMD X399 chipset :
1 x USB 3.1 Gen 2 front panel connector port(s)
ASMedia® USB 3.1 Gen 2 controller :
2 x USB port(s) (2 at back panel, , Type-A + USB Type-CTM)

Gambar produk
