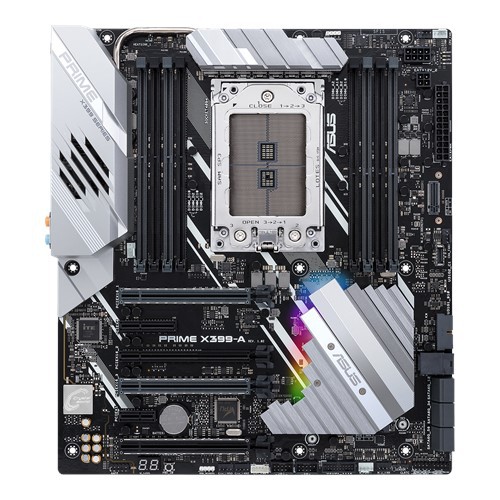

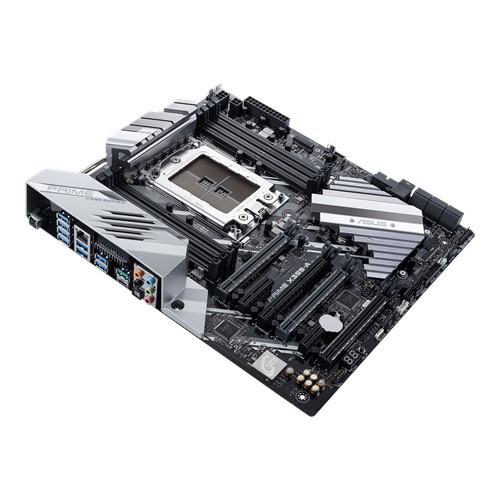

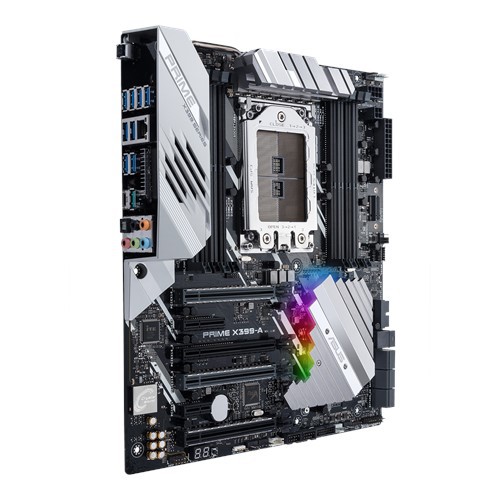

MAINBOARD AMD ASUS PRIME X399-A (TR4)

Detail MAINBOARD AMD ASUS PRIME X399-A (TR4)

Extra bubble wrap dan packing kayu untuk keamanan paket agan agar barang lebih aman pada saat proses pengiriman (REKOMENDASI)
- Packing Kayu
https://seller.shopee.co.id/portal/product/8001513386/
- Extra Bubble Wrap
https://seller.shopee.co.id/portal/product/5241237073/

==CPU==
AMD SocketTR4 for 1st and 2nd Gen AMD Ryzen™ Threadripper™ Processors

==Chipset==
AMD X399

==Memory==
AMD Ryzen™ Threadripper™ Processors
8 x DIMM, Max. 128GB, DDR4 3600(O.C.)/3466(O.C.)/3333(O.C.)/3200(O.C.)/3000(O.C.)/2800(O.C.)/2666/2400/2133 MHz ECC and non-ECC, Un-buffered Memory

==Multi-GPU Support==
Supports NVIDIA® Quad-GPU SLI® Technology
Supports NVIDIA® 3-Way SLI® Technology
Supports NVIDIA® 2-Way SLI® Technology
Supports AMD Quad-GPU CrossFireX™ Technology
Supports AMD 3-Way CrossFireX™ Technology
Supports AMD 2-Way CrossFireX Technology

==Expansion Slots==
AMD Ryzen™ Threadripper™ Processors
4 x PCIe 3.0 x16 (single@x16, dual@x16/x16, triple@x16/x16/x8 mode) *
AMD X399 chipset
1 x PCIe 2.0 x4 (max at x4 mode)
1 x PCIe 2.0 x1

==Storage==
AMD Ryzen™ Threadripper™ Processors :
1 x M.2 Socket 3, with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode)
1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode)
1 x U.2 port
AMD X399 chipset :
6 x SATA 6Gb/s port(s),
Support Raid 0, 1, 10

==LAN==
Intel® I211-AT
ASUS Turbo LAN Utility
ASUS LAN Guard

==Audio==
Realtek® S1220A 8-Channel High Definition Audio CODEC featuring Crystal Sound 3
- Impedance sense for front and rear headphone outputs
- Internal audio Amplifier to enhance the highest quality sound for headphone and speakers
- Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking
- High quality 120 dB (Line-out at rear) and 113 dB SNR recording input (Line-in)
Audio Feature :
- DTS Connect
- DTS Headphone:X
- Optical S/PDIF out port(s) at back panel
- Audio Shielding: Ensures precision analog/digital separation and greatly reduced multi-lateral interference
- Dedicated audio PCB layers: Separate layers for left and right channels to guard the quality of the sensitive audio signals
- Premium Japanese-made audio capacitors: Provide warm, natural and immersive sound with exceptional clarity and fidelity
- Unique de-pop circuit: Reduces start-up popping noise to audio outputs
- EMI protection cover to prevent electrical noise to affect the amplifier quality
Separate layer for left and right track, ensuring both sound deliver equal quality

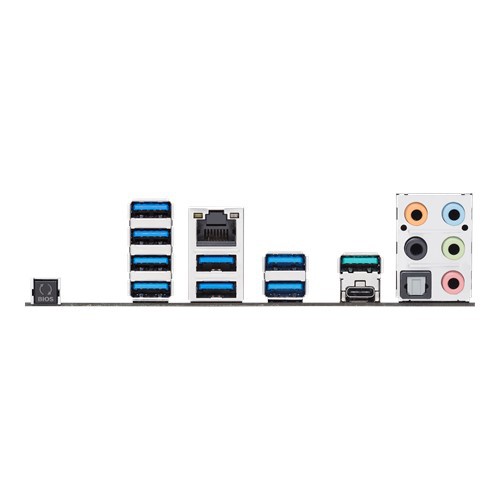

==USB Ports==
AMD Ryzen™ Threadripper™ Processors :
8 x USB 3.1 Gen 1 port(s) (8 at back panel, , Type-A)
AMD X399 chipset :
1 x USB 3.1 Gen 2 port(s) (1 at mid-board)
AMD X399 chipset :
4 x USB 3.1 Gen 1 port(s) (4 at mid-board)
AMD X399 chipset :
4 x USB 2.0 port(s) (4 at mid-board)
ASMedia® USB 3.2 Gen 2 controller :
2 x USB 3.1 Gen 2 port(s) (Type-A + USB Type-CTM)
