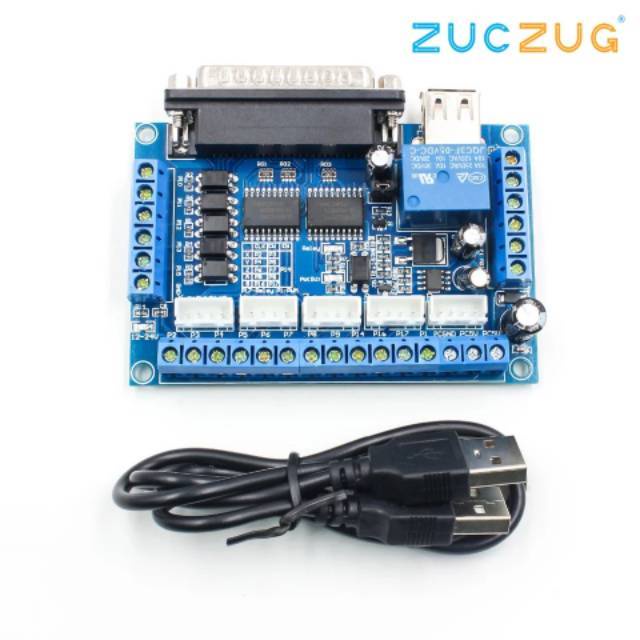

MACH3 5 AXIS CNC STEPPER MOTOR DRIVER BREAKOUT BOARD + KABEL

Detail MACH3 5 AXIS CNC STEPPER MOTOR DRIVER BREAKOUT BOARD + KABEL

Specifiacation:

Material: Plastic

Color: Blue

Size:92 x 61mm



Features:

This is a full-featured MACH3 interface board, with the following features:

1. Fully support MACH3 and other computer software to support parallel control.

2. USB power supply and external power supply phase separation, protection of computer security.

3. The external wide voltage input, 12-24V, and anti-reverse function.

4. All the input signal all by the optical lotus isolation, can be emergency stop, knife, limit, etc., to protect the computer security.

5. A relay output port, can control the spindle switch. The output port is P17 port.

6. All the way through the optocoupler isolation 0-10V analog voltage output, you can control the corresponding analog interface of the inverter, control the spindle speed. The output port is P1 port.

7. Open all 17 ports, can be connected with optocoupler drive, can control the 5-axis stepper motor.

8. P1 as a PWM output, can control with the optocoupler input spindle governor.

9. Can be connected to the total or total yang, the input level of 5V drive.

10. All printed port name, at a glance.



Application: Motor driver interface board





Package include:

1 x Interface board

1 x Data lines
