M543 Kit Power Amplifier Class D TPA3116D2 2x120W Stereo Subwoofer XH-M543

Detail M543 Kit Power Amplifier Class D TPA3116D2 2x120W Stereo Subwoofer XH-M543

Video perkenalan produk M543 Kit Power Amplifier Class D TPA3116D2 2x120W Stereo Subwoofer XH-M543. Sumber: Shopee.

********************************** M543 ( XH-M543) *************************
Deskripsi XH-M543 High Power TPA3116D2 2x120W Stereo Class-D Audio Amplifier Kit
Features:
Onboard front-facing IC to improve the input sensitivity, high-definition sound quality.
Name: TPA3116D2 Digital Amplifier Board
Model: XH-M543
Chip type: TPA3116D2
Working voltage: DC12-26V
Output power: 120*2W MAX, DC12V, 2*50W,DC24V, 2*120W
Signal to noise ratio: 100db
Channel: Dual channel stereo
Size: 92 x 68 x 16mm
100W 24V, maximum rated current is 4.2A
The maximum is 100W, please try not to adjust to 100W
100W is the maximum amount, the current will follow the actual transfer to change, there is no fixed current

Included:

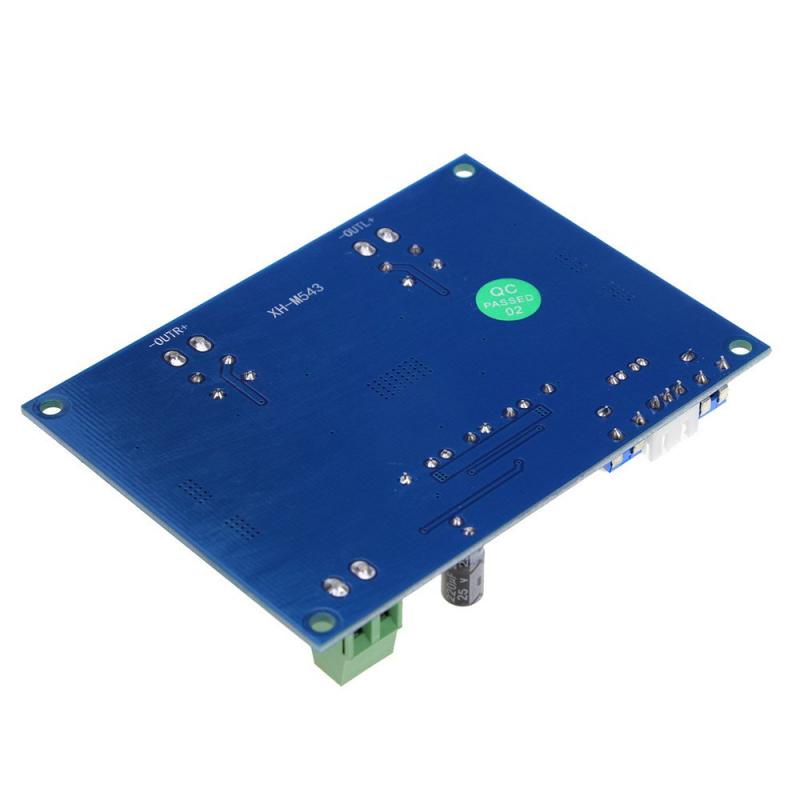

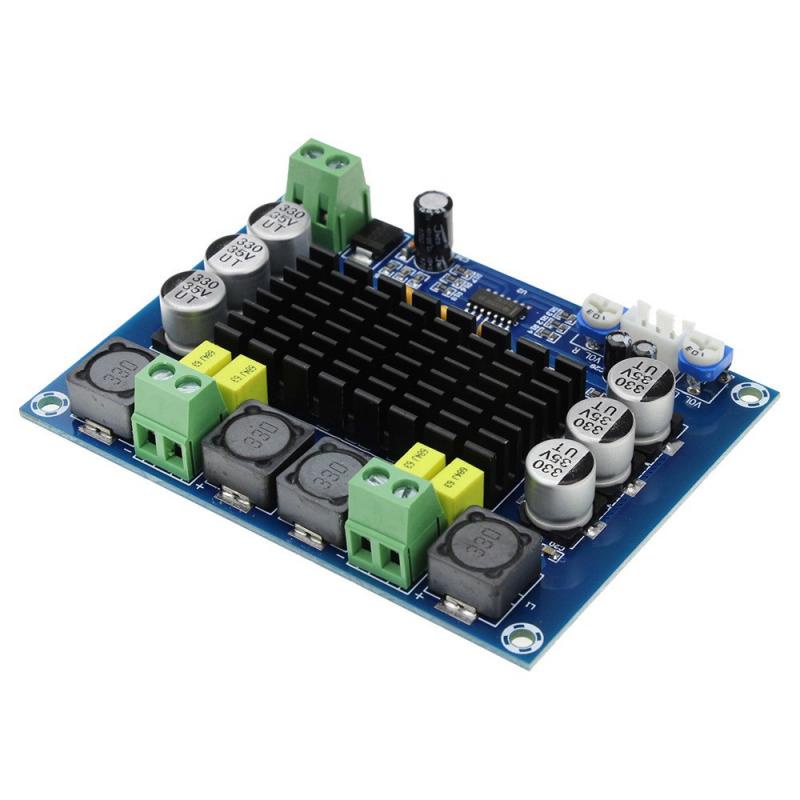

1 Board power TPA3116D2 2x120w stereo XH-M543.
3 in 1 kabel audio input.
************************************************************
