Detail M139 M543 M542 Kit Power Amplifier Class D TPA3116D2 2x50W+100W 2x120W Stereo Subwoofer XH-M139 XH-M543 XH-M542
Video perkenalan produk M139 M543 M542 Kit Power Amplifier Class D TPA3116D2 2x50W+100W 2x120W Stereo Subwoofer XH-M139 XH-M543 XH-M542. Sumber: Shopee.

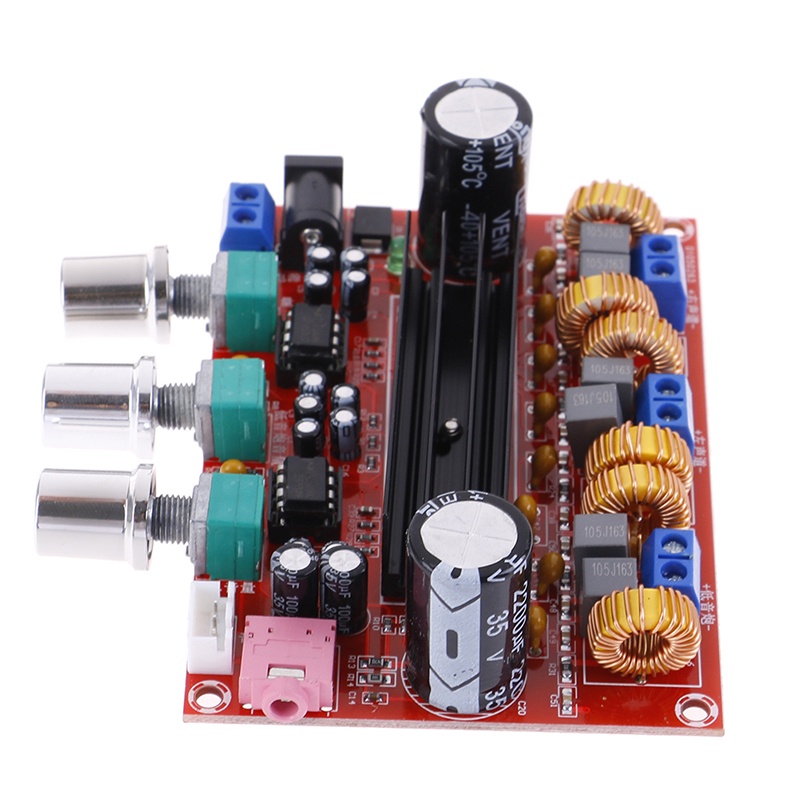

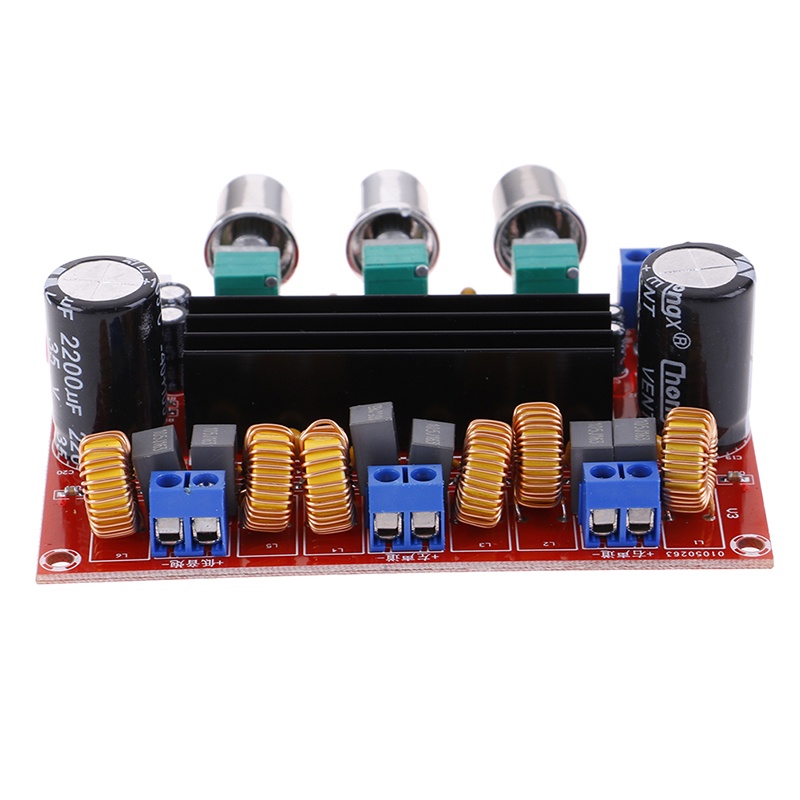

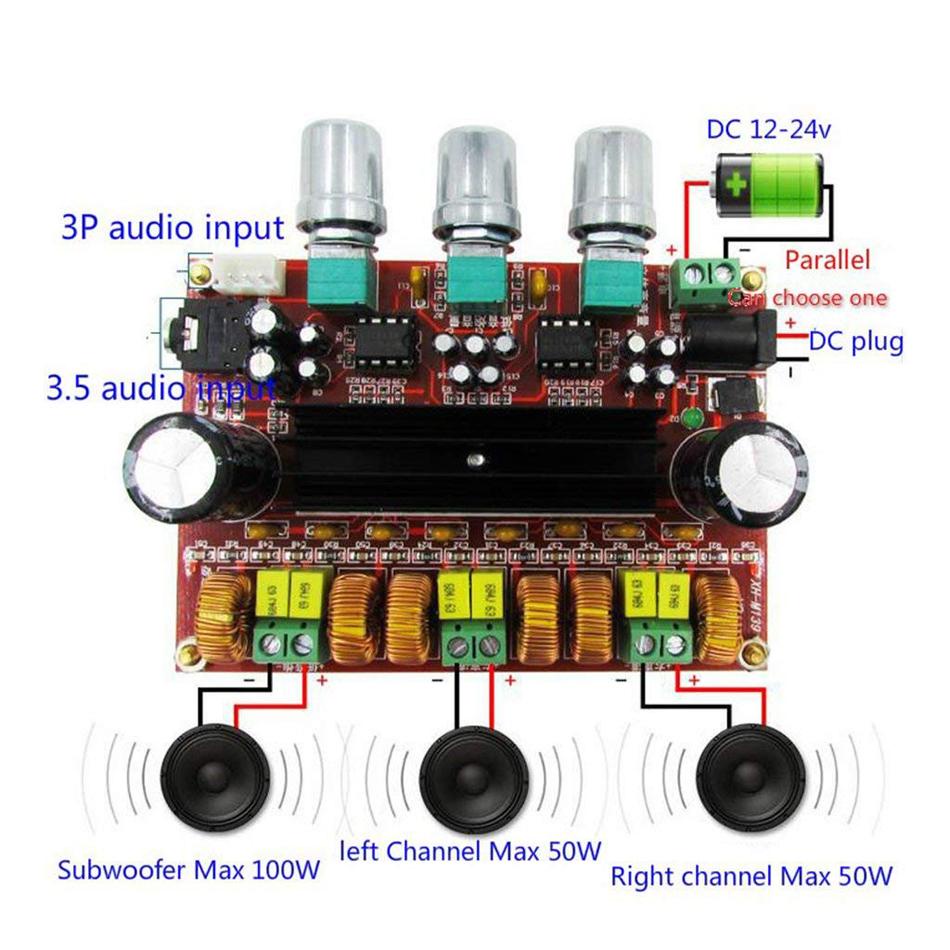

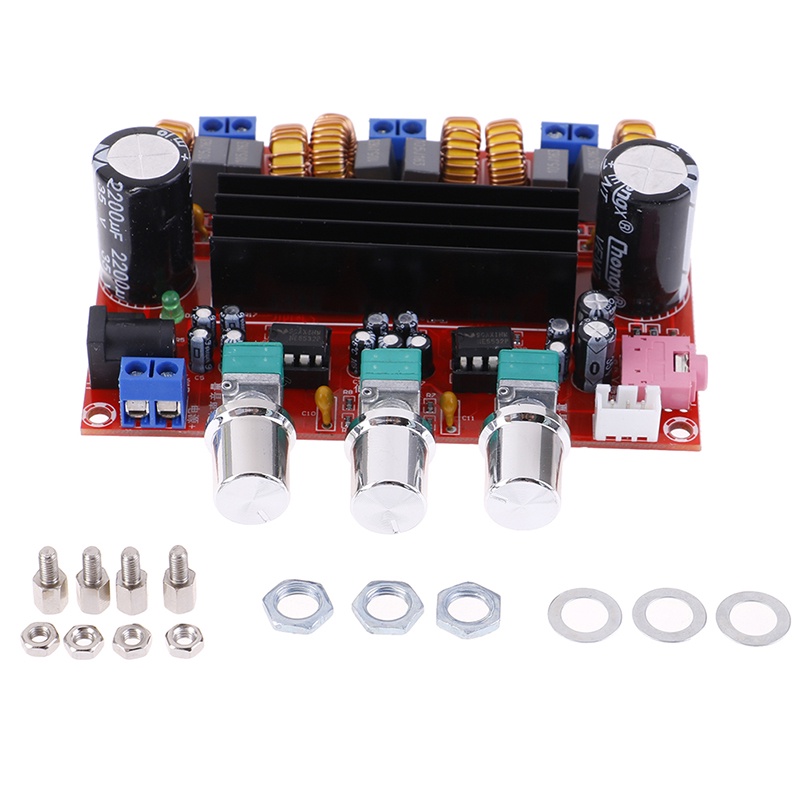

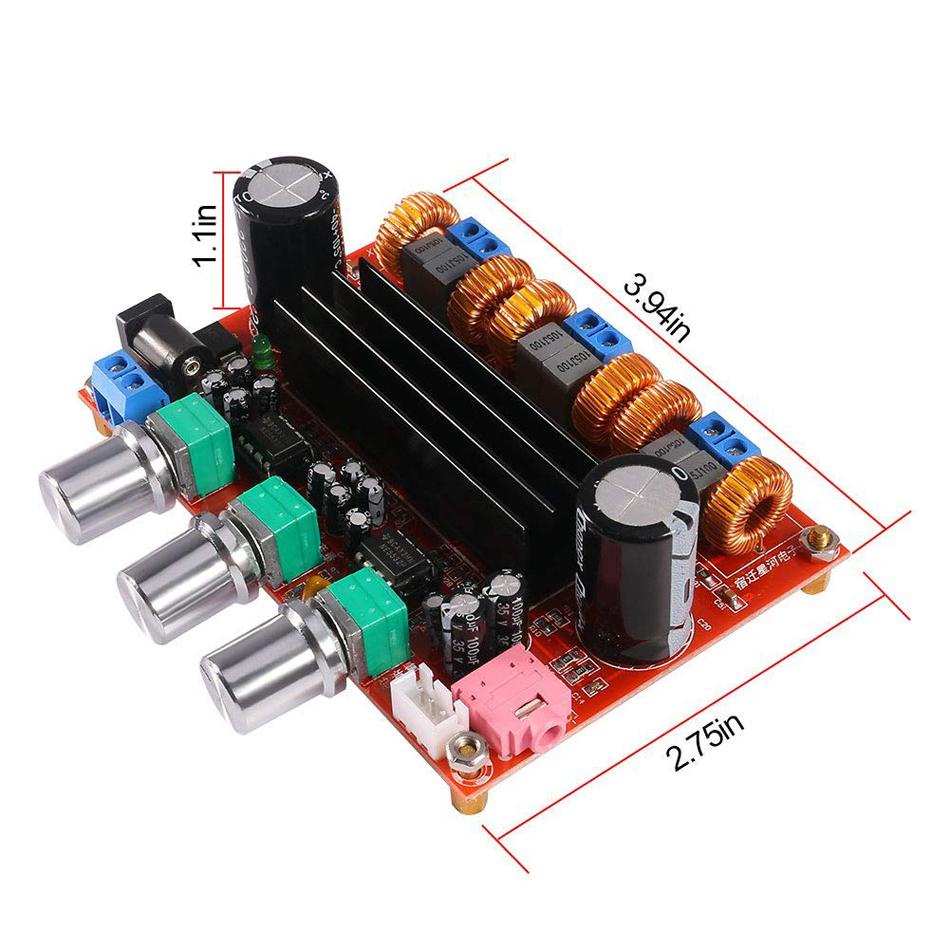

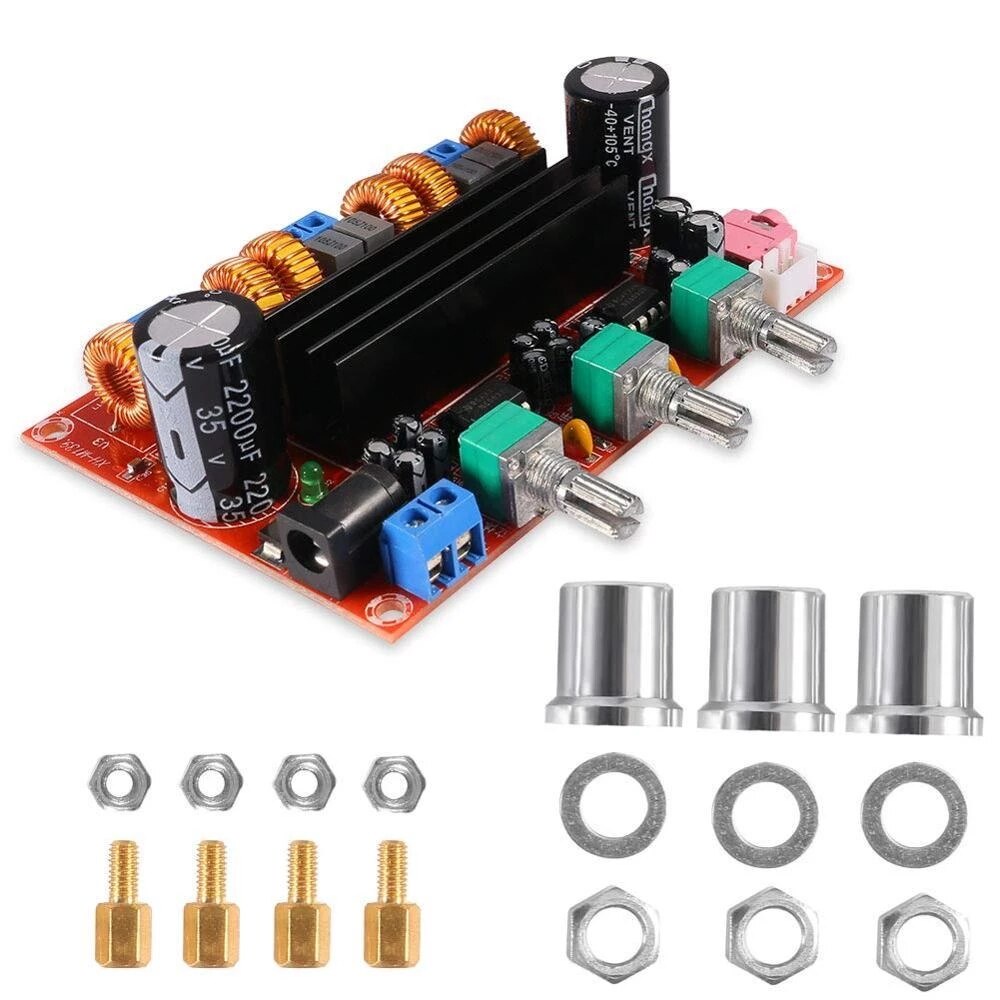

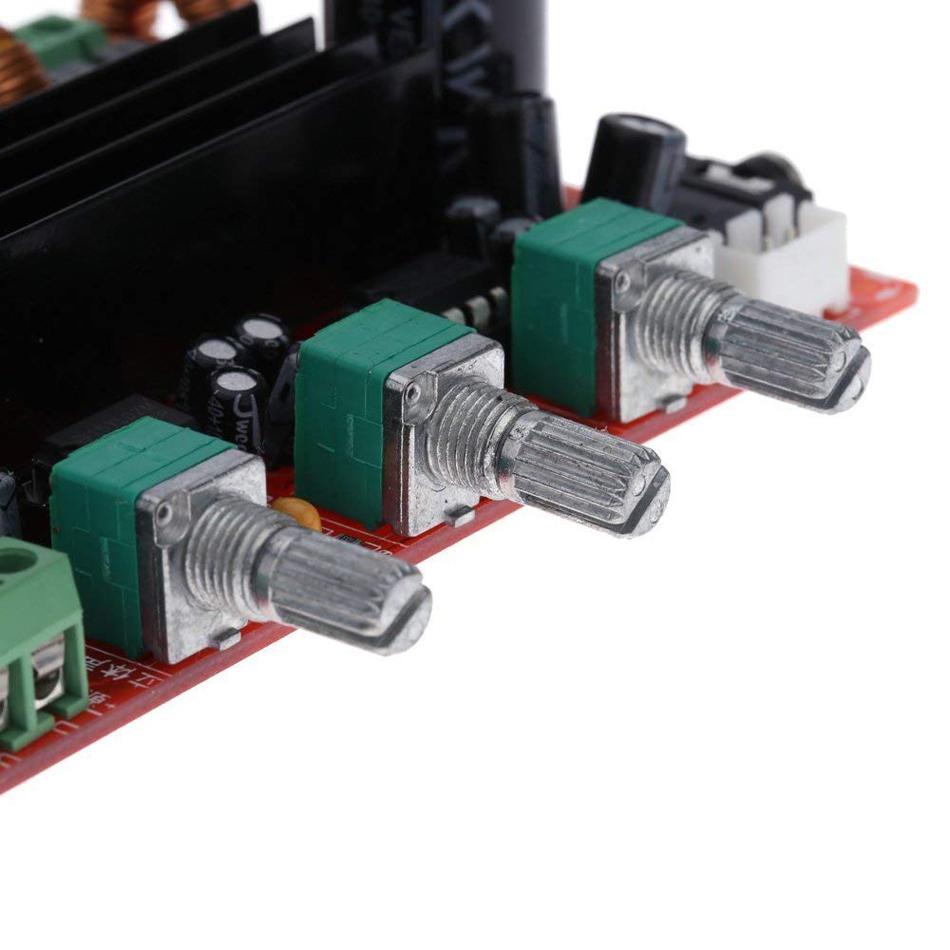

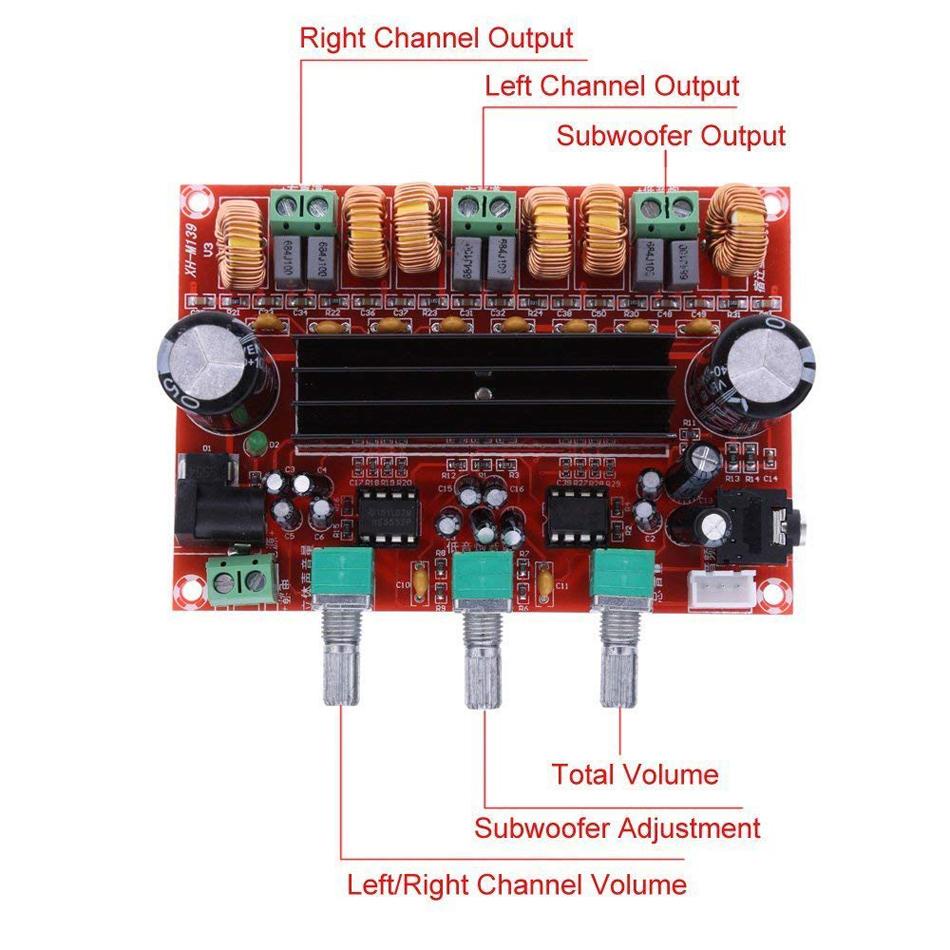

********************************** M139 ( XH-M139) ************************* Kit Power Amplifier Class D TPA3116D2 2.1 2x50W+100W TPA3116 D2 Spesifikasi : Channel Sound : Setereo. Chip : TPA3116D2. Potensio : Balance, Bass, Volume. Size : 100x70x30mm. Power Output Maximal : 2x50Watt Stereo + 1x100Watt Subwoofer Working Voltage : 12-24 Volt DC. Supply Power : 24 Volt Recomended Output. Current : 5 Ampere. Signal Noise Ratio : 100dB. Impedance : 4/6/8 Ohm(8 Ohm is the best). Pcb Color : Red. efficiency : 90%.
********************************** M543 ( XH-M543) ************************* Deskripsi XH-M543 High Power TPA3116D2 2x120W Stereo Class-D Audio Amplifier Kit Features: Onboard front-facing IC to improve the input sensitivity, high-definition sound quality. Name: TPA3116D2 Digital Amplifier Board Model: XH-M543 Chip type: TPA3116D2 Working voltage: DC12-26V Output power: 120*2W MAX, DC12V, 2*50W,DC24V, 2*120W Signal to noise ratio: 100db Channel: Dual channel stereo Size: 92 x 68 x 16mm 100W 24V, maximum rated current is 4.2A The maximum is 100W, please try not to adjust to 100W 100W is the maximum amount, the current will follow the actual transfer to change, there is no fixed current
Included: 1 Board power TPA3116D2 2x120w stereo XH-M543. 3 in 1 kabel audio input.
----------------------------------------------M542 ( XH-M542)---------------------------------------------------------------- Product Type: XH-M542 Amplifier chip: TPA3116D2 * 1 Power supply voltage: DC12-26V (recommended DC24V) Input current: >3A Output power: max 100W Speaker output: 2-8ohm Input impedance: 10KΩ Signal to noise ratio: 100dB Channel: Mono Size: 79 x 54mm
